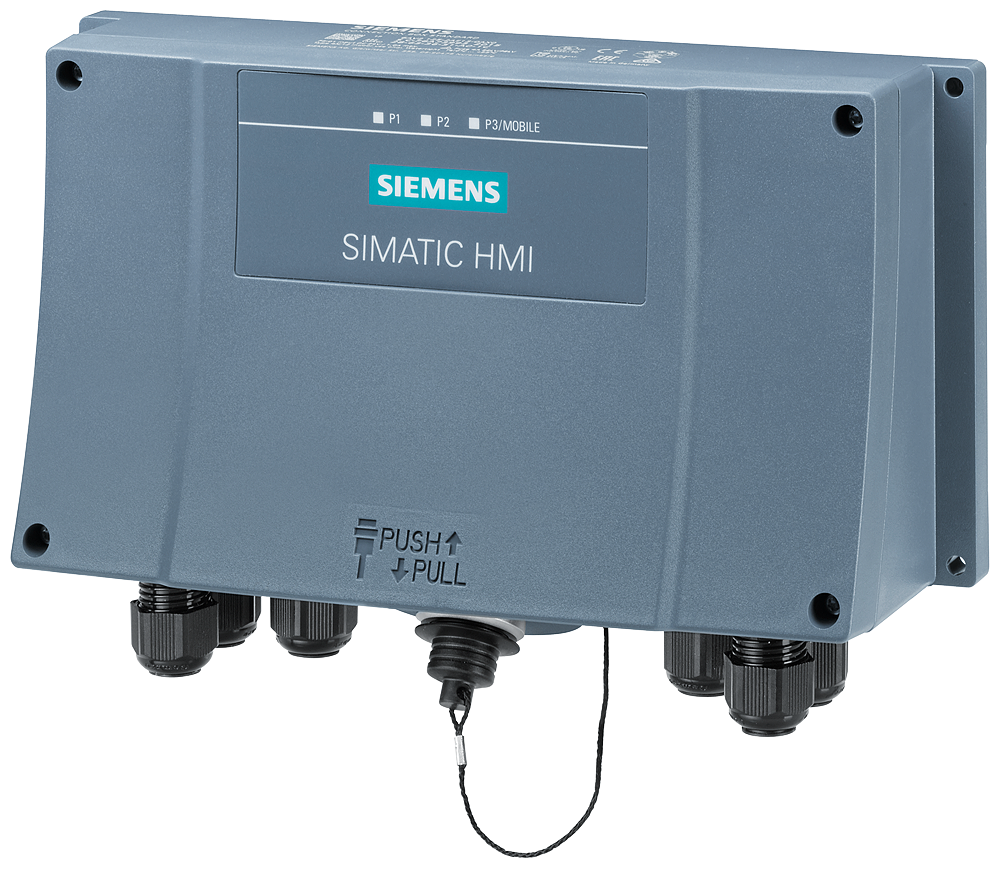

Siemens Connection Box Advanced for Mobile Panel

Siemens 6AV2125-2AE23-0AX0 Connection Box Advanced for Mobile Panel. Wall-mounted. Integrated switch MRP-Client.

Manufacturer part number (MPN)

6AV2125-2AE23-0AX0

EAN / GTIN

4047623405313

HS code

8536.90

Sales unit

pcs

Product type designation

Connection box

Product function — Web-based management

Yes

Safety evaluation through direct wiring — Reconnection without emergency stop circuit interruption

Yes

Safety evaluation through direct wiring — Reconnection with emergency stop circuit interruption

No

Safety evaluation through direct wiring — Monitoring the STOP button

Yes

Safety evaluation through direct wiring — Monitoring of emergency stop button

Yes

Safety evaluation through direct wiring — Monitoring of acknowledgement button

Yes

Safety evaluation via PROFIsafe — Reconnection without emergency stop circuit interruption

Yes

Safety evaluation via PROFIsafe — Reconnection with emergency stop circuit interruption

No

Safety evaluation via PROFIsafe — Monitoring the STOP button

Yes

Safety evaluation via PROFIsafe — Monitoring of emergency stop button

Yes

Safety evaluation via PROFIsafe — Monitoring of acknowledgement button

Yes

Wall mounting/direct mounting

Yes

Control cabinet installation

No

Type of supply voltage

DC

Rated value (DC)

24 V

Permissible range, lower limit (DC)

19.2 V

Permissible range, upper limit (DC)

28.8 V

Current consumption (rated value)

95 mA

Starting current inrush I²t

0.16 A²·s

Active power input, typ.

2.3 W

Number of industrial Ethernet interfaces

3

Number of PROFINET interfaces

3

Connection point identification

Yes

Industrial Ethernet — Industrial Ethernet status LED

3

PROFINET

Yes

IRT

Yes

AS-Interface

No

Protocols (Ethernet) — TCP/IP

Yes

Protocols (Ethernet) — DHCP

Yes

Protocols (Ethernet) — SNMP

Yes

Protocols (Ethernet) — DCP

Yes

Protocols (Ethernet) — LLDP

Yes

Further protocols — MODBUS

Yes

Further protocols — other bus systems

No

IP degree of protection

IP65

IP65 (all-round)

Yes

IP (at the front)

IP65

CE mark

Yes

KC approval

No; in preparation

Highest safety class achievable in safety mode — Performance level according to ISO 13849-1

PLe

Highest safety class achievable in safety mode — SIL acc. to IEC 61508

SIL 3

Marine approval — Germanischer Lloyd (GL)

Yes

Marine approval — American Bureau of Shipping (ABS)

Yes

Marine approval — Bureau Veritas (BV)

Yes

Marine approval — It Norske Veritas (DNV)

Yes

Marine approval — Korean Register of Shipping (KRS)

Yes

Marine approval — Lloyds Register of Shipping (LRS)

Yes

Marine approval — Nippon Kaiji Kyokai (Class NK)

Yes

Marine approval — Polski Rejestr Statkow (PRS)

No

Marine approval — Chinese Classification Society (CCS)

Yes

Ambient temperature during operation — min.

0 °C

Ambient temperature during operation — max.

55 °C

Relative humidity — Operation, max.

90 %

Configuration software — WinCC Comfort (TIA Portal)

Yes; Optional

Configuration software — WinCC Advanced (TIA Portal)

Yes; Optional

Configuration software — WinCC Professional (TIA Portal)

Yes; Optional

Dimensions — Width

230 mm

Dimensions — Height

151.3 mm

Dimensions — Depth

75.4 mm

HS Code

8536.90

• EAN 4047623405313
• SAP 1000722423
• Code 8343246
