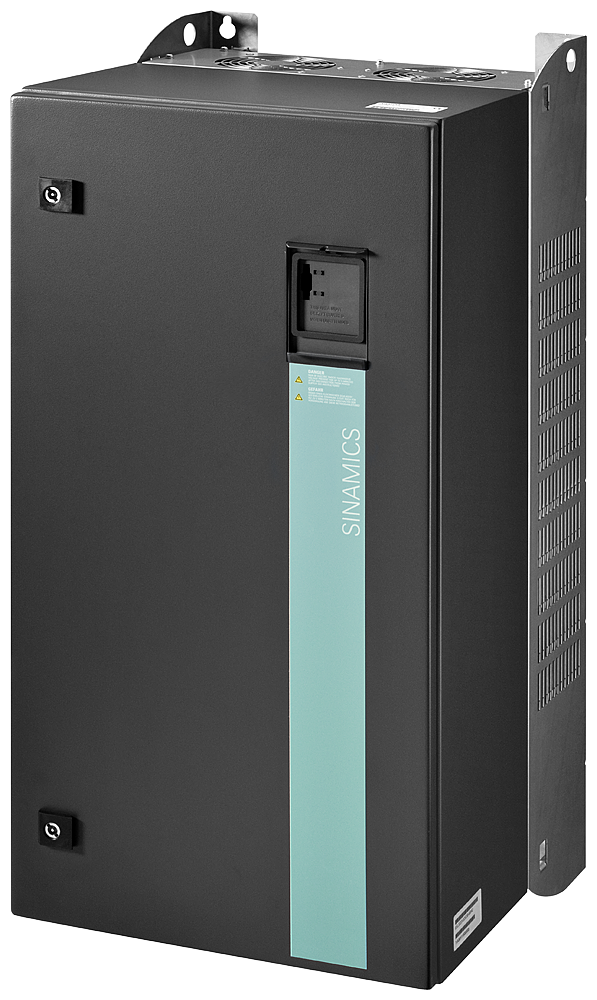

Siemens Sinamics G120P PM230 3AC 400V 90kW with integrated filter kl 6SL3223-0DE38-8AA0
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 6SL3223-0DE38-8AA0 Sinamics G120P PM230 3AC 400V 90kW with integrated filter kl. A.
Technical Specifications
- Manufacturer part number (MPN)
- 6SL3223-0DE38-8AA0
- EAN / GTIN
- 4019169458290
- Sales unit
- pcs
- Voltage
- 400 V
- Power
- 90 kW
- Width
- 410 mm
- Height
- 915 mm
- Depth
- 416 mm
- With control element
- No
- Degree of protection (IP)
- IP55
- Mains voltage
- 380–480 V
- Mains frequency
- 50/60 Hz
- 4-quadrant operation possible
- No
- Type of converter
- U converter
- Number of phases output
- 3
- Number of phases input
- 3
- Integrated breaking resistance
- No
- Application in industrial area permitted
- Yes
- Application in domestic- and commercial area permitted
- No
- Max. output frequency
- 550 Hz
- Max. output at linear load at rated output voltage
- 75 kW
- Max. output at quadratic load at rated output voltage
- 90 kW
- Relative symmetric net voltage tolerance
- -10 %
- Relative symmetric net frequency tolerance
- 5 %
- Nominal output current I2N
- 178 A
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4019169458290
- SAP 1000321380
- Code 8848433
Product Documentation
More from Siemens
Siemens
Siemens Overgangspl
3TX6426-0A
Siemens
Siemens 3RB3123-4PE0 SIRIUS 3RB3 Solid-State Overload Relay with Ground-Fault Detection — 1 – 4 A, Size S0, Spring-Loaded Terminals
Siemens
Siemens SENTRON 3VA9484-0JC23 — Cu/Al box terminal, 4-Pole, 2×70–300 mm², 3VA23 / 3VA24
Siemens

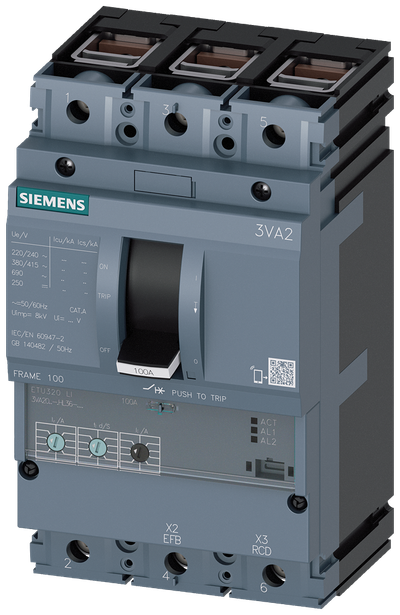

Siemens MCCB_3VA20_3P_55KA_ETU320_,LI,IN=63A,IR=25A-63A,II=1,5-12XIN,terminal Cu
3VA2063-5HL36-0AA0
Siemens

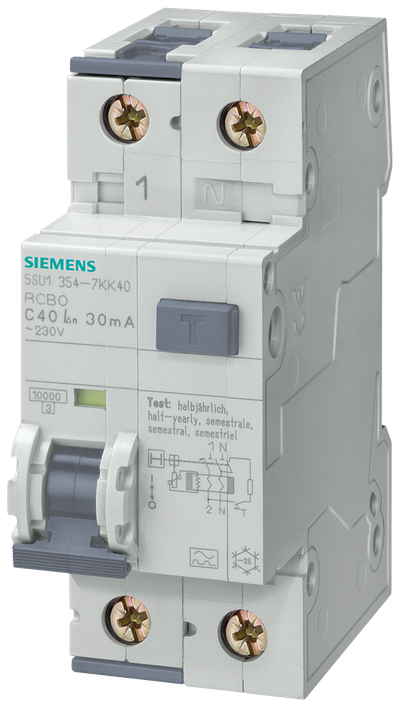

Siemens Residual current circuit breaker with overcurrent for Tn, Type A, D=70 mm Ifn 300MA,10KA, 1+N-Pole B 13A
5SU1654-6KK13
Siemens

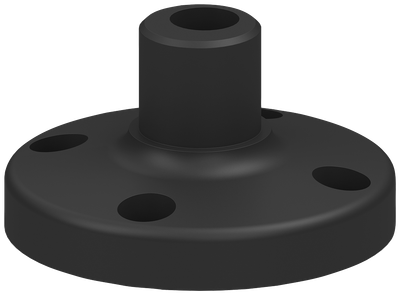

Siemens 8WD4308-0DB Plastic Foot for Tube Mounting
Siemens

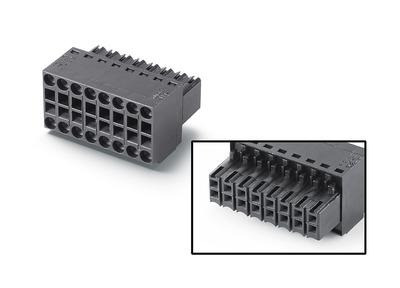

Siemens Connector set for KP8F 16 pin
6AV6671-3XY48-4AX0
Siemens

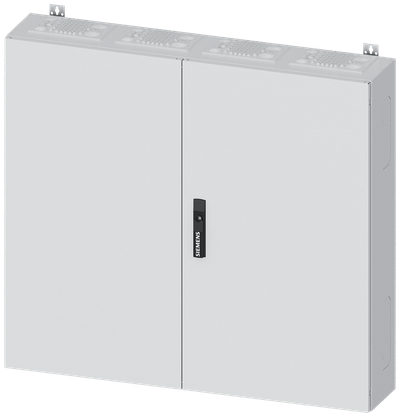

Siemens ALPHA 400, wall-mount cabinet, IP43, safety class 2, H: 950 mm, W: 1050 mm, D: 210 mm, RAL 9016
