Siemens SIRIUS 3RV20 motor protection circuit breaker, frame size S00 3RV2011-4AA20
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RV2011-4AA20 — SIRIUS 3RV20 motor protection circuit breaker, frame size S00. Rated 0.11 to 16 A adjustable, up to 100 kA short-circuit breaking, IEC 60947-4-1 type-2 coordination with paired 3RT2 contactor. 11 to 16 A adjustable, up to 100 kA short-circuit breaking, IEC 60947-4-1 type-2 coordination with paired 3RT2 contactor. Motor protection circuit breaker 11-16A spring terminals.
Technical Specifications
- Manufacturer part number (MPN)
- 3RV2011-4AA20
- EAN / GTIN
- 4011209724402
- HS code
- 8536.90
- Sales unit
- pcs
- Width
- 45 mm
- Height
- 106 mm
- Depth
- 97 mm
- Rated operation power at AC-3, 400 V
- 7.5 kW
- Rated permanent current Iu
- 16 A
- Number of poles
- 3
- Power loss
- 9.25 W
- Degree of protection (IP)
- IP20
- With thermal overload protection
- Yes
- Type of electrical connection of main circuit
- Spring clamp connection
- Switch off technique
- Magnetic
- Rated operation power at AC-3, 230 V
- 4 kW
- Rated short-circuit breaking capacity Icu at 400 V, AC
- 55 kA
- Device construction
- Built-in device fixed built-in technique
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011209724402
- SAP 1000100021
- Code 8952195
Product Documentation
More from Siemens
Siemens
Siemens SENTRON 3VA9403-0JC23 — Cu/Al box terminal set (2-Conductor), 2×70–300 mm², 3VA23 / 3VA24
Siemens
Siemens Alpha 630 Din, Cable Rail, B=1000
8GK9911-0KK40
Siemens
Siemens SENTRON 5SY4250-7 Miniature Circuit Breaker 2-Pole C50A 10KA
Siemens

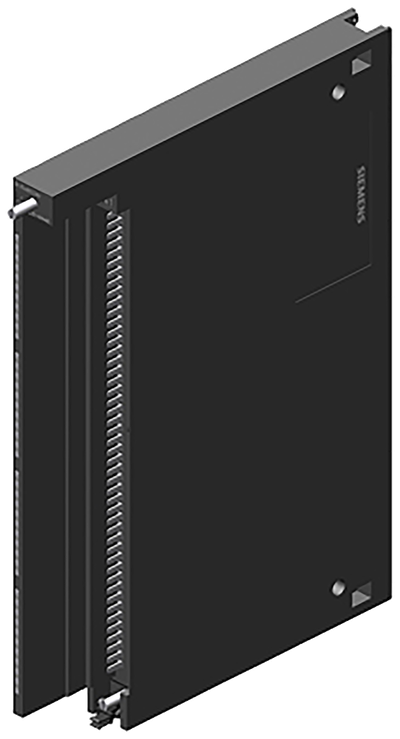

Siemens SIMATIC S7 automation module 6ES7421-1BL01-0AA0
Siemens

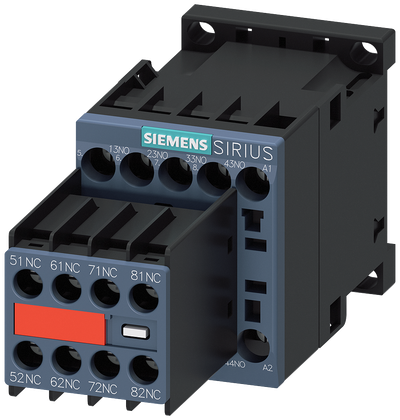

Siemens Contactor Relay, 4NO+4NC, AC 230V, 50/60Hz, Size S00, Screw Terminal Connection
3RH2244-1AP00
Siemens
Siemens SIRIUS 3RW soft starter 3RW3027-1BB04
Siemens
Siemens Industrial Ethernet TP cable (2X2) complete terminated with 2 st RJ45 plugs, length = 6 m
6XV1850-2GH60
Siemens
Siemens 3LD, auxiliary contact, 1NO+1NC for 3LD2
3LD9200-5C
Technical guides
- Motor Protection Circuit Breaker Cross-Reference — Schneider TeSys GV2 / GV3, Siemens SIRIUS 3RV2, Eaton PKZM0 / PKZM4, ABB MS116 / MS132 / MS165 by Setting Range
- Siemens SIRIUS 3RV / 3RT Motor Starter Coordination (IEC 60947-4-1)
- Siemens Low-Voltage Code Decoder — 3RT, 3RV, 3RU, 3VA, 5SL and 3SU Explained
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 3RV2011-4AA20?
- 3RV2011-4AA20 can be ordered from cballast.com as a Siemens catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Siemens product?
- The manufacturer part number is 3RV2011-4AA20.
- What is the HS code for 3RV2011-4AA20?
- The customs tariff (HS) code for 3RV2011-4AA20 is 8536.90.
- Who manufactures 3RV2011-4AA20?
- 3RV2011-4AA20 is a Siemens product in the Electrical Components range.
- Is a datasheet available for 3RV2011-4AA20?
- Yes — the 3RV2011-4AA20 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 3RV2011-4AA20?
- The minimum order quantity is 1.
- Is 3RV2011-4AA20 available?
- Yes — 3RV2011-4AA20 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
