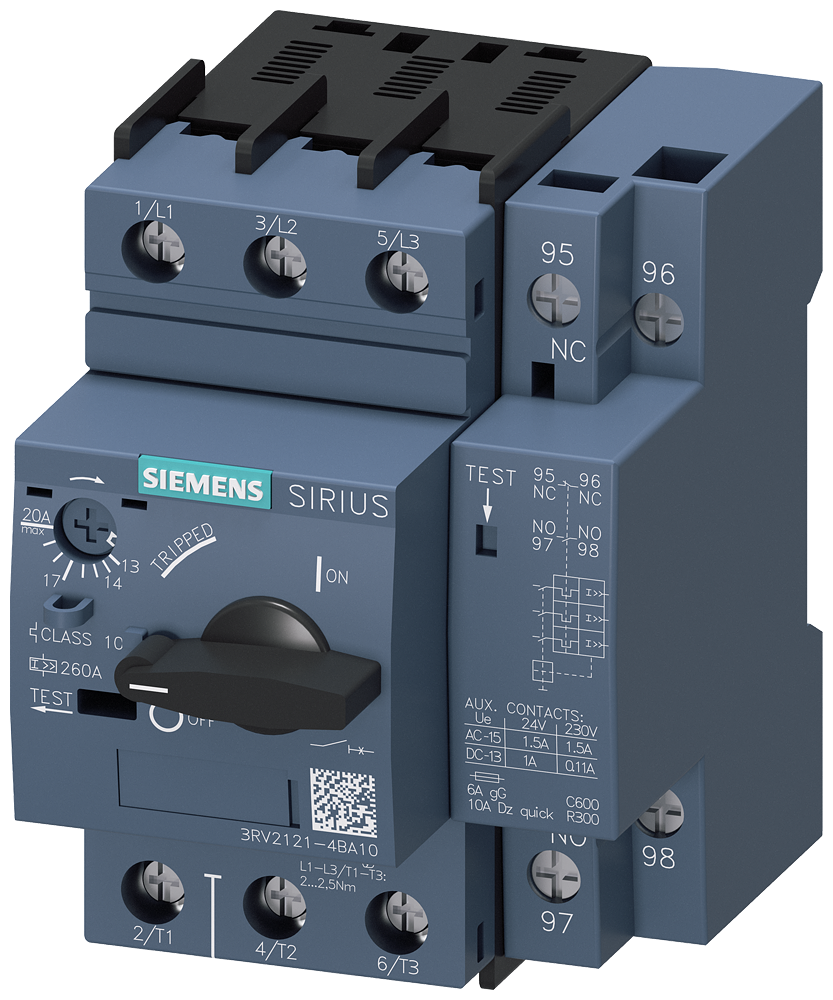

Siemens Motor protection circuit breaker rated current 14-20A 3RV2121-4BA10
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RV2121-4BA10 Motor protection circuit breaker rated current 14-20A.
Technical Specifications
- Manufacturer part number (MPN)
- 3RV2121-4BA10
- EAN / GTIN
- 4011209716421
- HS code
- 8536.90
- Sales unit
- pcs
- Setting range
- 14-20 A
- Width
- 65 mm
- Height
- 97 mm
- Depth
- 97 mm
- Rated operation power at AC-3, 400 V
- 7.5 kW
- Rated permanent current Iu
- 20 A
- Number of poles
- 3
- Power loss
- 10.5 W
- Degree of protection (IP)
- IP20
- With thermal overload protection
- Yes
- Type of electrical connection of main circuit
- Screw connection
- Switch off technique
- Magnetic
- Rated operation power at AC-3, 230 V
- 5.5 kW
- Rated short-circuit breaking capacity Icu at 400 V, AC
- 55 kA
- Device construction
- Built-in device fixed built-in technique
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011209716421
- SAP 1000099990
- Code 8980981
Product Documentation
More from Siemens
Siemens

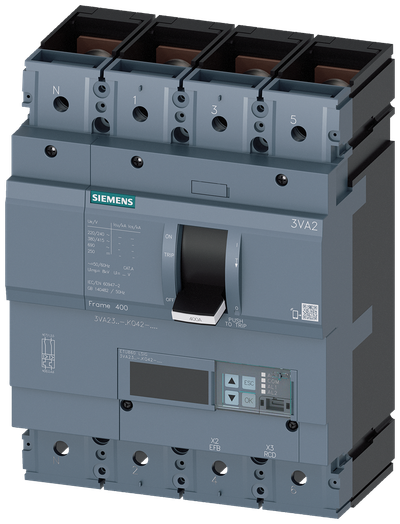

Siemens MCCB_3VA23_4P_55KA_ETU860,LSIG,IN=400A,IR=160A-400A,ISD=0,6-10XIN,II=1,5-10XIN,IG=0,2-1XIN,,B
3VA2340-5KQ42-0AA0
Siemens

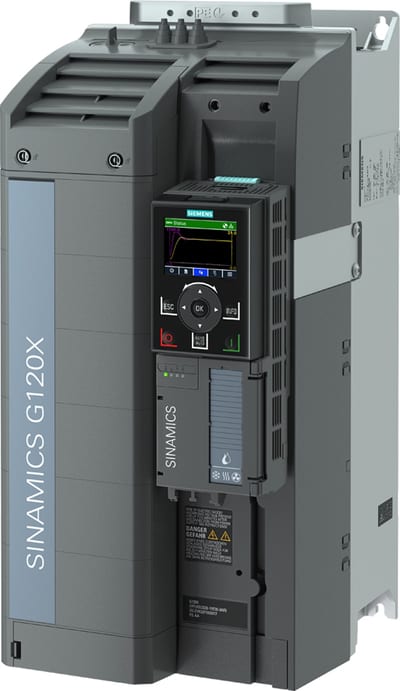

Siemens Variable-frequency drive for pump- and fan drive 6SL3220-3YE36-0UF0
Siemens

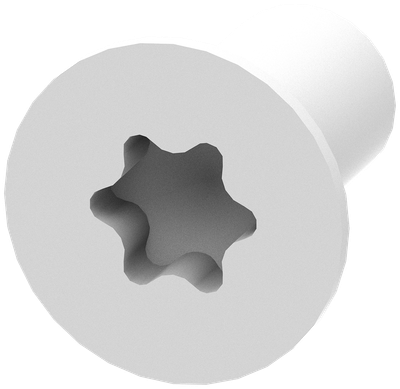

Siemens Syl s
8PQ9500-1BA07
Siemens

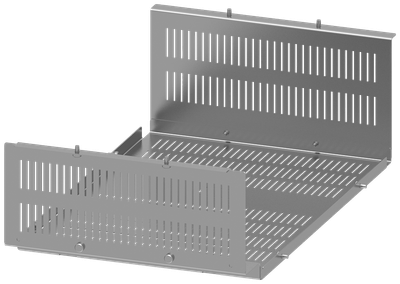

Siemens Main busbar in standard position, separation 2B
8PQ3000-0BA52
Siemens

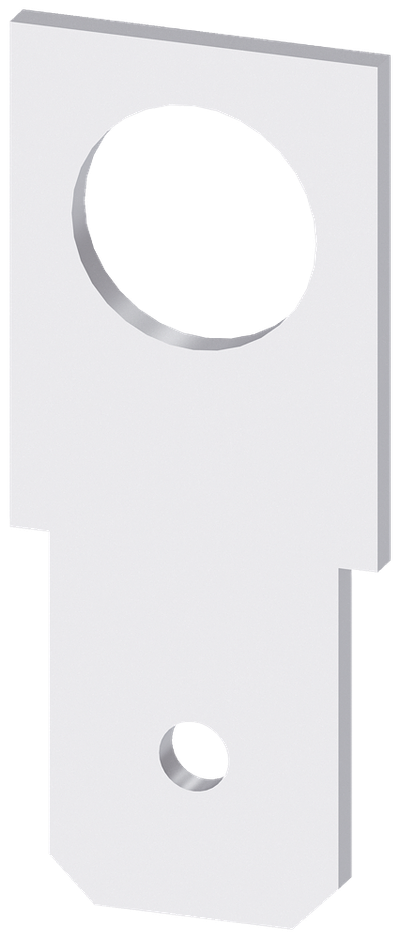

Siemens Connection terminal for NH00 prismeklemme,for auxiliary contacts 3NP1933-1BG30
Siemens

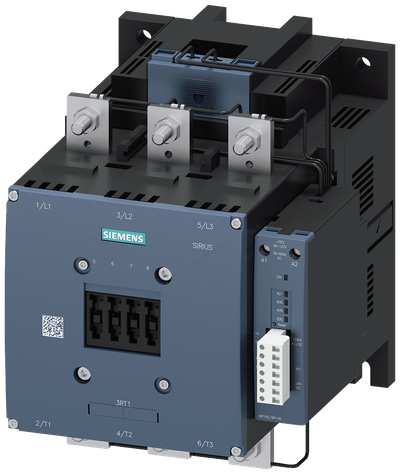

Siemens S12 contactor, 250KW/400V/AC-3 3RT1076-6PF35
Siemens

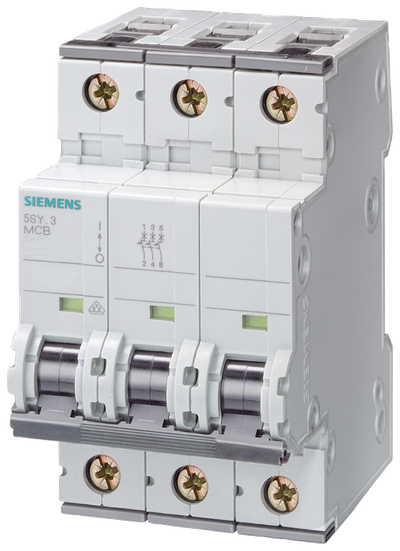

Siemens SENTRON 5SY8314-7 Miniature Circuit Breaker 3-Pole C0.3A 25KA
Siemens

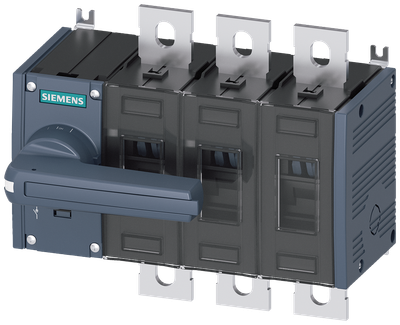

Siemens SENTRON 3KD Switch-Disconnector 3KD3632-0PE10-0, 200 A, 3-Pole, Front Operated Left, without Rotary Handle
