Siemens SIRIUS 3RV20 motor protection circuit breaker, frame size S00 3RV2111-1JA10
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RV2111-1JA10 — SIRIUS 3RV20 motor protection circuit breaker, frame size S00. Rated 0.11 to 16 A adjustable, up to 100 kA short-circuit breaking, IEC 60947-4-1 type-2 coordination with paired 3RT2 contactor. 11 to 16 A adjustable, up to 100 kA short-circuit breaking, IEC 60947-4-1 type-2 coordination with paired 3RT2 contactor. Motor protection circuit breaker 7-10A.
Technical Specifications
- Manufacturer part number (MPN)
- 3RV2111-1JA10
- EAN / GTIN
- 4011209713406
- HS code
- 8536.90
- Sales unit
- pcs
- Width
- 65 mm
- Height
- 97 mm
- Depth
- 97 mm
- Rated operation power at AC-3, 400 V
- 4 kW
- Rated permanent current Iu
- 10 A
- Number of poles
- 3
- Power loss
- 9.25 W
- Degree of protection (IP)
- IP20
- With thermal overload protection
- Yes
- Type of electrical connection of main circuit
- Screw connection
- Switch off technique
- Magnetic
- Rated operation power at AC-3, 230 V
- 2.2 kW
- Rated short-circuit breaking capacity Icu at 400 V, AC
- 100 kA
- Device construction
- Built-in device fixed built-in technique
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011209713406
- SAP 1000097937
- Code 8591770
Product Documentation
More from Siemens
Siemens

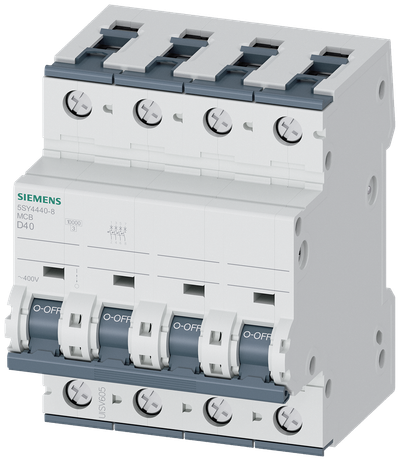

Siemens SENTRON 5SY4440-8 Miniature Circuit Breaker 4-Pole D40A 10KA
Siemens

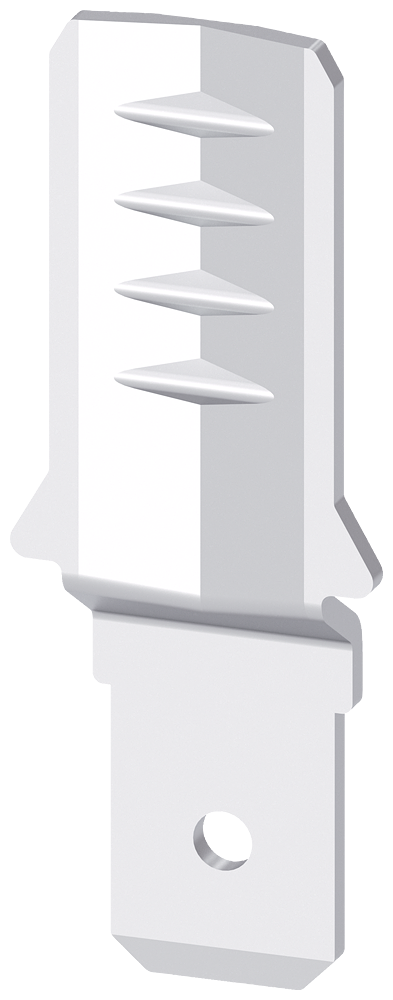

Siemens Connection terminal for NH000,for
3NP1923-1BG40
Siemens

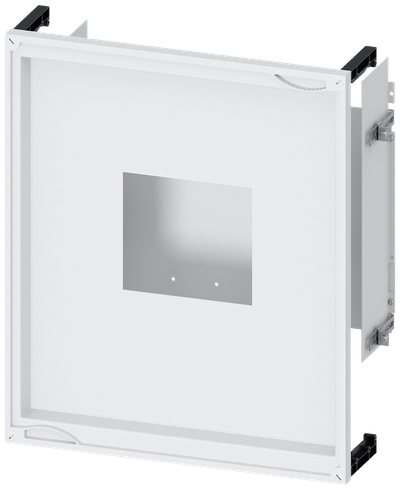

Siemens ALPHA 630 KIT 1X3VL 630, 4 P, vertical mounting, front operation H=600/ W=500, only depth 320/400mm
8GK4721-4KK20
Siemens

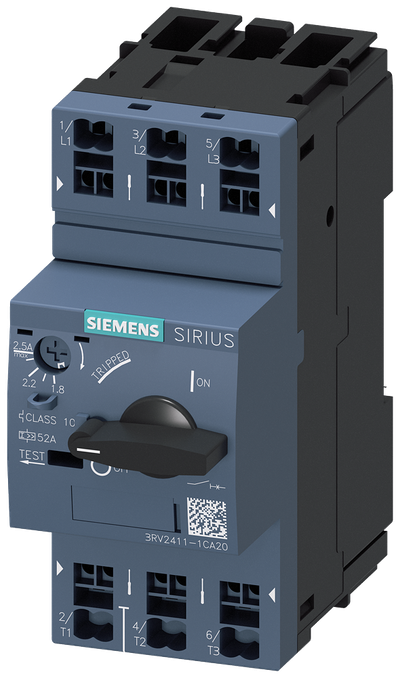

Siemens Circuit breaker for transformer 1 3RV2411-1CA20
Siemens

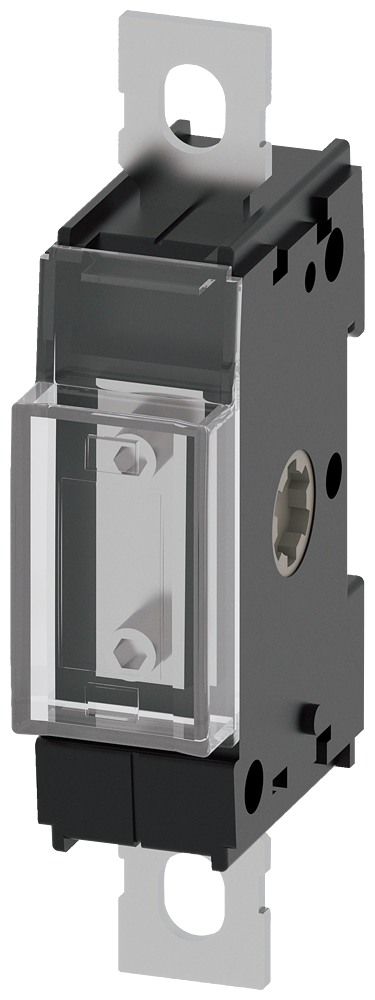

Siemens Accessory for 3KD ST2, N-terminal with detachable jumper link, flat terminal
3KD9206-0
Siemens

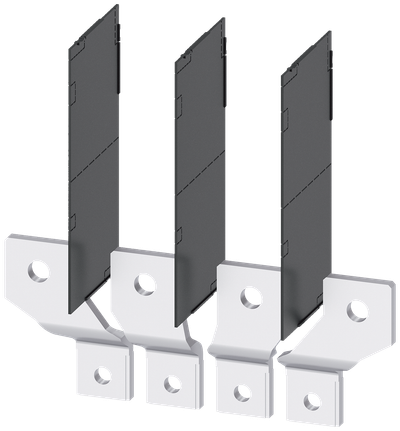

Siemens SENTRON 3VA9484-0QC00 — Copper connecting bar, wide, 3VA23 / 3VA24
Siemens

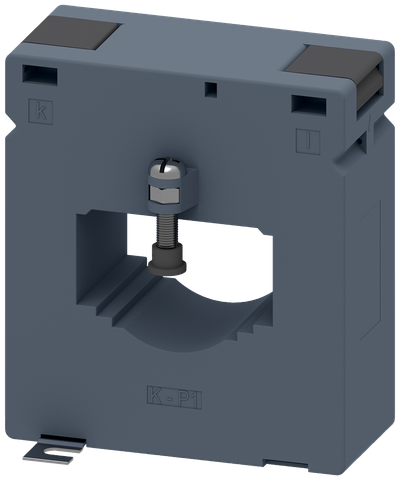

Siemens Current transformer 1000/5A, 10VA K1,0
4NC54322CH21
Siemens

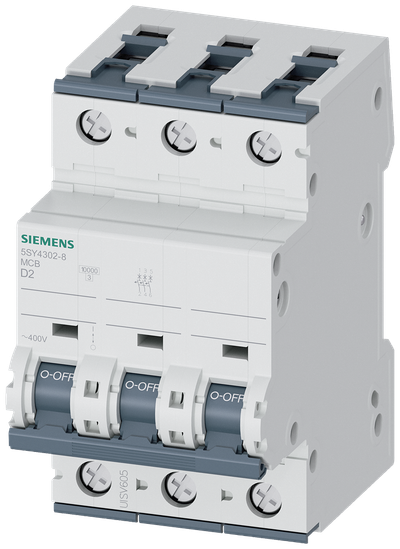

Siemens SENTRON 5SY4302-8 Miniature Circuit Breaker 3-Pole D2A 10KA
