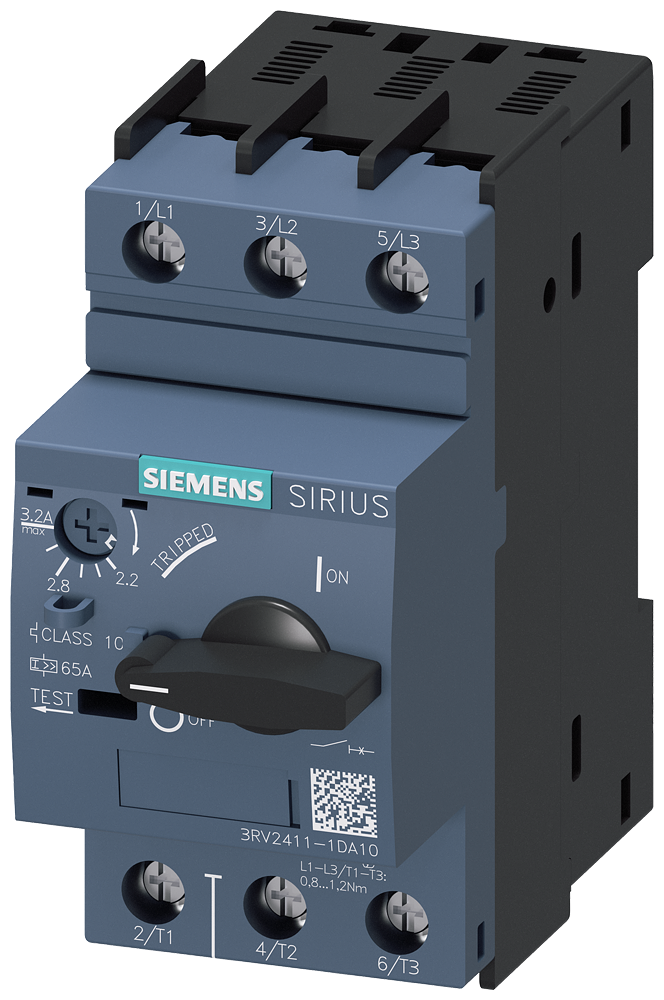

Siemens Motor protection circuit breaker 2 3RV2411-1DA10
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RV2411-1DA10 Motor protection circuit breaker 2.2-3.2A.
Technical Specifications
- Manufacturer part number (MPN)
- 3RV2411-1DA10
- EAN / GTIN
- 4011209712690
- HS code
- 8536.90
- Sales unit
- pcs
- Width
- 45 mm
- Height
- 97 mm
- Depth
- 97 mm
- Rated operation power at AC-3, 400 V
- 1.1 kW
- With integrated auxiliary switch
- No
- Rated permanent current Iu
- 3.2 A
- With integrated under voltage release
- No
- Number of poles
- 3
- Rated operating voltage
- 690 V
- Overload release current setting
- 2.2–3.2 A
- Power loss
- 7.25 W
- Degree of protection (IP)
- IP20
- With thermal overload protection
- Yes
- Type of electrical connection of main circuit
- Screw connection
- Switch off technique
- Magnetic
- Rated operation power at AC-3, 230 V
- 0.6 kW
- Rated short-circuit breaking capacity Icu at 400 V, AC
- 100 kA
- Adjustment range undelayed short-circuit release
- 65 A
- Phase failure sensitive
- Yes
- Device construction
- Built-in device fixed built-in technique
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011209712690
- SAP 1000315177
- Code 8985220
Product Documentation
