Siemens Circuit breaker for transformer 2 3RV2411-1DA20
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RV2411-1DA20 Circuit breaker for transformer 2.2-3.2A S00 Spring terminals.
Technical Specifications
- Manufacturer part number (MPN)
- 3RV2411-1DA20
- EAN / GTIN
- 4011209767331
- HS code
- 8536.90
- Sales unit
- pcs
- Width
- 45 mm
- Height
- 106 mm
- Depth
- 97 mm
- Rated operation power at AC-3, 400 V
- 1.1 kW
- With integrated auxiliary switch
- No
- Rated permanent current Iu
- 3.2 A
- With integrated under voltage release
- No
- Number of poles
- 3
- Rated operating voltage
- 690 V
- Overload release current setting
- 2.2–3.2 A
- Power loss
- 7.25 W
- Degree of protection (IP)
- IP20
- With thermal overload protection
- Yes
- Type of electrical connection of main circuit
- Spring clamp connection
- Switch off technique
- Magnetic
- Rated operation power at AC-3, 230 V
- 0.6 kW
- Rated short-circuit breaking capacity Icu at 400 V, AC
- 100 kA
- Adjustment range undelayed short-circuit release
- 65 A
- Phase failure sensitive
- Yes
- Device construction
- Built-in device fixed built-in technique
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011209767331
- SAP 1000315179
- Code 8339058
Product Documentation
More from Siemens
Siemens
Siemens Accessory for 3KD ST3, terminal cover standard length, contains 8 pcs
3KD9304-8
Siemens
Siemens Residual current circuit breaker, 4-Pole, type A, In: 40 A, 500 mA, Un AC: 400 V
5SV3744-6
Siemens
Siemens Alpha kit for Alpha 400, Alpha 630 and Alpha AS for 1X3VA10/11, 450X250 mm, RCD
8GK4731-3KK12
Siemens

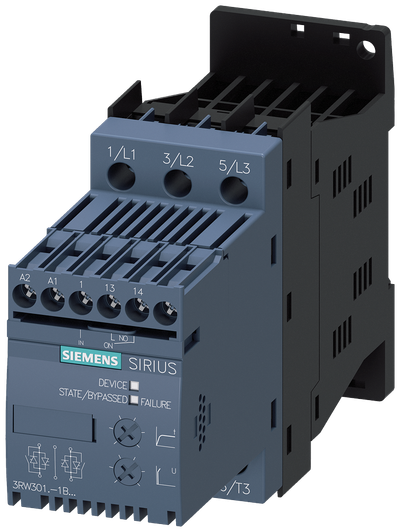

Siemens SIRIUS 3RW soft starter 3RW3018-1BB04
Siemens

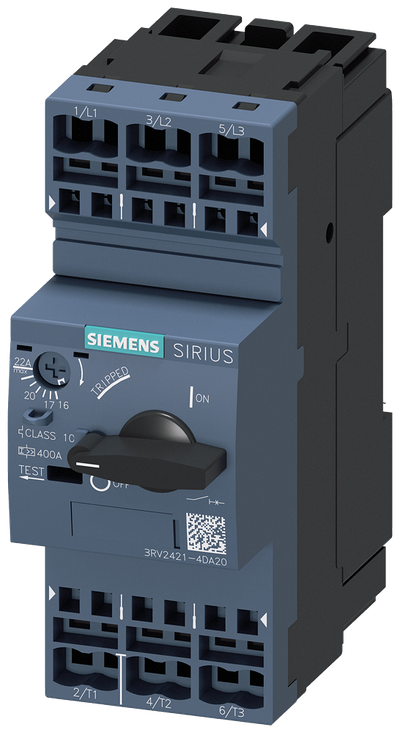

Siemens Circuit breaker for transformer 20-25A S0 Spring terminals
3RV2421-4DA20
Siemens

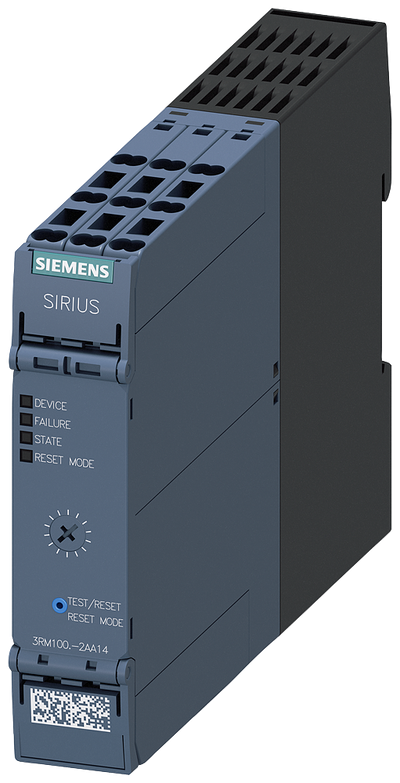

Siemens SIRIUS 3RM1 Direct Online Starter (DOL), 1,6-7,0A, 3 kW / 400 V, 110-230V, Spring Terminals
3RM1007-2AA14
Siemens

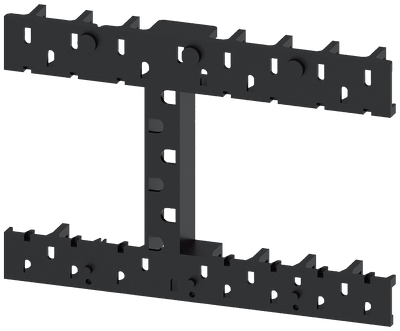

Siemens SENTRON 3VA9257-0KB02 — Cable guide for the base, 3VA12
Siemens

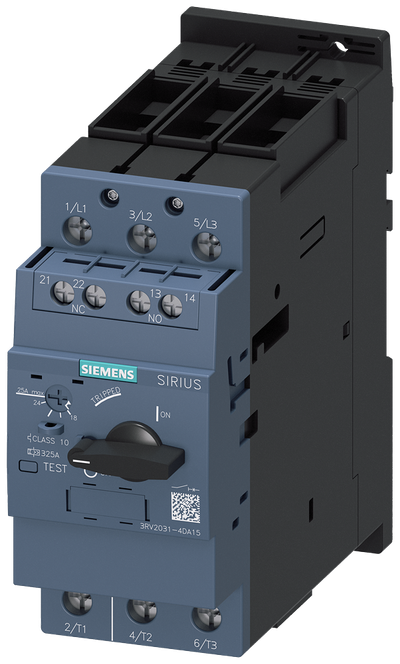

Siemens SIRIUS Motor protection circuit breaker,18 3RV2031-4DA15
