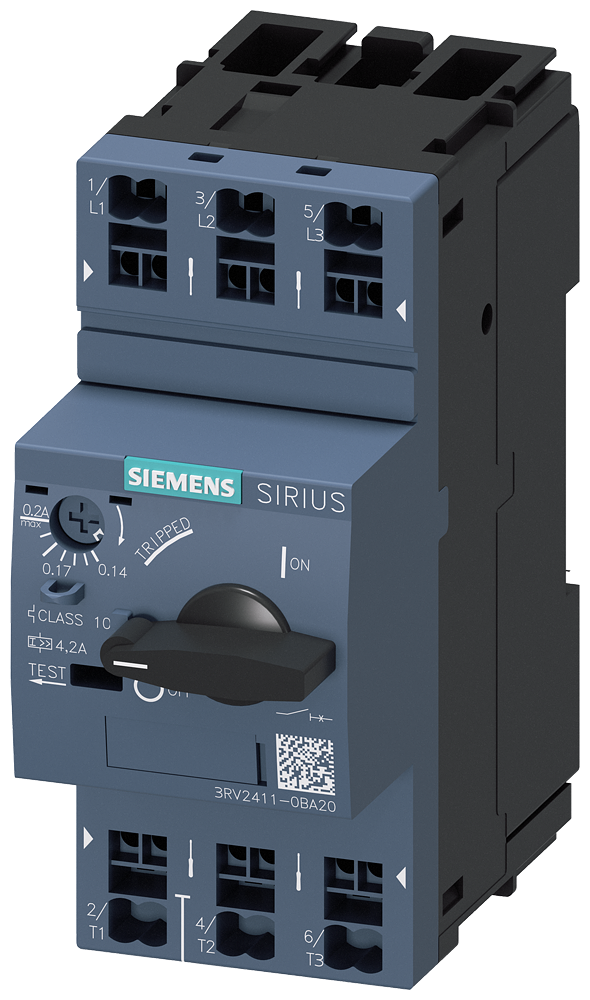

Siemens Circuit breaker for transformer 0 3RV2411-0BA20
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RV2411-0BA20 Circuit breaker for transformer 0.14-0.2A S00 Spring terminals.
Technical Specifications
- Manufacturer part number (MPN)
- 3RV2411-0BA20
- EAN / GTIN
- 4011209767218
- HS code
- 8536.90
- Sales unit
- pcs
- Width
- 45 mm
- Height
- 106 mm
- Depth
- 97 mm
- Rated operation power at AC-3, 400 V
- 0.1 kW
- With integrated auxiliary switch
- No
- Rated permanent current Iu
- 0.2 A
- With integrated under voltage release
- No
- Number of poles
- 3
- Rated operating voltage
- 690 V
- Overload release current setting
- 0.14–0.2 A
- Power loss
- 5.5 W
- Degree of protection (IP)
- IP20
- With thermal overload protection
- Yes
- Type of electrical connection of main circuit
- Spring clamp connection
- Switch off technique
- Magnetic
- Rated short-circuit breaking capacity Icu at 400 V, AC
- 100 kA
- Adjustment range undelayed short-circuit release
- 4.2 A
- Phase failure sensitive
- Yes
- Device construction
- Built-in device fixed built-in technique
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011209767218
- SAP 1000315143
- Code 8985144
Product Documentation
More from Siemens
Siemens

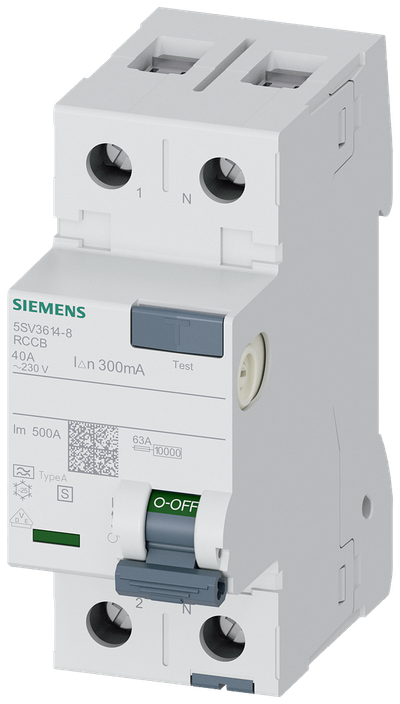

Siemens Residual current circuit breaker A 40/2, torque 2,5-3,0 Nm, conductor cross-section 1-35 MM2, selective
5SV36148
Siemens
Siemens Variable-frequency drive for pump- and fan drive 6SL3220-3YE10-0AB0
Siemens

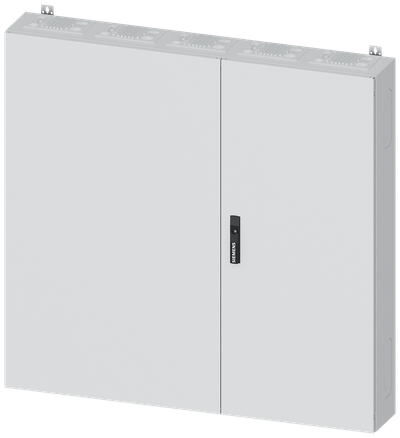

Siemens ALPHA 400, wall-mount cabinet, IP55, safety class 2, H: 1250 mm, W: 1300 mm, D: 210 mm, RAL 9016
8GK1133-6KA52
Siemens

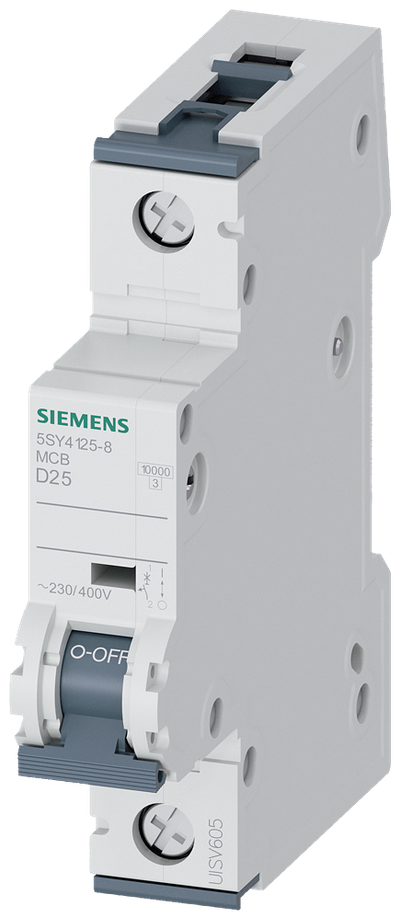

Siemens SENTRON 5SY4125-8 Miniature Circuit Breaker 1-Pole D25A 10KA
Siemens

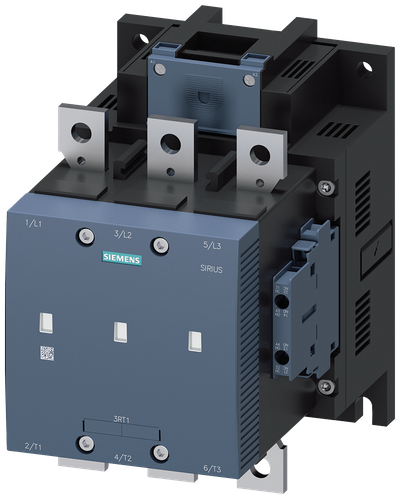

Siemens S10 Vacuum contactor, 160KW/400 3RT1266-6AP36
Siemens

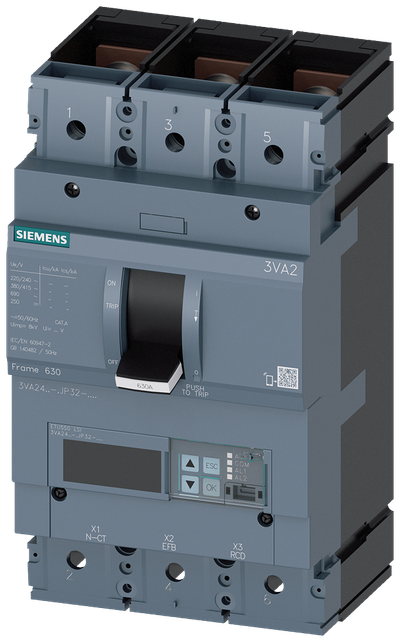

Siemens MCCB_3VA24_3P_55KA_ETU550,LSI,IN=630A,IR=252A-630A,ISD=0,6-10XIN,II=1,5-10XIN,B
3VA2463-5JP32-0AA0
Siemens

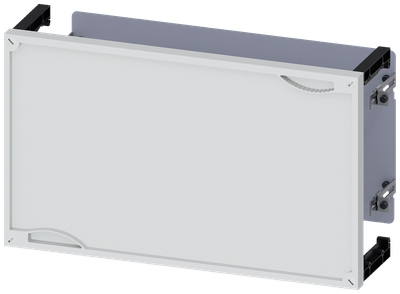

Siemens Alpha 400/630 Din, Set, mounting Plate with Blanking cover H=300 B=500
8GK4451-2KK22
Siemens

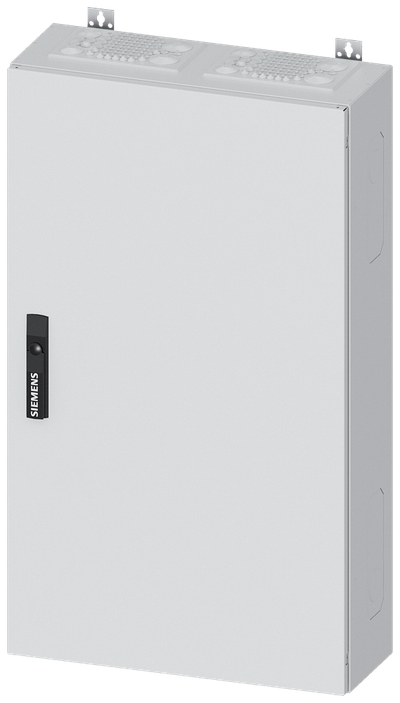

Siemens ALPHA 400, wall-mount cabinet, IP55, safety class 2, H: 950 mm, W: 550 mm, D: 210 mm, RAL 9016
