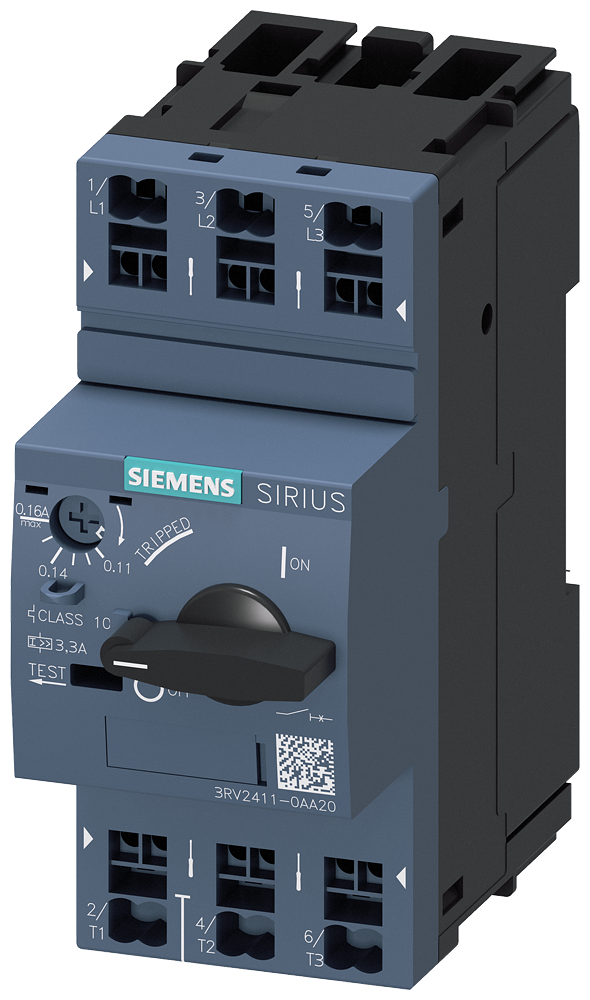

Siemens Circuit breaker for transformer 0 3RV2411-0AA20
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RV2411-0AA20 Circuit breaker for transformer 0.11-0.16A S00 Spring terminals.
Technical Specifications
- Manufacturer part number (MPN)
- 3RV2411-0AA20
- EAN / GTIN
- 4011209767201
- HS code
- 8536.90
- Sales unit
- pcs
- Width
- 45 mm
- Height
- 106 mm
- Depth
- 97 mm
- With integrated auxiliary switch
- No
- Rated permanent current Iu
- 0.16 A
- With integrated under voltage release
- No
- Number of poles
- 3
- Rated operating voltage
- 690 V
- Overload release current setting
- 0.11–0.16 A
- Power loss
- 5.5 W
- Degree of protection (IP)
- IP20
- With thermal overload protection
- Yes
- Type of electrical connection of main circuit
- Spring clamp connection
- Switch off technique
- Magnetic
- Rated short-circuit breaking capacity Icu at 400 V, AC
- 100 kA
- Adjustment range undelayed short-circuit release
- 3.3 A
- Phase failure sensitive
- Yes
- Device construction
- Built-in device fixed built-in technique
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011209767201
- SAP 1000315140
- Code 8338980
Product Documentation
More from Siemens
Siemens
Siemens Separation main busbar, mounting position: top, W: 600 mm D: 600 mm
8PQ3000-0BA53
Siemens

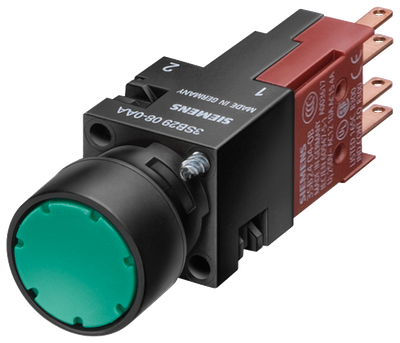

Siemens 3SB22060AE01
Siemens

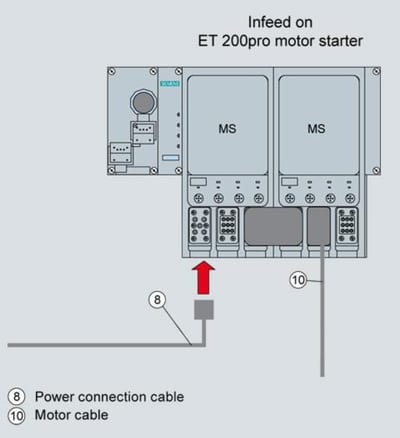

Siemens SIRIUS AS-Interface module 3RK1911-0DB33
Siemens

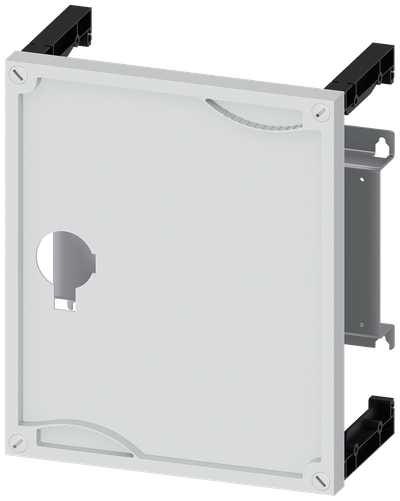

Siemens Alpha KIT 3KD, ST 3, 300X250
8GK4721-2KK10
Siemens

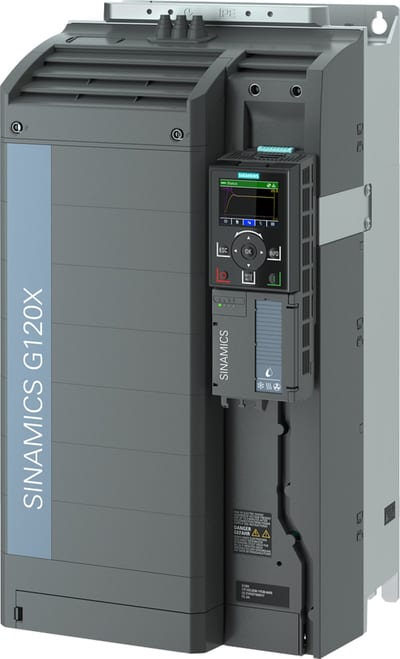

Siemens Variable-frequency drive for pump- and fan drive 6SL3220-3YE40-0AB0
Siemens

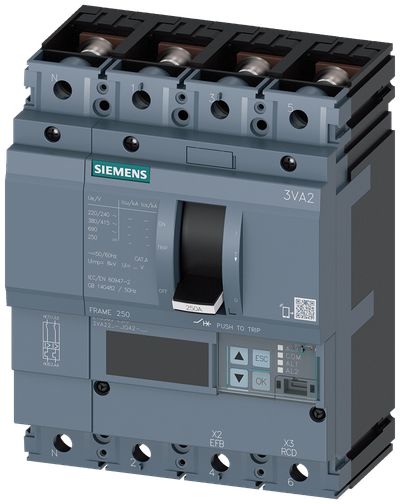

Siemens MCCB_3VA22_4P_55KA_ETU560,LSIG,IN=160A,IR=64A-160A,ISD=0,6-10XIN,II=1,5-12XIN,IG=0,2-1XIN,B
3VA2216-5JQ42-0AA0
Siemens

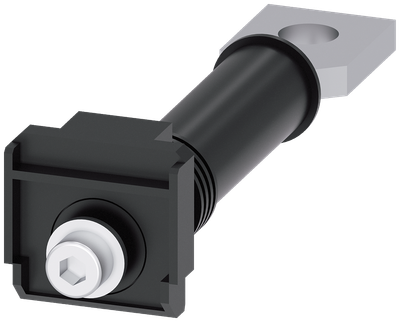

Siemens SENTRON 3VA9401-0QE20 — Rear connection terminal (flat bar), long, 3VA23 / 3VA24
Siemens

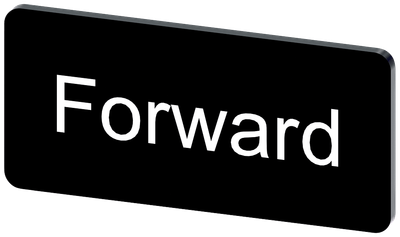

Siemens SIRIUS ACT 22 mm command and signalling device 3SU1900-0AC16-0DN0
