Siemens MCCB 3VA11 25kA 4-Pole TM210 Fixed Thermal 40A Bolt-Connection
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3VA1140-3GD42-0AA0 is a 3VA11 moulded-case circuit breaker with 25 kA breaking capacity, 4-pole configuration and TM210 thermal-magnetic release. It provides a fixed thermal and instantaneous release rated 40 A with bolt-connection main terminals on the front side. Rocker-lever operation, IP40 degree of protection, and withdrawable slide-in device construction.
Technical Specifications
- Manufacturer part number (MPN)
- 3VA1140-3GD42-0AA0
- EAN / GTIN
- 4042948832080
- HS code
- 8536.90
- Sales unit
- pcs
- Rated current
- 40 A
- Number of poles
- 4
- Breaking capacity
- 25 kA
- Rated permanent current Iu
- 40 A
- With integrated under voltage release
- No
- Power loss
- 10.8 W
- Degree of protection (IP)
- IP40
- Position of connection for main current circuit
- Front side
- Type of electrical connection of main circuit
- Screw connection
- Type of control element
- Rocker lever
- With switched-off indicator
- No
- Rated short-circuit breaking capacity Icu at 400 V, 50 Hz
- 25 kA
- Device construction
- Built-in device slide-in technique (withdrawable)
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4042948832080
- SAP 1000731698
- Code 8356943
Product Documentation
More from Siemens
Siemens
Siemens ALPHA 400, wall-mount cabinet, IP43, safety class 2, H: 800 mm, W: 800 mm, D: 210 mm, RAL 9016
8GK1132-3KA32
Siemens
Siemens SIRIUS 3RV20 motor protection circuit breaker, frame size S00 3RV2111-0CA10
Siemens

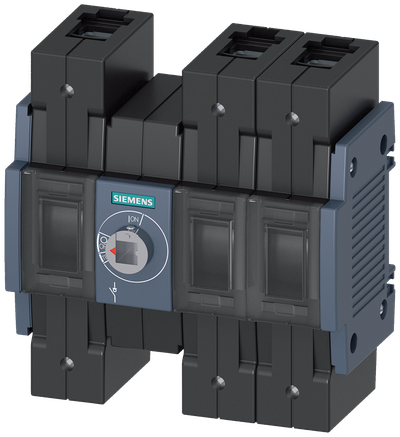

Siemens SENTRON 3KD Switch-Disconnector 3KD3430-2NE20-0, 160 A, 3-Pole, Front Operated Centre, with Rotary Handle
Siemens

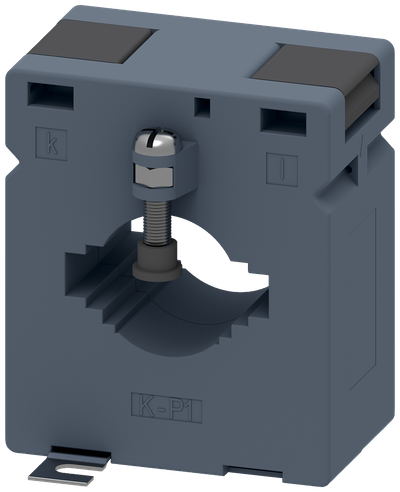

Siemens Current transformer 750/5A, 5VA K1,0
4NC53302CE21
Siemens

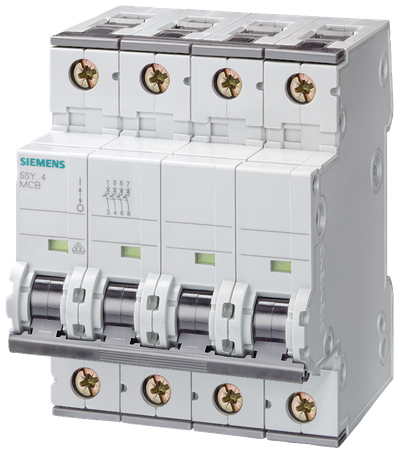

Siemens SENTRON 5SY8408-8 Miniature Circuit Breaker 4-Pole D8A 25KA
Siemens

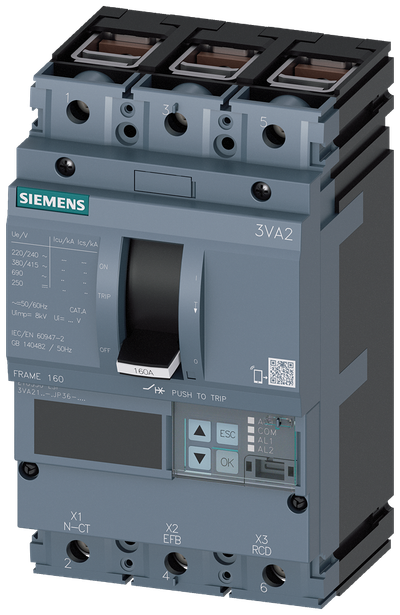

Siemens MCCB_3VA21_3P_55KA_ETU550_,LSI,IN=100A,IR=40A-100A,ISD=0,6-10XIN,II=1,5-12XIN,terminal Cu
3VA2110-5JP36-0AA0
Siemens
Siemens SENTRON 3VA9253-0KB05 — Base terminal cover, 3-Pole, 3VA12
Siemens

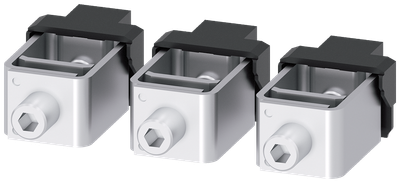

Siemens SENTRON 3VA9263-0JA12 — Copper (Cu) box terminal, 25–185 mm², 3VA20 / 3VA21 / 3VA22
