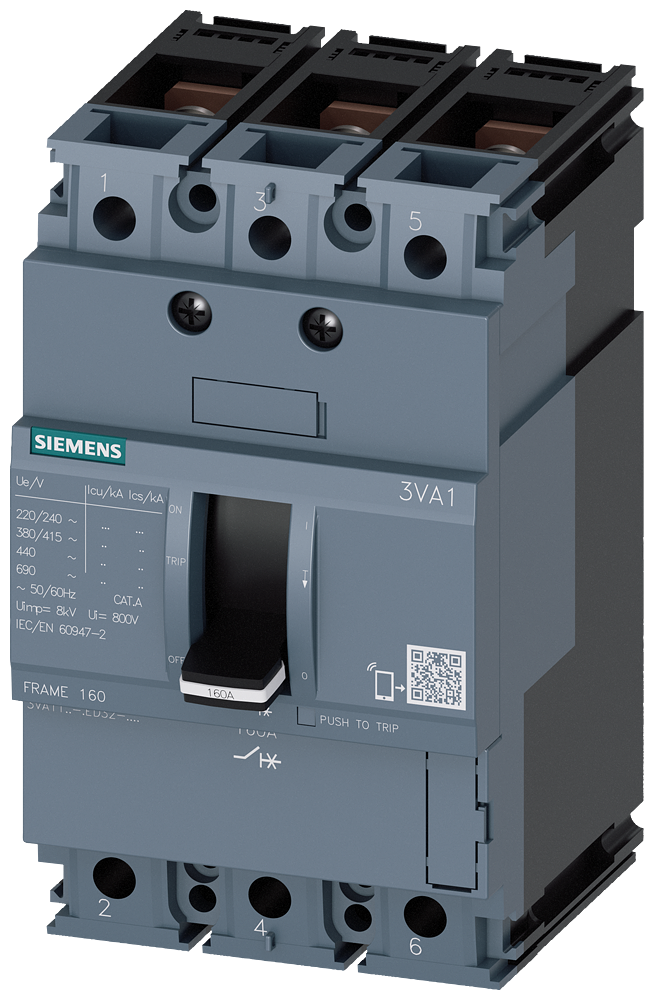

Siemens 3VA1110-3ED32-0AA0 MCCB 3VA11 25 kA 3-Pole TM210 Thermal/Instantaneous 100 A

Siemens 3VA1110-3ED32-0AA0 moulded-case circuit breaker from the 3VA11 range, 25 kA breaking capacity at 400 V / 50 Hz, 3-pole with a TM210 fixed thermal-magnetic trip unit and fast instantaneous release. Rated 100 A with bolted power terminals in a withdrawable slide-in construction.

Manufacturer part number (MPN)

3VA1110-3ED32-0AA0

EAN / GTIN

4042948812723

HS code

8536.90

Sales unit

pcs

Rated current

100 A

Number of poles

3

Breaking capacity

25 kA

Rated permanent current Iu

100 A

With integrated under voltage release

No

Overload release current setting

100 A

Rated voltage

690 V

Power loss

25 W

Degree of protection (IP)

IP40

Position of connection for main current circuit

Front side

Motor drive integrated

No

Type of electrical connection of main circuit

Screw connection

Type of control element

Rocker lever

With switched-off indicator

No

Rated short-circuit breaking capacity Icu at 400 V, 50 Hz

25 kA

Adjustment range undelayed short-circuit release

1000 A

Suitable for DIN rail (top hat rail) mounting

Yes

Integrated earth fault protection

No

Motor drive optional

Yes

Device construction

Built-in device slide-in technique (withdrawable)

DIN rail (top hat rail) mounting optional

Yes

Complete device with protection unit

Yes

Country of origin

Czechia

HS Code

8536.90

• EAN 4042948812723
• SAP 1000731614
• Code 8356864
