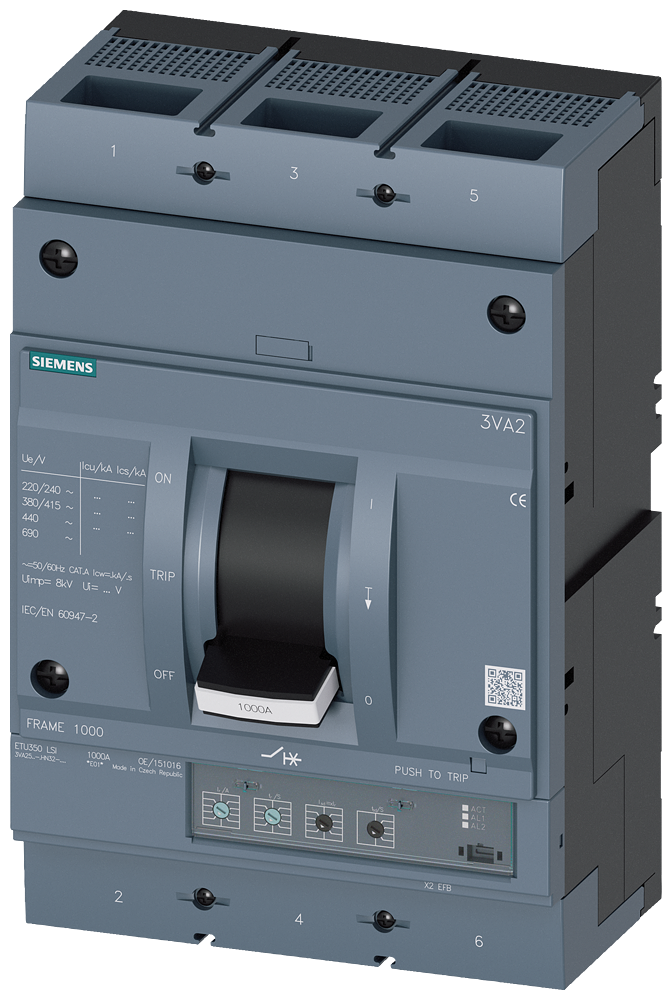

Siemens MCCB_3VA25_3P_110KA_ETU350,LSI PROTECTION, IN=1000A, IR=400A-1000A, ISD=1,5-10XIR, II=10XIN, bolt
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3VA2510-7HN32-0AA0 MCCB_3VA25_3P_110KA_ETU350,LSI PROTECTION, IN=1000A, IR=400A-1000A, ISD=1,5-10xIR, II=10xIN, bolt.
Technical Specifications
- Manufacturer part number (MPN)
- 3VA2510-7HN32-0AA0
- EAN / GTIN
- 4042948835845
- Sales unit
- pcs
- Rated current
- 1000 A
- Rated permanent current Iu
- 1000 A
- With integrated under voltage release
- No
- Number of poles
- 3
- Overload release current setting
- 400–1000 A
- Rated voltage
- 690 V
- Power loss
- 330 W
- Degree of protection (IP)
- IP40
- Position of connection for main current circuit
- Front side
- Motor drive integrated
- No
- Type of electrical connection of main circuit
- Screw connection
- Type of control element
- Rocker lever
- With switched-off indicator
- No
- Rated short-circuit breaking capacity Icu at 400 V, 50 Hz
- 110 kA
- Adjustment range short-term delayed short-circuit release
- 1500–10000 A
- Adjustment range undelayed short-circuit release
- 10000 A
- Suitable for DIN rail (top hat rail) mounting
- Yes
- Integrated earth fault protection
- No
- Motor drive optional
- No
- Device construction
- Built-in device slide-in technique (withdrawable)
- DIN rail (top hat rail) mounting optional
- Yes
- Complete device with protection unit
- Yes
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8536.20
Cross References
- EAN 4042948835845
- SAP 1200015710
- Code 81384958
