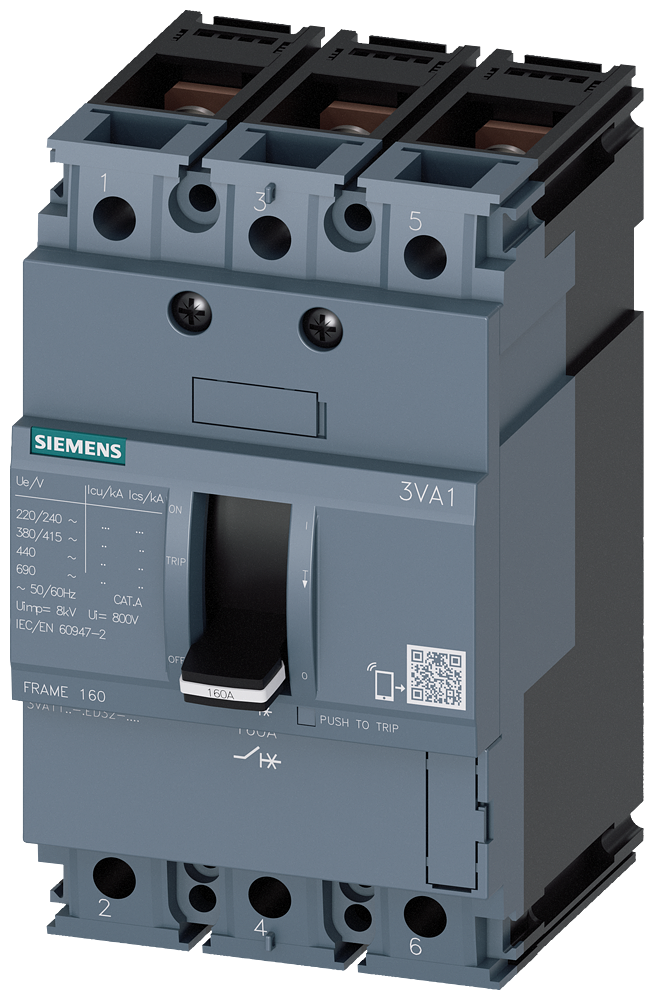

Siemens MCCB 3VA11 25kA 3-Pole TM210 Fixed Thermal 80A Bolt-Connection
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3VA1180-3ED32-0AA0 is a 3VA11 moulded-case circuit breaker with 25 kA breaking capacity, 3-pole configuration and TM210 thermal-magnetic release. It provides a fixed thermal and instantaneous release rated 80 A with bolt-connection main terminals on the front side. Rocker-lever operation, IP40 degree of protection, and withdrawable slide-in device construction.
Technical Specifications
- Manufacturer part number (MPN)
- 3VA1180-3ED32-0AA0
- EAN / GTIN
- 4042948812648
- HS code
- 8536.90
- Sales unit
- pcs
- Rated current
- 80 A
- Number of poles
- 3
- Breaking capacity
- 25 kA
- Rated permanent current Iu
- 80 A
- With integrated under voltage release
- No
- Power loss
- 19.2 W
- Degree of protection (IP)
- IP40
- Position of connection for main current circuit
- Front side
- Type of electrical connection of main circuit
- Screw connection
- Type of control element
- Rocker lever
- With switched-off indicator
- No
- Rated short-circuit breaking capacity Icu at 400 V, 50 Hz
- 25 kA
- Device construction
- Built-in device slide-in technique (withdrawable)
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4042948812648
- SAP 1000731613
- Code 8466437
Product Documentation
