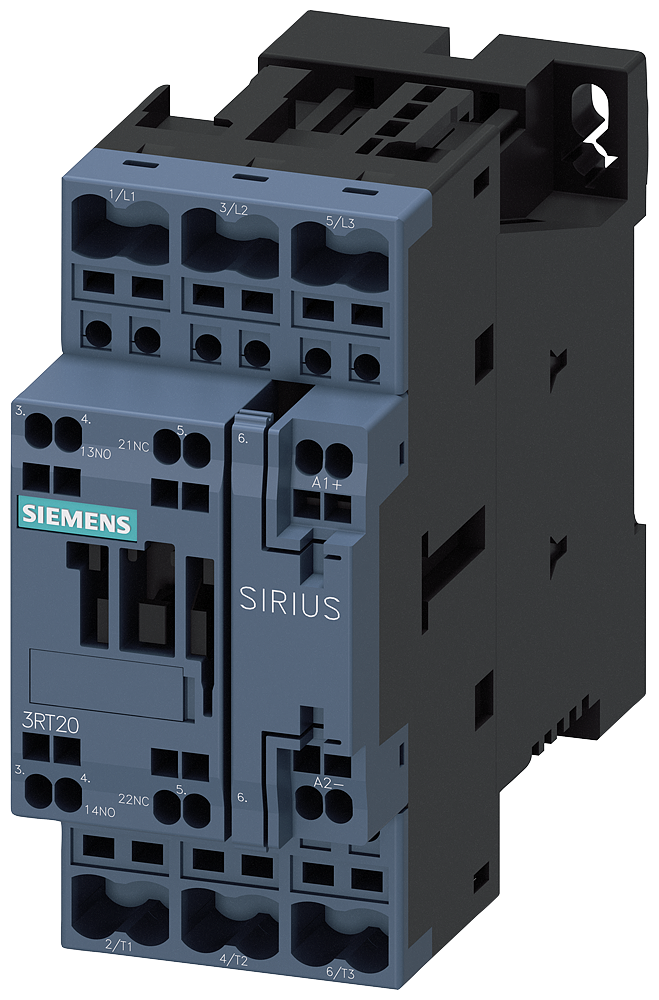

Siemens SIRIUS 3RT20 contactor, frame size S0 3RT2026-2NP30
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RT2026-2NP30 — SIRIUS 3RT20 contactor, frame size S0. AC-3 rated up to 38 A at 400 V, 3-pole. Contactor 11KW,1NO 1NC UC 200-280V S0 Spring terminals.
Technical Specifications
- Manufacturer part number (MPN)
- 3RT2026-2NP30
- EAN / GTIN
- 4011209834354
- HS code
- 8536.90
- Sales unit
- pcs
- Frame size
- S0
- Width
- 45 mm
- Height
- 102 mm
- Depth
- 107 mm
- Rated operation power at AC-3, 400 V
- 11 kW
- Number of normally open contacts as main contact
- 3
- Number of auxiliary contacts as normally open contact
- 1
- Number of auxiliary contacts as normally closed contact
- 1
- Rated operation current Ie at AC-3, 400 V
- 25 A
- Rated operation current Ie at AC-1, 400 V
- 40 A
- Type of electrical connection of main circuit
- Spring clamp connection
- Operating voltage AC 50 Hz
- 690 V
- Operating voltage AC 60 Hz
- 690 V
- Voltage type for actuating
- AC/DC
- Rated operation current Ie at AC-4, 400 V
- 15.5 A
- Rated operation power at AC-4, 400 V
- 7.5 kW
- Rated operation power NEMA
- 15 kW
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011209834354
- SAP 1000270987
- Code 81172990
Product Documentation
More from Siemens
Siemens
Siemens SENTRON 3VA9287-0GC01 — Shaft rotary operating mechanism, 3VA1
Siemens
Siemens Auxiliary contactor akt Front-mounted,4NC S00/ S0
3RH2911-1FA04
Siemens
Siemens Door whole IP4X h with standard lock H1975/B800
8PQ2197-8BA13
Siemens
Siemens SENTRON 3KD Switch-Disconnector 3KD4042-0PE10-0, 315 A, 4-Pole, Front Operated Left, without Rotary Handle
Siemens
Siemens Auxiliary contactor akt Front-mounted,4NO S00/ S0 Spring terminals
3RH2911-2FA40
Siemens
Siemens SENTRON 5SY4401-7 Miniature Circuit Breaker 4-Pole C1A 10KA
Siemens
Siemens Arc chute for size 3RT1975-7A
Siemens

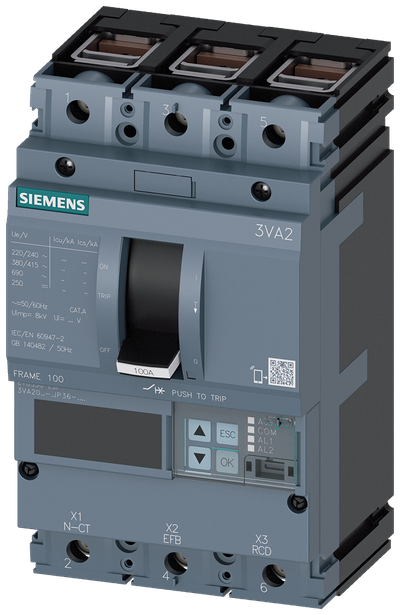

Siemens MCCB_3VA20_3P_55KA_ETU550_,LSI,IN=40A,IR=16A-40A,ISD=0,6-10XIN,II=1,5-12XIN,terminal Cu
