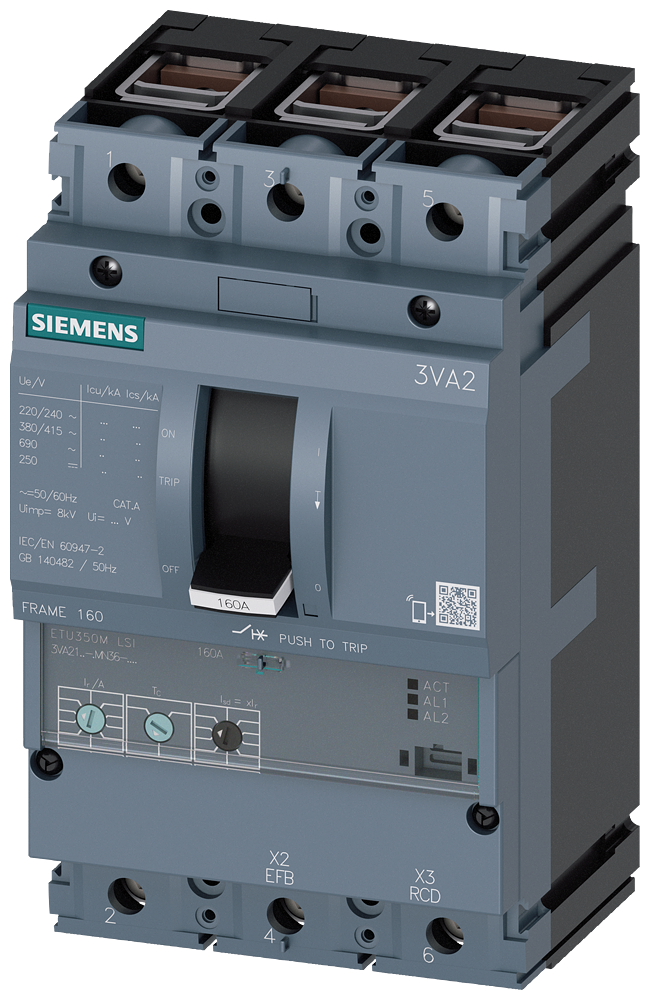

Siemens MCCB_3VA21_3P_55KA_ETU350M_,LSI,IN=63A,IR=25,2A-63A,ISD=3-15XIR,II=15XIN,terminal Cu
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3VA2163-5MN36-0AA0 MCCB_3VA21_3P_55KA_ETU350M_,LSI,IN=63A,IR=25,2A-63A,ISD=3-15xIR,II=15xIN,terminal Cu.
Technical Specifications
- Manufacturer part number (MPN)
- 3VA2163-5MN36-0AA0
- EAN / GTIN
- 4042948830819
- HS code
- 8536.90
- Sales unit
- pcs
- Rated current
- 63 A
- Rated permanent current Iu
- 63 A
- With integrated under voltage release
- No
- Number of poles
- 3
- Overload release current setting
- 25–63 A
- Rated voltage
- 690 V
- Power loss
- 4 W
- Degree of protection (IP)
- IP40
- Position of connection for main current circuit
- Front side
- Motor drive integrated
- No
- Type of electrical connection of main circuit
- Frame clamp
- Type of control element
- Rocker lever
- With switched-off indicator
- No
- Rated short-circuit breaking capacity Icu at 400 V, 50 Hz
- 55 kA
- Adjustment range short-term delayed short-circuit release
- 189–945 A
- Adjustment range undelayed short-circuit release
- 945 A
- Suitable for DIN rail (top hat rail) mounting
- Yes
- Integrated earth fault protection
- No
- Motor drive optional
- Yes
- Device construction
- Built-in device slide-in technique (withdrawable)
- DIN rail (top hat rail) mounting optional
- Yes
- Complete device with protection unit
- Yes
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4042948830819
- SAP 1000706078
- Code 8196689
Product Documentation
More from Siemens
Siemens
Siemens NH00 triple terminal for, bolt ticonnection
3NP1933-1BE10
Siemens
Siemens SIRIUS ACT Terminal module (command and LED module), integrated LED white, for front plate mounting
3SU1401-1MC60-1CA1
Siemens
Siemens Circuit breaker 3VA11,55KA,3-Pole,TM210, fixed thermal and instantaneous release, 32A, frame clamp for Cu cable
3VA1132-5ED36-0AA0
Siemens
Siemens Circuit breaker 3VA11, 55 kA, 3-Pole, TM210 Fast Thermal and Instantaneous Release, 16 A, Bolt Connection
3VA1196-5ED32-0AA0
Siemens
Siemens SENTRON 5SY8432-8 Miniature Circuit Breaker 4-Pole D32A 25KA
Siemens
Siemens Residual current circuit breaker, 4-Pole, type A, In: 63 A, 30 mA, Un AC: 500 V
5SV33566
Siemens

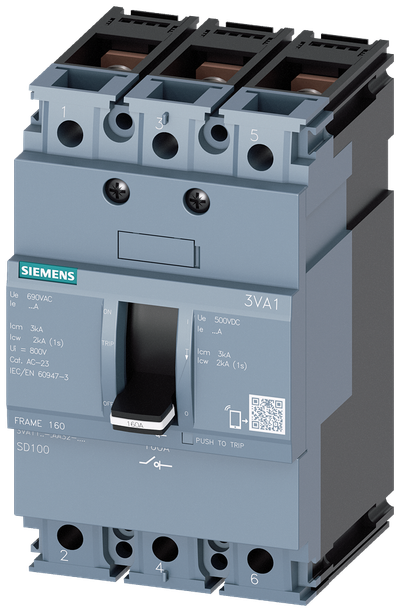

Siemens 3VA1 load-break switch, 3-Pole, 63A, Bolt Connection for cable lug, rails or cable clamps
3VA1163-1AA32-0AA0
Siemens

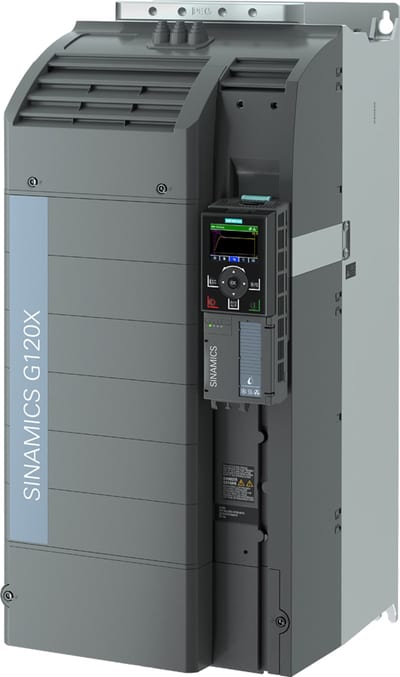

Siemens Variable-frequency drive for pump- and fan drive 6SL3220-3YC40-0UP0
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 3VA2163-5MN36-0AA0?
- 3VA2163-5MN36-0AA0 can be ordered from cballast.com as a Siemens catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Siemens product?
- The manufacturer part number is 3VA2163-5MN36-0AA0.
- What is the HS code for 3VA2163-5MN36-0AA0?
- The customs tariff (HS) code for 3VA2163-5MN36-0AA0 is 8536.90.
- Who manufactures 3VA2163-5MN36-0AA0?
- 3VA2163-5MN36-0AA0 is a Siemens product in the Electrical Components range.
- Is a datasheet available for 3VA2163-5MN36-0AA0?
- Yes — the 3VA2163-5MN36-0AA0 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 3VA2163-5MN36-0AA0?
- The minimum order quantity is 1.
- Is 3VA2163-5MN36-0AA0 available?
- Yes — 3VA2163-5MN36-0AA0 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
