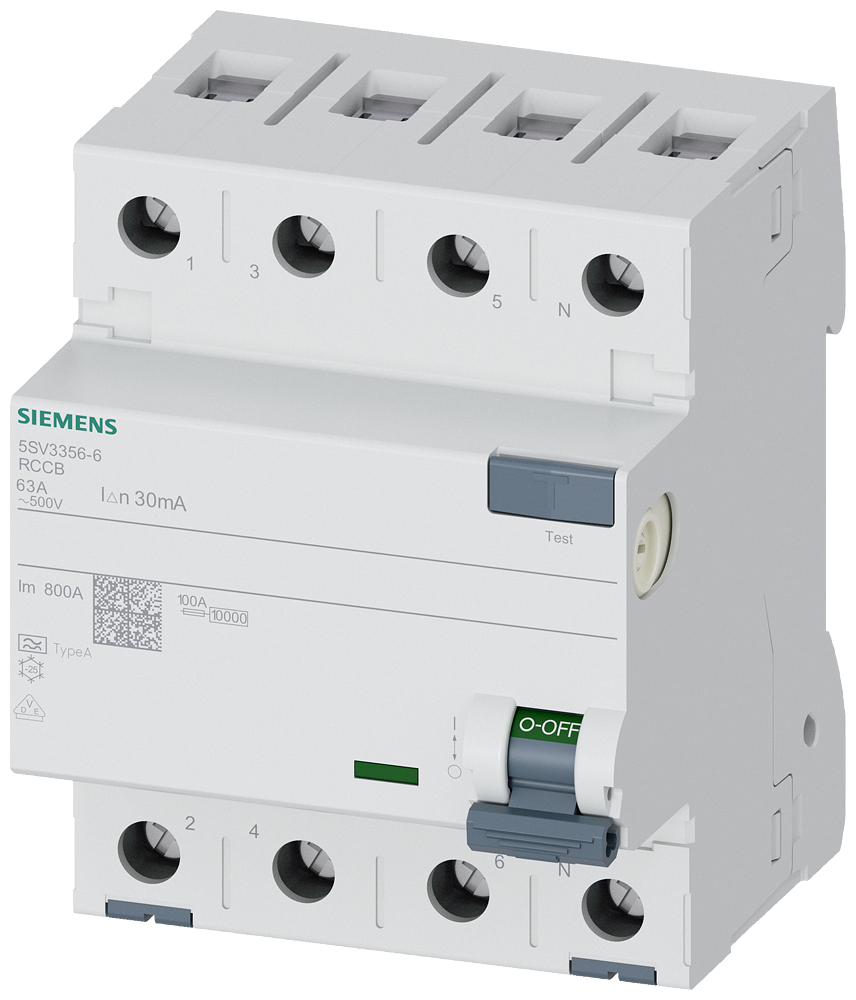

Siemens Residual current circuit breaker, 4-Pole, type A, In: 63 A, 30 mA, Un AC: 500 V
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 5SV33566 Residual current circuit breaker, 4-pole, type A, In: 63 A, 30 mA, Un AC: 500 V.
Technical Specifications
- Manufacturer part number (MPN)
- 5SV33566
- EAN / GTIN
- 4001869430478
- HS code
- 8536.90
- Sales unit
- pcs
- Voltage
- 500 V
- Rated current
- 63 A
- Number of poles
- 4P
- Mounting method
- DIN rail
- Voltage type
- AC
- Built-in depth
- 70 mm
- Rated voltage
- 500 V
- Rated insulation voltage Ui
- 2000 V
- Rated fault current
- 30 A
- Leakage current type
- A
- Selective protection
- No
- Short-circuit breaking capacity (Icw)
- 10 kA
- Surge current capacity
- 1 kA
- Pollution degree
- 2
- Width in number of modular spacings
- 4
- Short-time delayed tripping
- No
- RAL-number (similar)
- 7035
- Explosion-proof
- No
- Power loss
- 3.9 W
- Frequency
- 50 Hz
- Degree of protection (IP)
- IP20
- Connectable conductor cross section solid-core
- 0.75–35 mm²
- Connectable conductor cross section multi-wired
- 0.75–35 mm²
- With interlocking device
- Yes
- Ambient temperature during operating
- -25–45 °C
- Additional equipment possible
- Yes
- Device width
- 72 mm
- Device height
- 90 mm
- Device depth
- 70 mm
- Rated impulse withstand voltage Uimp
- 6000 kV
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4001869430478
- SAP 1000792108
- Code 81406921
Product Documentation
More from Siemens
Siemens
Siemens 3VA1 load-break switch, 3-Pole, 63A, Bolt Connection for cable lug, rails or cable clamps
3VA1163-1AA32-0AA0
Siemens
Siemens Variable-frequency drive for pump- and fan drive 6SL3220-3YC40-0UP0
Siemens

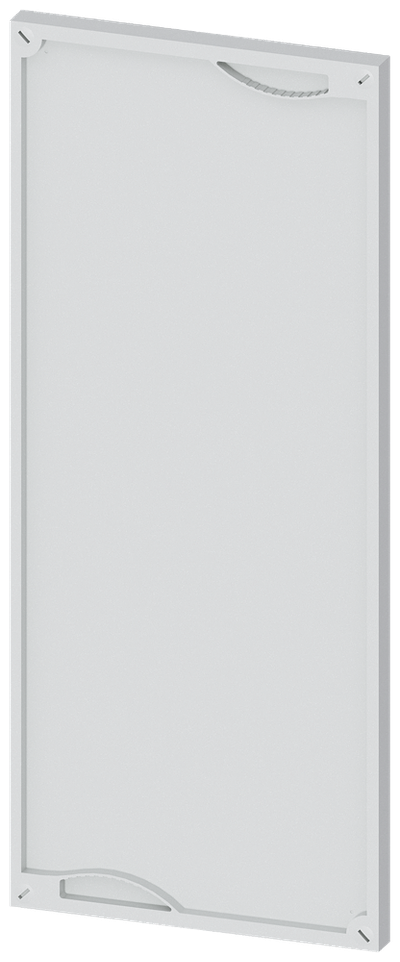

Siemens Alpha 630 Din, Blanking cover without Supports Height = 600 mm, Width = 250 mm (1 Set = 10 Units)
8GK9601-4KK10
Siemens

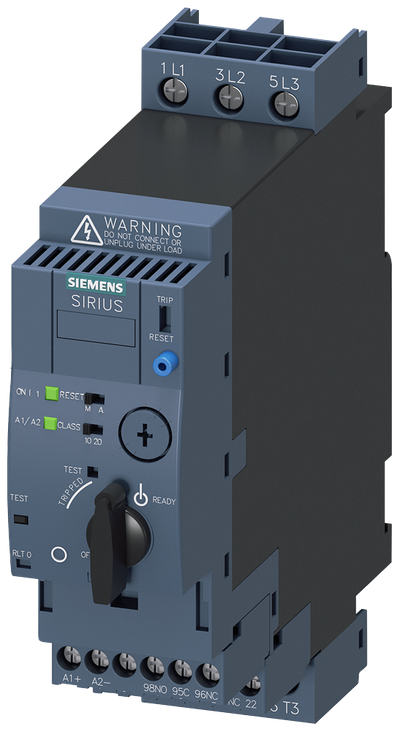

Siemens Direct Online Starter (DOL), 1-4 A, 45 mm Wide, Screw Connection (3RA6120-1CB32)
Siemens

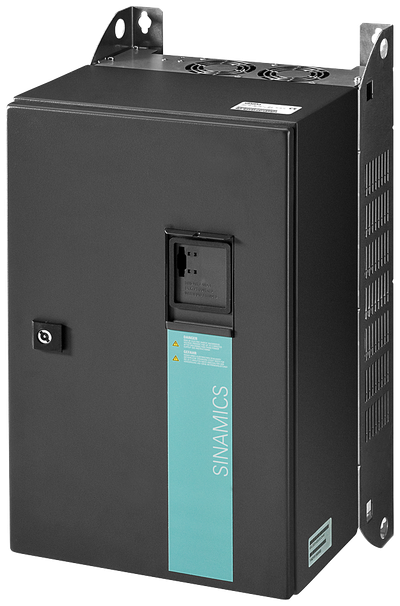

Siemens Sinamics G120P PM230 3AC 400V 22kW with integrated filter kl 6SL3223-0DE32-2BA0
Siemens

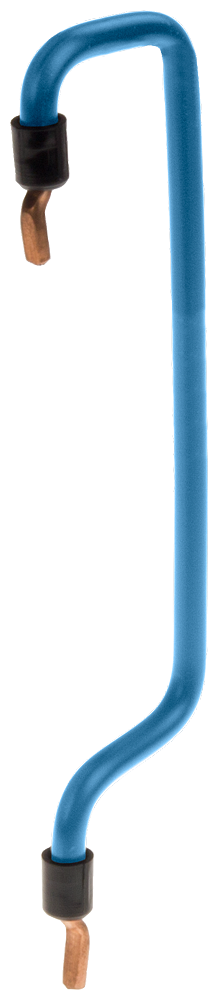

Siemens JUMPER LINK BLUE, 125mm, 16 mm²
5ST3782-0
Siemens

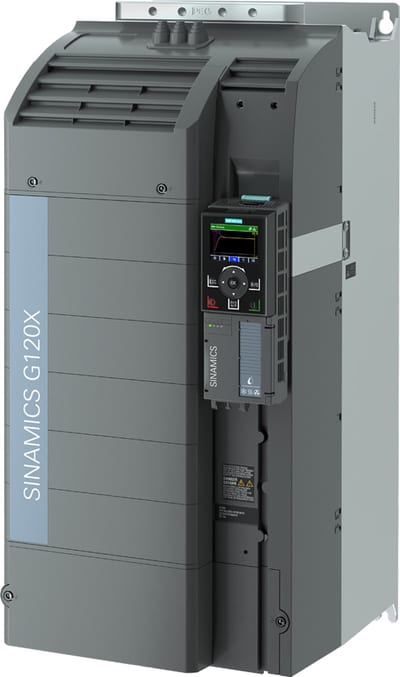

Siemens Variable-frequency drive for pump- and fan drive 6SL3220-3YC40-0UF0
