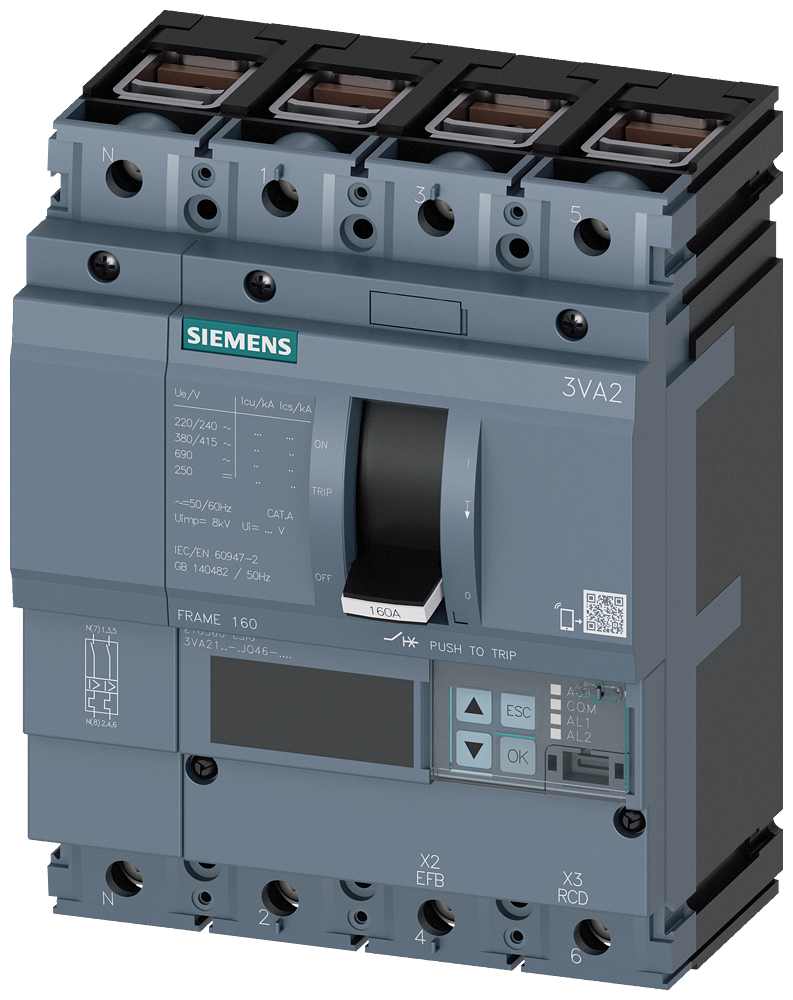

Siemens MCCB_3VA21_4P_55KA_ETU560,LSIG,IN=40A,IR=16A-40A,ISD=0,6-10XIN,II=1,5-12XIN,IG=0,2-1XIN,terminal Cu
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3VA2140-5JQ46-0AA0 MCCB_3VA21_4P_55KA_ETU560,LSIG,IN=40A,IR=16A-40A,ISD=0,6-10xIN,II=1,5-12xIN,IG=0,2-1xIN,terminal Cu.
Technical Specifications
- Manufacturer part number (MPN)
- 3VA2140-5JQ46-0AA0
- EAN / GTIN
- 4042948826720
- HS code
- 8536.90
- Sales unit
- pcs
- Rated current
- 40 A
- Rated permanent current Iu
- 40 A
- With integrated under voltage release
- No
- Number of poles
- 4
- Overload release current setting
- 16–40 A
- Rated voltage
- 690 V
- Power loss
- 1.6 W
- Degree of protection (IP)
- IP40
- Position of connection for main current circuit
- Front side
- Motor drive integrated
- No
- Type of electrical connection of main circuit
- Frame clamp
- Type of control element
- Rocker lever
- With switched-off indicator
- No
- Rated short-circuit breaking capacity Icu at 400 V, 50 Hz
- 55 kA
- Adjustment range short-term delayed short-circuit release
- 24–400 A
- Adjustment range undelayed short-circuit release
- 60–480 A
- Suitable for DIN rail (top hat rail) mounting
- Yes
- Integrated earth fault protection
- Yes
- Motor drive optional
- Yes
- Device construction
- Built-in device slide-in technique (withdrawable)
- DIN rail (top hat rail) mounting optional
- Yes
- Complete device with protection unit
- Yes
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4042948826720
- SAP 1000706020
- Code 8425433
Product Documentation
More from Siemens
Siemens
Siemens SENTRON 3VA9263-0QB00 — Copper connecting bar, 3VA20 / 3VA21 / 3VA22
Siemens
Siemens MCCB_3VA21_3P_55KA_ETU350_,LSI,IN=100A,IR=40A-100A,ISD=1,5-10XIR,II=12XIN,terminal Cu
3VA2110-5HN36-0AA0
Siemens
Siemens SIRIUS 3RT20 contactor, frame size S0 3RT2025-1AL24
Siemens
Siemens MCCB_3VA20_3P_55KA_ETU850,LSI,IN=100A,IR=40A-100A,ISD=0,6-10XIN,II=1,5-12XIN,B
3VA2010-5KP320-0AA0
Siemens
Siemens SIRIUS Illuminated twin pushbutton, 22 mm, round, plastic, green: I, red: O, pushbuttons, flat
3SU1001-3AB42-0AK0
Siemens

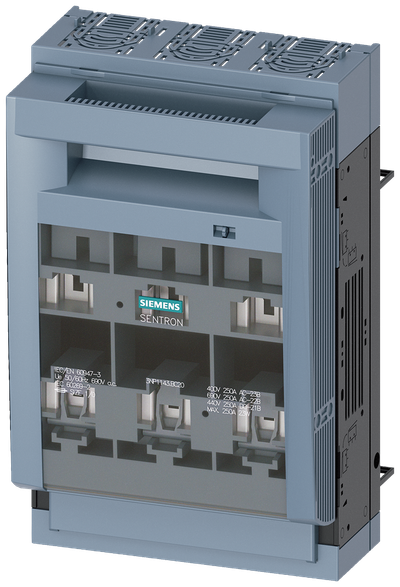

Siemens Fuse switch-disconnector 3NP1143-1BC20
Siemens

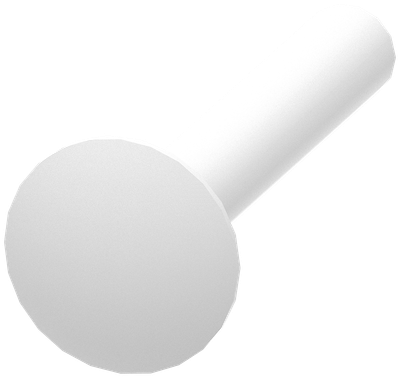

Siemens R 8PQ9500-1BA25
