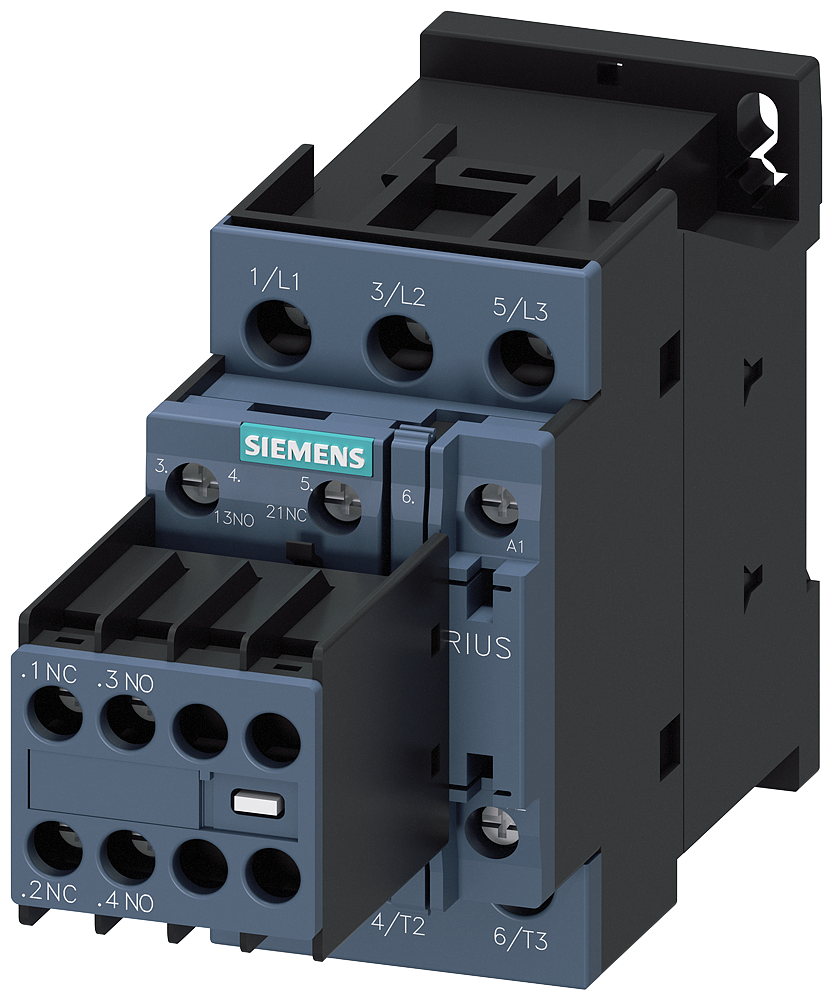

Siemens SIRIUS 3RT20 contactor, frame size S0 3RT2025-1AL24
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RT2025-1AL24 — SIRIUS 3RT20 contactor, frame size S0. AC-3 rated up to 38 A at 400 V, 3-pole. Contactor 17A, 230V AC 2NO+2NC.
Technical Specifications
- Manufacturer part number (MPN)
- 3RT2025-1AL24
- EAN / GTIN
- 4011209837232
- HS code
- 8536.90
- Sales unit
- pcs
- Frame size
- S0
- Width
- 45 mm
- Height
- 85 mm
- Depth
- 141 mm
- Rated operation power at AC-3, 400 V
- 7.5 kW
- Number of normally open contacts as main contact
- 3
- Number of auxiliary contacts as normally open contact
- 2
- Number of auxiliary contacts as normally closed contact
- 2
- Rated operation current Ie at AC-3, 400 V
- 17 A
- Rated operation current Ie at AC-1, 400 V
- 40 A
- Type of electrical connection of main circuit
- Screw connection
- Operating voltage AC 50 Hz
- 690 V
- Operating voltage AC 60 Hz
- 690 V
- Voltage type for actuating
- AC
- Rated operation current Ie at AC-4, 400 V
- 15.5 A
- Rated operation power at AC-4, 400 V
- 7.5 kW
- Rated operation power NEMA
- 10 kW
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011209837232
- SAP 1000097729
- Code 8895333
Product Documentation
More from Siemens
Siemens
Siemens MCCB_3VA20_3P_55KA_ETU850,LSI,IN=100A,IR=40A-100A,ISD=0,6-10XIN,II=1,5-12XIN,B
3VA2010-5KP320-0AA0
Siemens
Siemens SIRIUS Illuminated twin pushbutton, 22 mm, round, plastic, green: I, red: O, pushbuttons, flat
3SU1001-3AB42-0AK0
Siemens
Siemens Fuse switch-disconnector 3NP1143-1BC20
Siemens
Siemens R 8PQ9500-1BA25
Siemens
Siemens Adapter for LS 5SL 5SN 3, 4 MW 5SY
5ST3820-7
Siemens
Siemens Thread-cutting screw pan head, DIN 7500-Pe, M6 x 20, ST, zinc-plated, TX 30, 1 pack = 100 units
8PQ9500-0BA31
Siemens

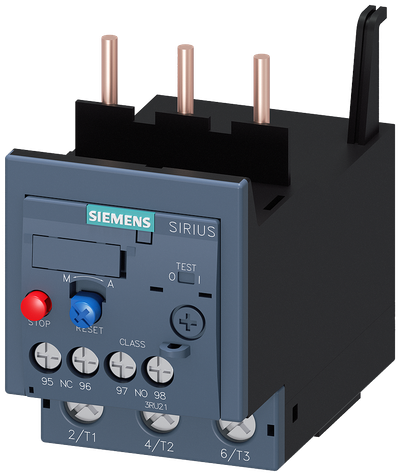

Siemens SIRIUS Thermal Overload Relay 70-80 A
3RU2136-4RB0
Siemens

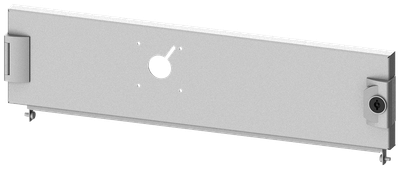

Siemens Compartment door 3VA11 (160 A), fixed-mounted, RCD: with, H: 150 mm W: 600 mm
