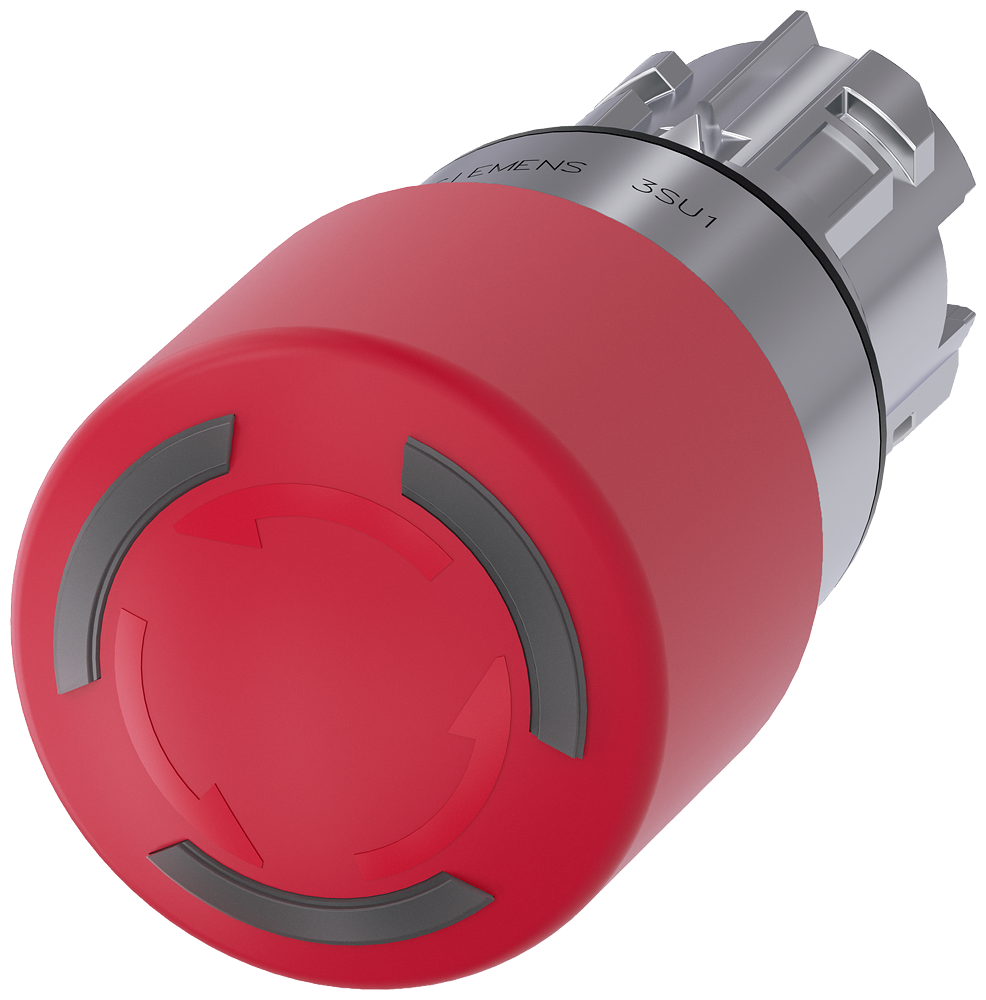

Siemens SIRIUS ACT EMERGENCY STOP mushroom pushbutton, illuminable, 22 mm, round, metal, shiny, red, 30 mm, positive latching, acc. to EN ISO 13850, rotate-to-unlatch
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3SU1051-1GB20-0AA0 — SIRIUS ACT 22 mm command and signalling device. Panel-mount pushbutton, indicator lamp or emergency-stop actuator in the 22 mm cutout family. SIRIUS ACT 22mm black rigid plastic design Emergency stop head-red Ø30mm.
Technical Specifications
- Manufacturer part number (MPN)
- 3SU1051-1GB20-0AA0
- EAN / GTIN
- 4011209973008
- Sales unit
- pcs
- Product brand name
- SIRIUS ACT
- Product designation
- EMERGENCY STOP mushroom pushbuttons
- Design of the product
- Actuating/signaling element
- Product type designation
- 3SU1
- Product line
- Metal, shiny, 22 mm
- Number of command points
- 1
- Design of the actuating element
- positive latching
- Principle of operation of the actuating element
- latching
- Product extension optional — light source
- Yes
- Product extension optional — contact module
- Yes
- Color — of the actuating element
- red
- Material of the actuating element
- plastic
- Shape of the actuating element
- round
- Outer diameter of the actuating element
- 33.8 mm
- Type of unlocking device
- rotate-to-unlatch mechanism
- Number of switching positions
- 2
- Product component front ring
- No
- Product function — positive opening
- Yes
- Product function — EMERGENCY OFF function
- Yes
- Product function — EMERGENCY STOP function
- Yes
- Protection class IP
- IP66, IP67, IP69(IP69K)
- Degree of protection NEMA rating
- 1, 2, 3, 3R, 4, 4X, 12, 13
- Shock resistance — according to IEC 60068-2-27
- sinusoidal half-wave 15 g / 11 ms
- Vibration resistance — according to IEC 60068-2-6
- 10 ... 500 Hz: 5 g
- Operating frequency maximum
- 600 1/h
- Mechanical service life (operating cycles) typical
- 300 000
- Reference code according to IEC 81346-2
- S
- General technical data — Net Weight
- 94 g
- Product function suitable for safety function
- Yes
- Service life maximum
- 20 a
- Test wear-related service life necessary
- Yes
- Proportion of dangerous failures — with low demand rate according to SN 31920
- 20 %
- Proportion of dangerous failures — with high demand rate per NC contact according to SN 31920
- 20 %
- Proportion of dangerous failures — with high demand rate per NO contact according to SN 31920
- 50 %
- B10 value with high demand rate according to SN 31920
- 100 000
- Failure rate [FIT] with low demand rate per NC contact according to SN 31920
- 100 FIT
- Device type according to ISO 13849-1
- 3
- Safety device type according to IEC 61508-2
- Type A
- T1 value for proof test interval or service life according to IEC 61508
- 20 a
- Ambient temperature — during operation
- -25 ... +70 °C
- Ambient temperature — during storage
- -40 ... +80 °C
- Shape of the installation opening
- round
- Mounting diameter
- 22.3 mm
- Positive tolerance of installation diameter
- 0.4 mm
- Mounting height
- 44.2 mm
- Installation width
- 33.8 mm
- Installation depth
- 26.3 mm
- Hole diameter
- 22.3 mm
- Colour button
- Red
- Unlocking method
- Turn-release
- Diameter cap
- 33.8 mm
- Type of button
- High
- With lighting
- Yes
- Width opening
- 33.8 mm
- Height opening
- 44.2 mm
- Degree of protection (IP)
- IP67/IP69K
- Construction type lens
- Round
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4011209973008
- SAP 1000688582
- Code 8397248
Product Documentation
More from Siemens
Siemens
Siemens Variable-frequency drive for pump- and fan drive 6SL3220-3YE50-0AP0
Siemens
Siemens SENTRON 5SY4680-7 Miniature Circuit Breaker 3+N-Pole C80A 10KA
Siemens
Siemens SENTRON 3VA9103-0JG11 — Cu/Al box terminal, 1.5–50 mm², 3VA20 / 3VA21 / 3VA22
Siemens
Siemens SIMATIC ET 200SP, digital input module, DI 8X NAMUR High Feature
6ES7131-6TF00-0CA0
Siemens
Siemens SIMATIC S7 automation module 6ES7400-1TA01-0AA0
Siemens
Siemens Circuit breaker 3VA11,25KA,3-Pole,TM210, fixed thermal and instantaneous release, 25A, frame clamp for Cu cable
3VA1125-3ED36-0AA0
Siemens

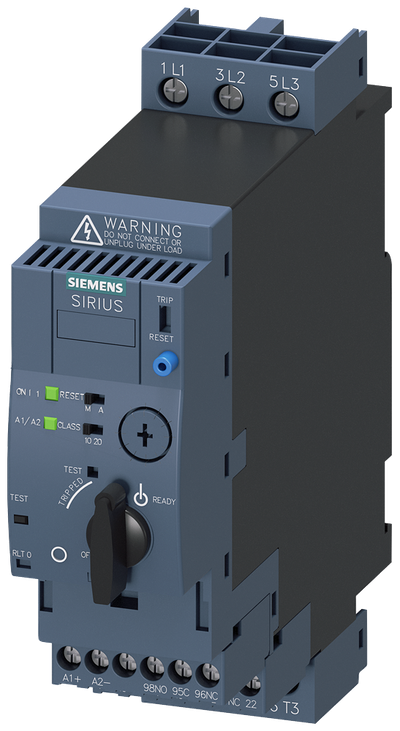

Siemens Direct Online Starter (DOL), 0,32 - 1,25 A, 45 mm Wide, Screw Connection (3RA6120-1BP32)
Siemens

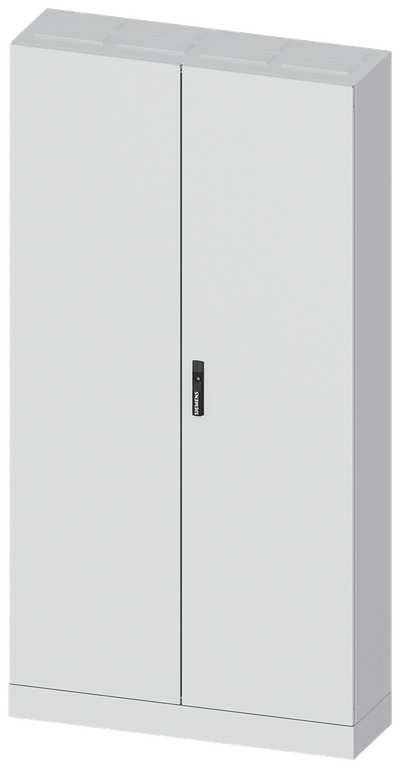

Siemens Alpha 630 Din, Floor Cabinet Including Plinth Colour Ral 7035, IP55, SK2, H=1900 B=1050 D=320
