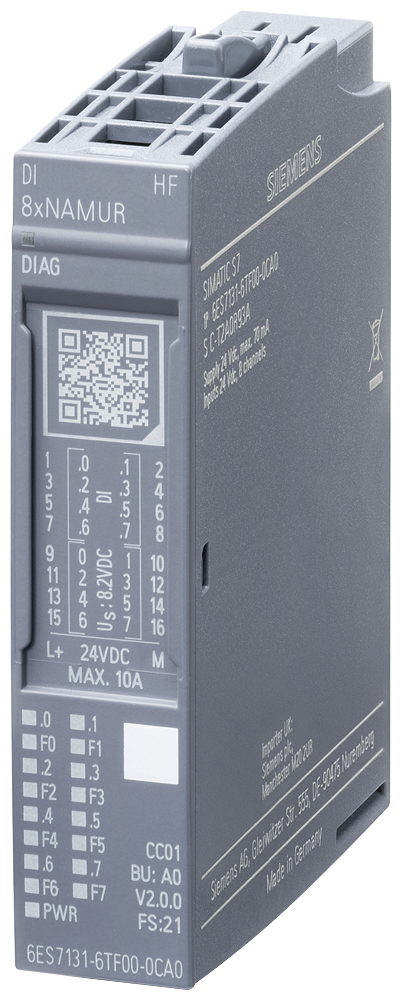

Siemens SIMATIC ET 200SP, digital input module, DI 8X NAMUR High Feature

Siemens 6ES7131-6TF00-0CA0 — SIMATIC S7 automation module. Compact controller or expansion module for the S7-1200 or S7-1500 PLC platform. ET200SP DI8xNamur HF.

Manufacturer part number (MPN)

6ES7131-6TF00-0CA0

EAN / GTIN

4047623403395

Sales unit

pcs

Product type designation

DI 8xNAMUR HF

HW functional status

from FS21

Firmware version

V2.0 or higher

Usable BaseUnits

BU type A0

Color code for module-specific color-coded label

CC01

Product function — I&M data

Yes; I&M0 to I&M3

Engineering with — STEP 7 TIA Portal configurable/integrated from version

V19

Engineering with — STEP 7 configurable/integrated from version

V5.5 SP3 / -

Engineering with — PROFIBUS from GSD version/GSD revision

GSD Revision 5

Engineering with — PROFINET from GSD version/GSD revision

GSDML V2.42

Rated value (DC)

24 V

Permissible range, lower limit (DC)

19.2 V

Permissible range, upper limit (DC)

28.8 V

Current consumption, max.

70 mA

Number of outputs

8

NAMUR encoder supply — Output current per channel, max.

8 mA

NAMUR encoder supply — Output current per module, max.

64 mA

Power loss, typ.

1.5 W

Address space per module — Address space per module, max.

1 byte

Address space per module — Inputs

42 byte; 1 byte + 1 byte for QI information in DI mode; 42 bytes in Counter mode

Address space per module — Outputs

20 byte; 0 in DI mode; 20 bytes in Counter mode

Submodules — Number of configurable submodules, max.

1

Selection of BaseUnit for connection variants — 2-wire connection

BU type A0

Selection of BaseUnit for connection variants — 3-wire connection

BU type A0

Number of digital inputs

8; NAMUR

Sourcing/sinking input

P-reading

Pulse extension

Yes; 0.5 s, 1 s, 2 s

Signal change flutter

Yes; 2 to 32 signal changes

Flutter observation window

Yes; 0.5 s, 1 s to 100 s in 1-s steps

Digital input functions, parameterizable — Number, max.

4; See manual for details

Digital input functions, parameterizable — Counting frequency, max.

5 kHz

Digital input functions, parameterizable — Counting width

32 bit

Input voltage — Rated value (DC)

8.2 V

For 10 k switched contact — for signal "0", min.

0.35 mA

For 10 k switched contact — for signal "0", max.

1.2 mA

For 10 k switched contact — for signal "1", min.

2.1 mA

For 10 k switched contact — for signal "1", max.

7 mA

For unswitched contact — for signal "0", max. (permissible quiescent current)

0.5 mA

For unswitched contact — for signal "1", typ.

8 mA

For NAMUR encoders — for signal "0", min.

0.35 mA

For NAMUR encoders — for signal "0", max.

1.2 mA

For NAMUR encoders — for signal "1", min.

2.1 mA

For NAMUR encoders — for signal "1", max.

7 mA

Input delay (for rated value of input voltage) — tolerated changeover time for changeover contacts

300 ms

For NAMUR inputs — at "0" to "1", max.

20 ms; See manual for details

For NAMUR inputs — at "1" to "0", max.

20 ms; See manual for details

Cable length — shielded, max.

200 m; 50 m for Counter mode

Alarms — Hardware interrupt

Yes; Parameterizable, channels 0 to 7

Diagnostics indication LED — Monitoring of the supply voltage (PWR-LED)

Yes; green PWR LED

Isolation tested with

707 V DC (type test)

Ambient temperature during operation — horizontal installation, min.

-30 °C

Ambient temperature during operation — horizontal installation, max.

60 °C

Ambient temperature during operation — vertical installation, min.

-30 °C

Ambient temperature during operation — vertical installation, max.

50 °C

Altitude during operation relating to sea level — Installation altitude above sea level, max.

5 000 m; Restrictions for installation altitudes > 2 000 m, see manual

Absolute humidity — dew point, min.

-60 °C; suitable for dry room applications

Dimensions — Width

15 mm

Dimensions — Height

73 mm

Dimensions — Depth

58 mm

Weight, approx.

32 g

Supporting protocol for EtherCAT

Yes

Voltage type (supply voltage)

DC

Digital outputs configurable

No

Type of voltage (input voltage)

DC

Type of digital output

None

Short-circuit protection, outputs available

No

Degree of protection (IP)

IP20

Explosion safety category for gas

ATEX gas-ex-protection, Cat. 3G

Explosion safety category for dust

None

Width

15 mm

Height

73 mm

Depth

58 mm

Country of origin

Germany

HS Code

8538.90
