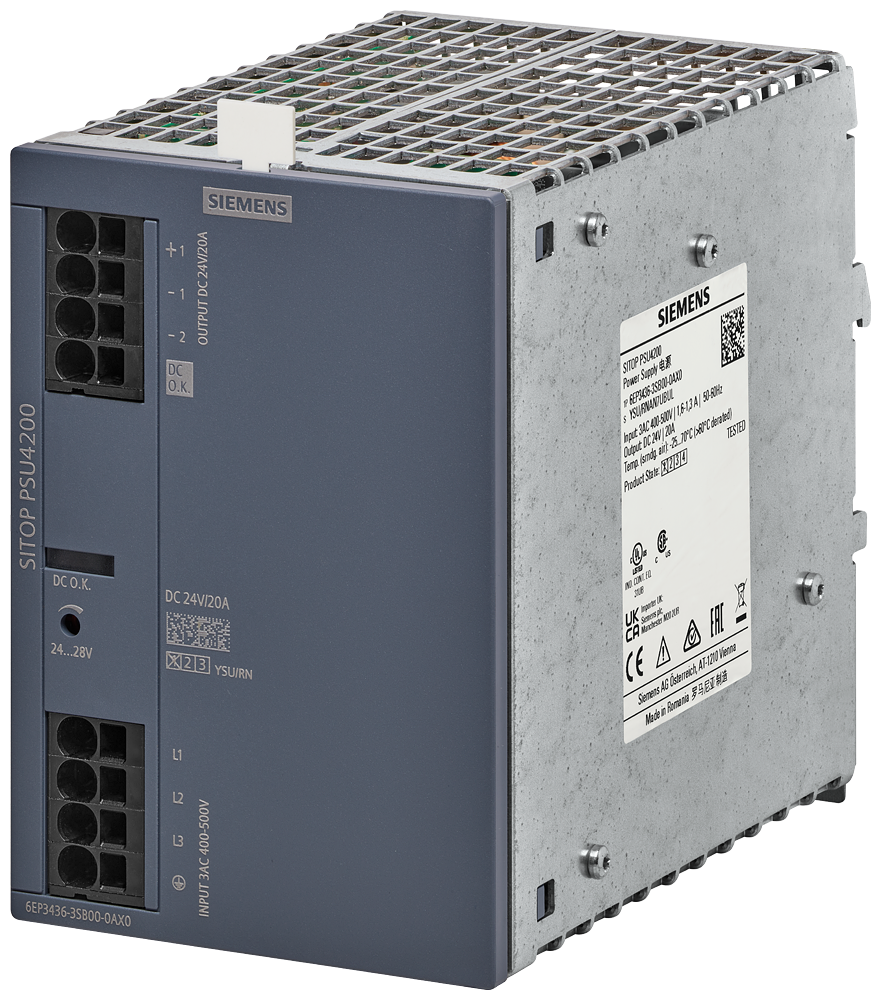

Siemens SITOP PSU4200/3AC/24VDC/20A Stabilized Power Supply

Siemens 6EP3436-3SB00-0AX0 — SITOP DC power supply. DIN-rail primary-switched regulated 24 VDC power supply for automation panels. SITOP PSU4200 3AC 20A input: 400 - 500V AC output: 24V DC/20A.

Manufacturer part number (MPN)

6EP3436-3SB00-0AX0 EAN / GTIN: 4025515156260 Sales unit: pcs Type of the power supply network: 3-phase AC Supply voltage at AC — minimum rated value: 400 V Supply voltage at AC — maximum rated value: 500 V Supply voltage at AC — initial value: 320 V Supply voltage at AC — full-scale value: 550 V Buffering time for rated value of the output current in the event of power failure minimum: 5 ms Operating condition of the mains buffering: at Vin = 400/500 V Line frequency: 50/60 Hz Input current — at rated input voltage 400 V: 1.4 A Input current — at rated input voltage 500 V: 1.2 A Current limitation of inrush current at 25 °C maximum: 36 A Duration of inrush current limiting at 25 °C — typical: 20 ms I2t value maximum: 0.9 A²·s Fuse protection type in the feeder: three-poled coupled circuit breaker from 6 A characteristic C to 16 A characteristic C or circuit breaker 3RV2011-1GA10 (setting 6 A) or 3RV2711-1GD10 (UL 489) Output voltage at DC rated value: 24 V Output voltage — at output 1 at DC rated value: 24 V Adjustable output voltage: 24 ... 28 V Relative overall tolerance of the voltage: 3 % Relative control precision of the output voltage — on slow fluctuation of input voltage: 0.2 % Relative control precision of the output voltage — on slow fluctuation of ohm loading: 0.3 % Voltage peak — maximum: 240 mV Voltage peak — typical: 10 mV Display version for normal operation: Green LED for 24 V OK Type of signal at output: Signal contact (signal load capacity: 5 mA) for DC OK Behavior of the output voltage when switching on: Overshoot of Vout approx. 1 % Response delay maximum: 1.5 s Voltage increase time of the output voltage — typical: 230 ms Voltage increase time of the output voltage — maximum: 500 ms Output current — rated value: 20 A Output current — rated range: 0 ... 20 A; +55 ... +70 °C: Derating 2%/K Supplied active power typical: 480 W Number of parallel-switched equipment resources for increasing the power: 2 Efficiency in percent: 91 % Power loss [W] — at rated output voltage for rated value of the output current typical: 48 W Power loss [W] — during no-load operation maximum: 3.5 W Relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical: 0.2 % Relative control precision of the output voltage load step of resistive load 50/100/50 % typical: 0.5 % Relative control precision of the output voltage at load step of resistive load 10/90/10 % typical: 1 % Setting time — load step 10 to 90% typical: 1 ms Setting time — load step 90 to 10% typical: 1 ms Design of the overvoltage protection: < 32 V Design of short-circuit protection — typical: 23.4 A Enduring short circuit current RMS value — typical: 23.5 A Galvanic isolation: Output voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7) Leakage current — maximum: 0.8 mA Leakage current — typical: 0.4 mA Protection class IP: IP20 Ambient temperature — during operation: -25 ... +70 °C; with natural convection Ambient temperature — during transport: -40 ... +85 °C Ambient temperature — during storage: -40 ... +85 °C Type of electrical connection — at input: L1, L2, L3 PE: push-in for 0.5 ... 4 mm² Type of electrical connection — at output: +, -: push-in for 0.5 ... 6 mm² Type of electrical connection — for signaling contact: 13 14: push-in for 0.2 ... 1.5 mm² Width × height × depth of the enclosure: 95 × 135 × 150 mm Installation width × mounting height: 95 mm × 225 mm Required spacing — top: 45 mm Required spacing — bottom: 45 mm Required spacing — left: 0 mm Required spacing — right: 0 mm Mechanical data — net weight: 1.66 kg Voltage type (supply voltage): AC 1st secondary output voltage: 24 V Max. output current 1: 20 A Secondary voltage adjustable: Yes Nominal value output voltage 1: 24 V Nominal value output current 1: 20 A Short-circuit-proof: Yes Rated supply voltage AC 50 Hz: 500 V Rated supply voltage AC 60 Hz: 400 V Output voltage stabilized: Yes Power output: 480 W Stabilized: Yes Type of electric connection: Spring clamp connection Suitable for rail mounting: Yes Wall mounting possible: No Suitable for distribution board: Yes Built-in width: 95 mm Built-in height: 225 mm Direct mounting possible: No Width: 95 mm Height: 135 mm Depth: 150 mm Degree of protection (IP): IP20 Suitable for wall mounting: No Country of origin: Austria

HS Code

8530.90

• EAN 4025515156260
• SAP 1200746845
• Code 83882764
