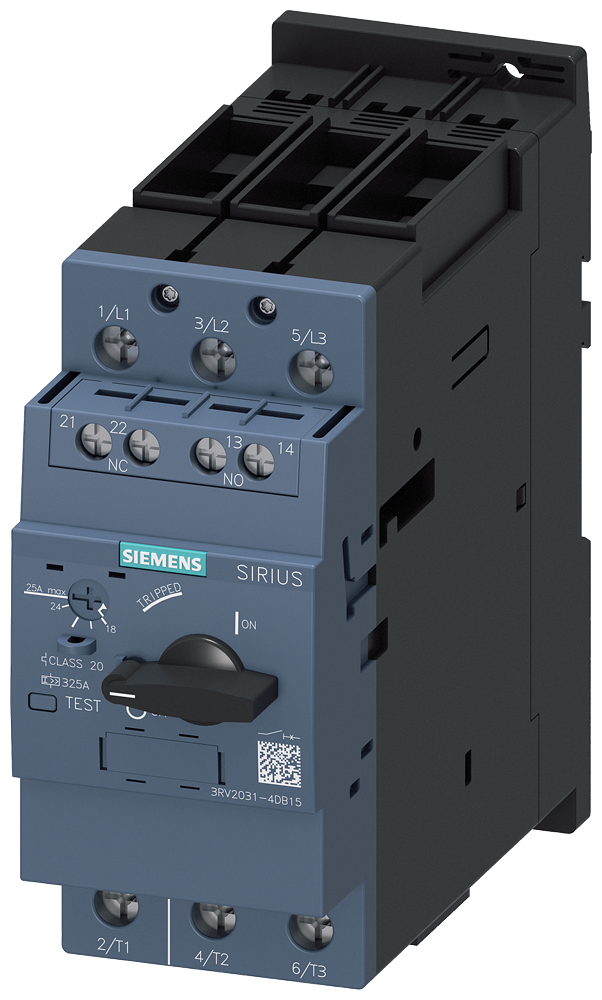

Siemens SIRIUS Motor protection circuit breaker,18 3RV2031-4DB15
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RV2031-4DB15 SIRIUS Motor protection circuit breaker,18.25A.
Technical Specifications
- Manufacturer part number (MPN)
- 3RV2031-4DB15
- EAN / GTIN
- 4047621001579
- HS code
- 8536.90
- Sales unit
- pcs
- Width
- 55 mm
- Height
- 140 mm
- Depth
- 149 mm
- Rated operation power at AC-3, 400 V
- 11 kW
- With integrated auxiliary switch
- Yes
- Rated permanent current Iu
- 25 A
- With integrated under voltage release
- No
- Number of poles
- 3
- Rated operating voltage
- 690 V
- Overload release current setting
- 18–25 A
- Power loss
- 14.5 W
- Degree of protection (IP)
- IP20
- With thermal overload protection
- Yes
- Type of electrical connection of main circuit
- Screw connection
- Switch off technique
- Magnetic
- Rated operation power at AC-3, 230 V
- 5.5 kW
- Rated short-circuit breaking capacity Icu at 400 V, AC
- 65 kA
- Adjustment range undelayed short-circuit release
- 325 A
- Phase failure sensitive
- Yes
- Device construction
- Built-in device fixed built-in technique
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4047621001579
- SAP 1000668227
- Code 8262995
Product Documentation
More from Siemens
Siemens
Siemens MCCB_3VA21_3P_55KA_ETU860M,LSIG,IN=40A,IR=16A-40A,ISD=1,2-15XIN,II=15XIN,IG=0,2-1XIN,,B
3VA2140-5MQ32-0AA0
Siemens

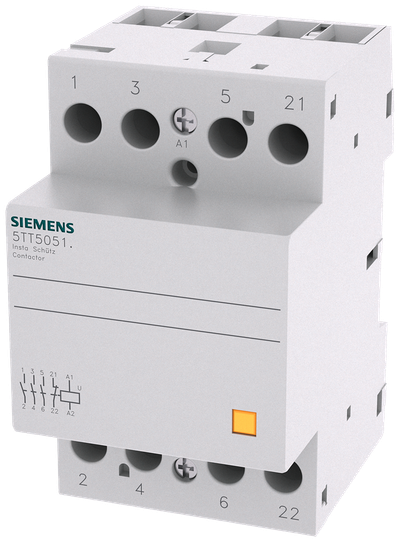

Siemens Contactor with 3 NO kont 5TT5051-0
Siemens

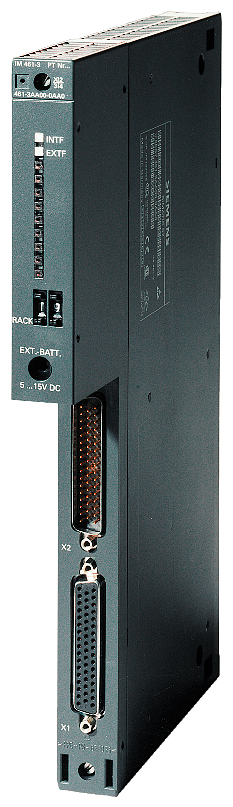

Siemens SIMATIC S7 automation module 6ES7468-1BF00-0AA0
Siemens

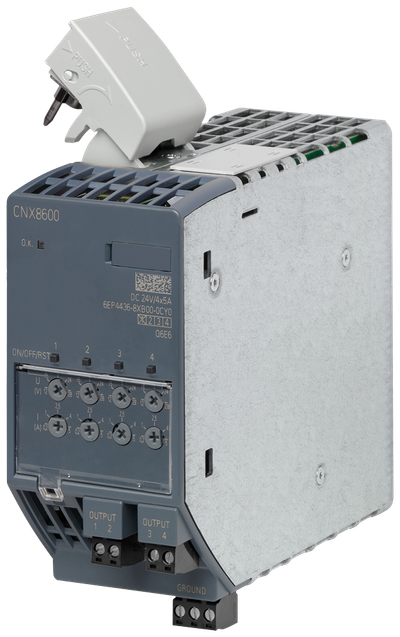

Siemens SITOP DC power supply 6EP4436-8XB00-0CY0
Siemens

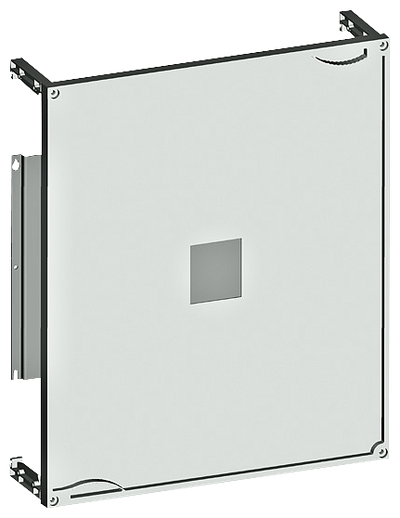

Siemens ALPHA 400/ 630 DIN MCCB- KIT 2 X 3VT1 3 + 4 Pole, Vertical mounting H=300/ B=250
8GK4710-2KK10
Siemens

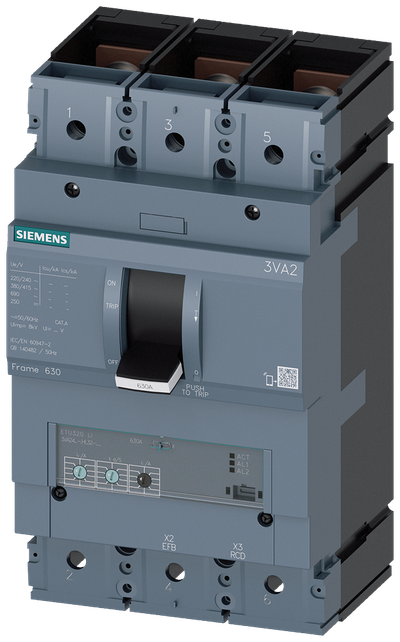

Siemens MCCB_3VA24_3P_55KA_ETU320,LI,IN=630A,IR=252A-630A,II=10XIN,B
3VA2463-5HL32-0AA0
Siemens

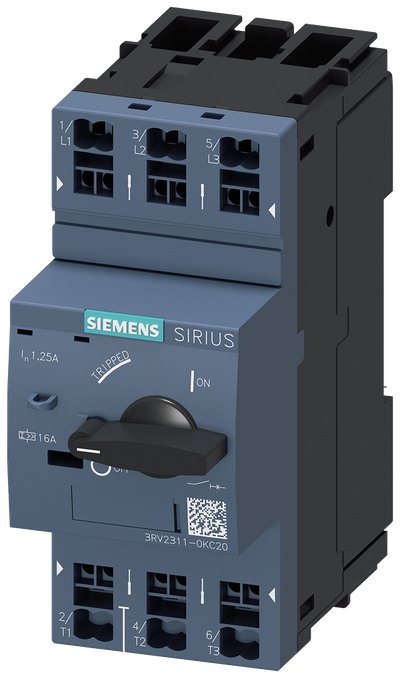

Siemens Circuit breaker 1 3RV2311-0KC20
Siemens

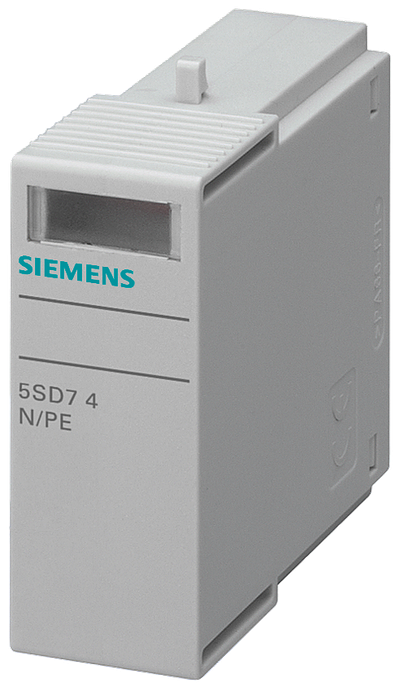

Siemens 5SD74880
