Siemens SIRIUS ACT Emergency Stop Mushroom Actuator 40 mm Red 1 NC

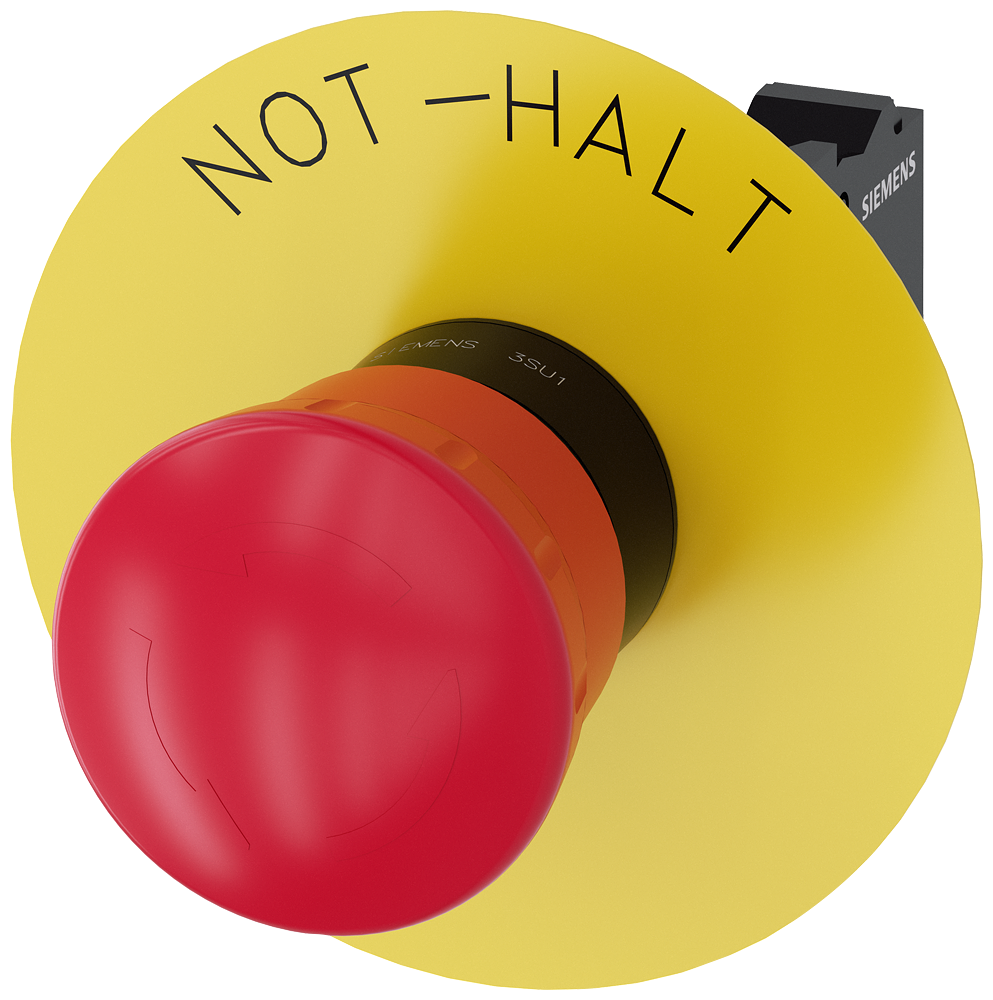

Siemens 3SU1100-1HB20-3CH0 SIRIUS ACT 22 mm complete emergency-stop actuator with a 40 mm red mushroom head and rotate-to-unlatch positive latching per EN ISO 13850. Fitted with a yellow backing plate inscribed NOT-HALT, plastic holder and one NC spring-type contact block.

Manufacturer part number (MPN)

3SU1100-1HB20-3CH0

EAN / GTIN

4011209957831

Sales unit

pcs

Product brand name

SIRIUS ACT

Product designation

EMERGENCY STOP mushroom pushbuttons

Design of the product

Complete unit

Product type designation

3SU1

Product line

Plastic, black, 22 mm

Number of command points

1

Design of the actuating element

positive latching

Principle of operation of the actuating element

latching

Outer diameter of the actuating element

40 mm

Number of contact modules

1

Number of LED modules

0

Insulation voltage rated value

500 V

Degree of pollution

3

Type of voltage of the operating voltage

AC/DC

Surge voltage resistance rated value

6 kV

Protection class IP

IP66, IP67, IP69(IP69K)

Protection class IP of the terminal

IP20

Degree of protection NEMA rating

1, 2, 3, 3R, 4, 4X, 12, 13

Shock resistance — according to IEC 60068-2-27

sinusoidal half-wave 15 g / 11 ms

Shock resistance — for railway applications according to EN 61373

Category 1, Class B

Vibration resistance — according to IEC 60068-2-6

10 ... 500 Hz: 5 g

Vibration resistance — for railway applications according to EN 61373

Category 1, Class B

Operating frequency maximum

600 1/h

Mechanical service life (operating cycles) typical

300 000

Electrical endurance (operating cycles) typical

300 000

Thermal current

10 A

Continuous current of the C characteristic MCB

10 A; for a short-circuit current smaller than 400 A

Continuous current of the quick DIAZED fuse link

10 A

Continuous current of the DIAZED fuse link gG

10 A

General technical data — Net Weight

82 g

At AC — at 50 Hz rated value

5 ... 500 V

At AC — at 60 Hz rated value

5 ... 500 V

At AC — at DC rated value

5 ... 500 V

Contact reliability

One maloperation per 100 million (17 V, 5 mA), one maloperation per 10 million (5 V, 1 mA)

Design of the contact of auxiliary contacts

Silver alloy

Number of NC contacts for auxiliary contacts

1

Number of NO contacts for auxiliary contacts

0

Type of electrical connection — of modules and accessories

Spring-type terminal

Type of connectable conductor cross-sections — solid without core end processing

2x (0.25 ... 1.5 mm²)

Type of connectable conductor cross-sections — finely stranded with core end processing

2x (0.25 ... 0.75 mm²)

Type of connectable conductor cross-sections — finely stranded without core end processing

2x (0.25 ... 1.5 mm²)

Type of connectable conductor cross-sections — for AWG cables

2x (24 ... 16)

Tightening torque of the screws in the bracket

1 ... 1.2 N·m

Service life maximum

20 a

Proportion of dangerous failures — with low demand rate according to SN 31920

20 %

Proportion of dangerous failures — with high demand rate per NC contact according to SN 31920

20 %

B10 value with high demand rate according to SN 31920

100 000

Failure rate [FIT] with low demand rate per NC contact according to SN 31920

100 FIT

Device type according to ISO 13849-1

3

T1 value for proof test interval or service life according to IEC 61508

20 a

Ambient temperature — during operation

-25 ... +70 °C

Ambient temperature — during storage

-40 ... +80 °C

Installation/ mounting/ dimensions — height

40 mm

Installation/ mounting/ dimensions — width

30 mm

Mounting diameter

22.3 mm

Positive tolerance of installation diameter

0.4 mm

Mounting height

46.4 mm

Installation width

75 mm

Installation depth

48.6 mm

Number of backing plates

1

Hole diameter

22.3 mm

Colour button

Red

Number of command positions

1

Type of button

Mushroom

Width opening

75 mm

Height opening

46.4 mm

Degree of protection (IP)

IP67/IP69K

Number of contacts as normally closed contact

1

Country of origin

Germany

HS Code

8536.50
