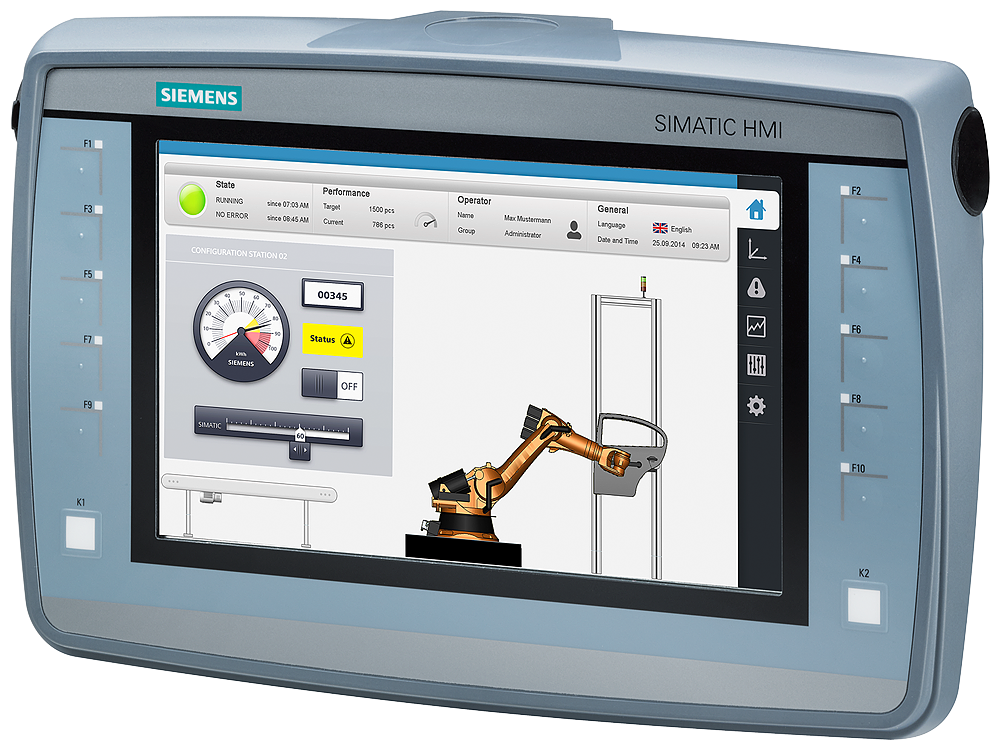

Siemens KTP900 Mobile Panel 9", Profinet interface

Siemens 6AV2125-2JB03-0AX0 KTP900 Mobile Panel 9", Profinet interface.

Manufacturer part number (MPN)

6AV2125-2JB03-0AX0

EAN / GTIN

4047623404781

Sales unit

pcs

Product type designation

KTP900 Mobile

Screen diagonal

9 in

Number of colors

16 777 216

Resolution (pixels) — Horizontal image resolution

800 pixel

Resolution (pixels) — Vertical image resolution

480 pixel

Backlighting — MTBF backlighting (at 25 °C)

50 000 h

Backlighting — Backlight dimmable

Yes; 0-100 %

Function keys — Number of function keys

10

Function keys — Number of function keys with LEDs

10

DP direct LEDs (LEDs as S7 output I/O) — F1...Fx

10

Direct keys (keys as S7 input I/O) — F1...Fx

10

Direct keys (keys as S7 input I/O) — Direct keys (touch buttons as S7 input I/O)

32

Rated value (DC)

24 V

Permissible range, lower limit (DC)

19.2 V

Permissible range, upper limit (DC)

28.8 V

Current consumption (rated value)

450 mA

Starting current inrush I²t

0.135 A²·s

Active power input, typ.

11 W

Memory available for user data

12 Mbyte

Number of industrial Ethernet interfaces

1

Number of PROFINET interfaces

1

Number of RS 485 interfaces

0

Number of RS 422 interfaces

0

Number of RS 232 interfaces

0

Number of USB interfaces

1; USB 2.0

Number of wireless interfaces

0

Number of SD card slots

1

Free fall — Fall height, max.

1.2 m

Ambient temperature during operation — min.

0 °C

Ambient temperature during operation — max.

45 °C

Ambient temperature during storage/transportation — min.

-20 °C

Ambient temperature during storage/transportation — max.

60 °C

Relative humidity — Operation, max.

90 %

Online languages — Number of online/runtime languages

32

Project languages — Languages per project

32

Help system — Number of characters per info text

500

Multiproject — Number of projects (internal)

0

Multiproject — Number of projects (external)

0

Message system — Number of alarm classes

32

Bit messages — Number of bit messages

4 000

Analog messages — Number of analog messages

200

Analog messages — Number of characters per message

80

Analog messages — Number of process values per message

8

Message buffer — Number of entries

1 024

Recipe management — Number of recipes

300

Recipe management — Size of internal recipe memory

2 Mbyte

Variables — Number of variables per device

2 048

Variables — Number of variables per screen

400

Images — Number of configurable images

500

Image objects — Number of objects per image

400

Complex image objects — Number of complex objects per screen

20

Lists — Number of text lists per project

500

Lists — Number of entries per text strip

500

Lists — Number of graphics lists per project

500

Lists — Number of entries per graphics strip

500

Archiving — Number of archives per device

50

Archiving — Number of entries per archive

20 000

Security — Number of user groups

50

Security — Number of user rights

32

Security — Number of users

50

Supporting protocol for EtherCAT

No

Voltage type (supply voltage)

DC

Number of HW-interfaces industrial Ethernet

1

Number of interfaces PROFINET

1

Number of HW-interfaces USB

1

Type of display

TFT

Number of colours of the display

16777216

Number of pixels, horizontal

800

Number of pixels, vertical

480

Usable project memory/user memory

12000 kByte

Number of function buttons, programmable

10

Number of buttons with LED

10

Number of password levels

50

Number of online languages

32

Degree of protection (IP)

IP65

Max. fall height according to IEC 60068-2-32

1.2 m

Width

307.5 mm

Height

201 mm

Depth

91 mm

Weight

1.5 kg

Country of origin

Germany

HS Code

8537.10

• EAN 4047623404781
• SAP 1000702385
• Code 8419928
