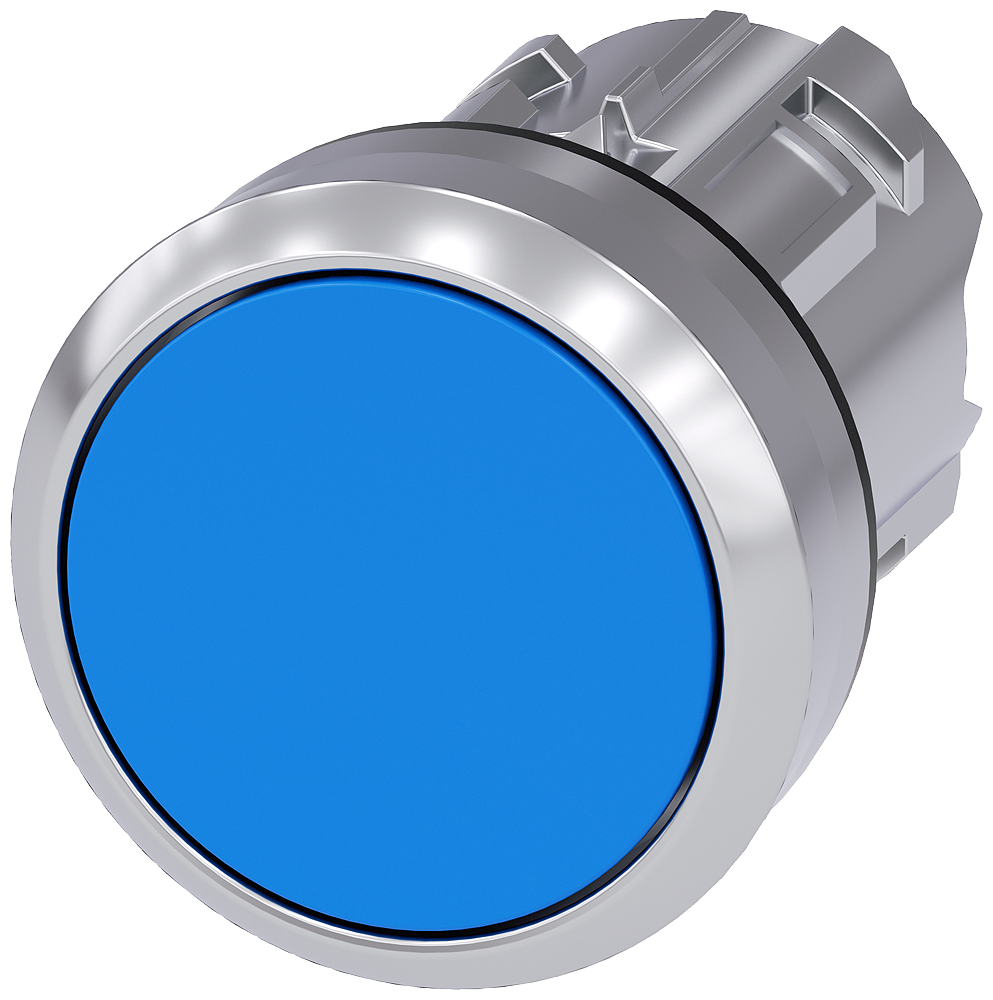

Siemens SIRIUS Pushbutton, 22 mm, round, metal, shiny, blue, pushbutton, flat, latching, Push-to-release mechanism
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3SU1050-0AA50-0AA0 — SIRIUS ACT 22 mm command and signalling device. Panel-mount pushbutton, indicator lamp or emergency-stop actuator in the 22 mm cutout family. SIRIUS ACT Control and signalling devices, 22mm blank metal design Push-Button Head,blue, holdekontakt.
Technical Specifications
- Manufacturer part number (MPN)
- 3SU1050-0AA50-0AA0
- EAN / GTIN
- 4011209964952
- Sales unit
- pcs
- Product brand name
- SIRIUS ACT
- Product designation
- Pushbuttons
- Design of the product
- Actuating/signaling element
- Product type designation
- 3SU1
- Product line
- Metal, shiny, 22 mm
- Number of command points
- 1
- Design of the actuating element
- Flat button
- Principle of operation of the actuating element
- latching
- Product extension optional — light source
- No
- Product extension optional — contact module
- Yes
- Color of the actuating element
- blue
- Material of the actuating element
- plastic
- Shape of the actuating element
- round
- Outer diameter of the actuating element
- 29.5 mm
- Type of unlocking device
- push-to-unlatch mechanism
- Product component front ring
- Yes
- Design of the front ring
- Standard
- Material of the front ring
- Metal, high gloss
- Color of the front ring
- silver
- Protection class IP
- IP66, IP67, IP69(IP69K)
- Degree of protection NEMA rating
- 1, 2, 3, 3R, 4, 4X, 12, 13
- Shock resistance — according to IEC 60068-2-27
- sinusoidal half-wave 15 g / 11 ms
- Vibration resistance — according to IEC 60068-2-6
- 10 ... 500 Hz: 5 g
- Operating frequency maximum
- 1 800 1/h
- Mechanical service life (operating cycles) typical
- 500 000
- Reference code according to IEC 81346-2
- S
- General technical data — Net Weight
- 37 g
- Ambient temperature — during operation
- -25 ... +70 °C
- Ambient temperature — during storage
- -40 ... +80 °C
- Installation/ mounting/ dimensions — height
- 29.5 mm
- Installation/ mounting/ dimensions — width
- 29.5 mm
- Shape of the installation opening
- round
- Mounting diameter
- 22.3 mm
- Positive tolerance of installation diameter
- 0.4 mm
- Mounting height
- 11 mm
- Installation width
- 29.5 mm
- Installation depth
- 24.3 mm
- Hole diameter
- 22.3 mm
- Colour button
- Blue
- Number of command positions
- 1
- Labelled
- No
- Width opening
- 29.5 mm
- Height opening
- 11 mm
- With protective cover
- No
- Material front ring
- Metal
- Construction type lens
- Round
- Country of origin
- Netherlands
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4011209964952
- SAP 1000700233
- Code 8314646
Product Documentation
More from Siemens
Siemens

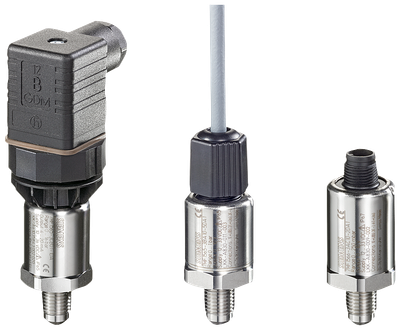

Siemens SITRANS pressure transmitter 7MF1567-3BG00-1EA1
Siemens

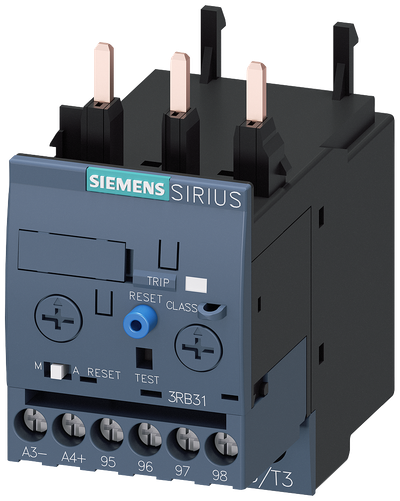

Siemens SIRIUS 3RB3 Electronic Overload Relay 6...25 A, Size S0, Class 5...30, Main Screw, Aux Screw, Ground Fault Detection
3RB3123-4QB0
Siemens

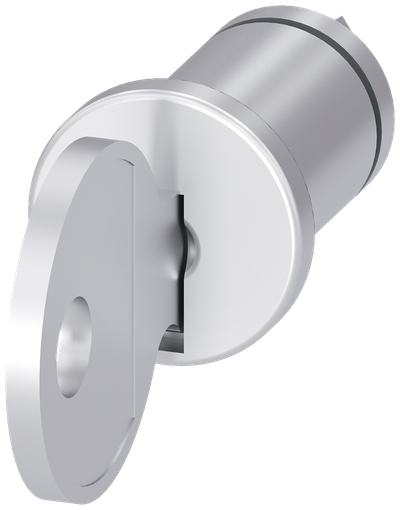

Siemens SENTRON 3VA9980-0VL40 — Cylinder lock (RONIS)
Siemens

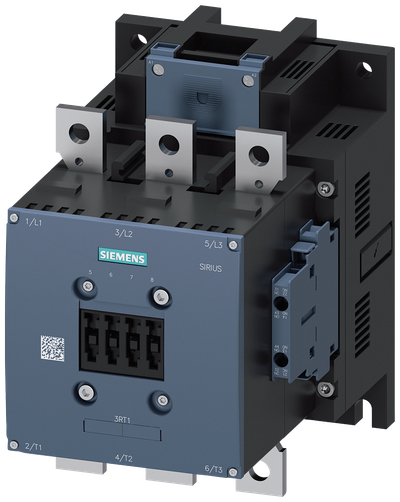

Siemens S10 contactor, 160KW/400V/AC-3 3RT1066-6AB36
Siemens
Siemens Holder for Copper Busbar 3WL II 3/4-Pole 25x25 mm B800
8PQ6000-4BA38
Siemens

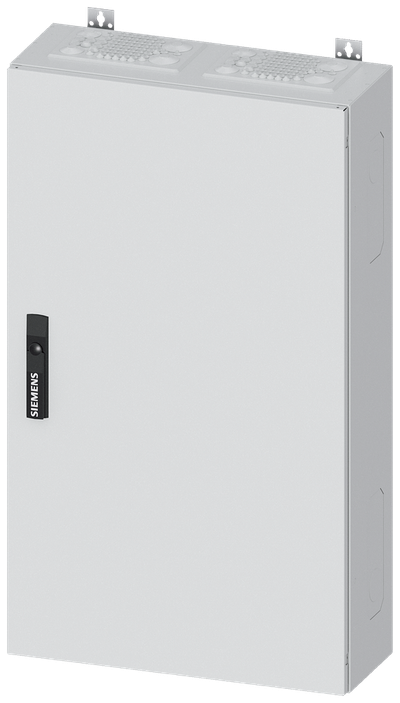

Siemens ALPHA 400, wall-mount cabinet, IP43, safety class 2, H: 950 mm, W: 550 mm, D: 210 mm, RAL 9016
8GK1132-4KA22
Siemens

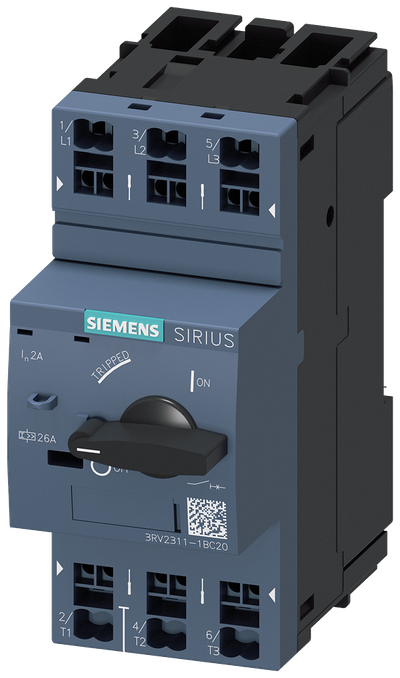

Siemens Circuit breaker 2 A Spring terminals
3RV2311-1BC20
Siemens

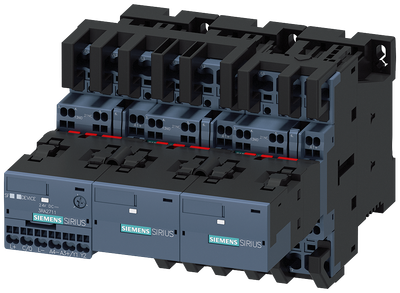

Siemens SIRIUS Contactor assembly for star-delta (wye-delta) start, I/O-Link AC-3, 15/18.5 kW/400 V, 24 V DC 3-Pole, size S0 Spring-type terminals electrical and mechanical interlock 3 NO + 3 NC integrated
