Siemens Circuit breaker 2 A Spring terminals
Pricing
Request a quote
We reply within 24 hours
Product Description

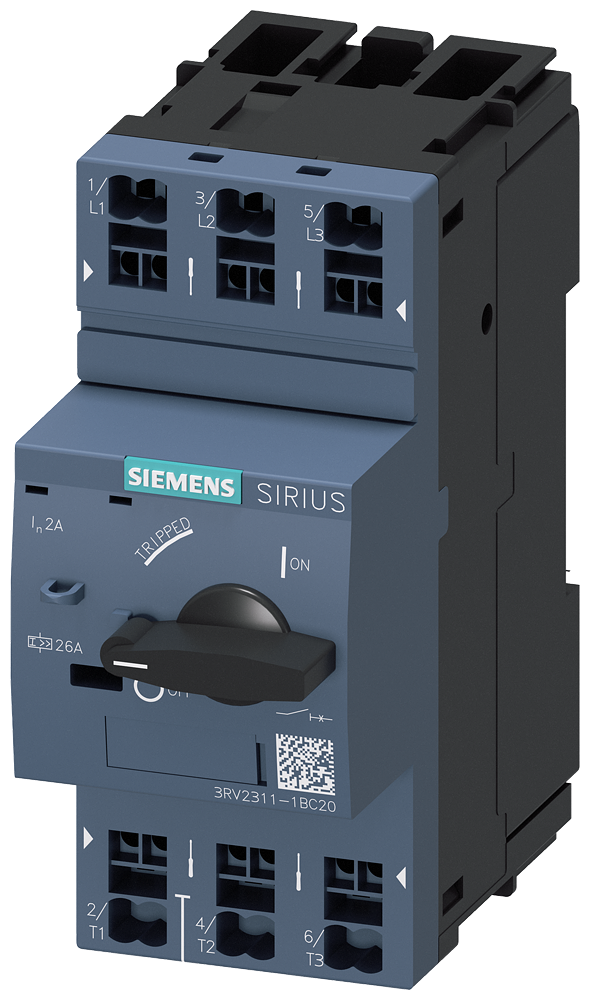

Siemens 3RV2311-1BC20 Circuit breaker 2 A Spring terminals.
Technical Specifications
- Manufacturer part number (MPN)
- 3RV2311-1BC20
- EAN / GTIN
- 4011209766679
- HS code
- 8536.90
- Sales unit
- pcs
- Rated current
- 2 A
- Width
- 45 mm
- Height
- 106 mm
- Depth
- 97 mm
- Rated operation power at AC-3, 400 V
- 0.75 kW
- Rated permanent current Iu
- 2 A
- Number of poles
- 3
- Power loss
- 7.25 W
- Degree of protection (IP)
- IP20
- With thermal overload protection
- No
- Type of electrical connection of main circuit
- Spring clamp connection
- Switch off technique
- Magnetic
- Rated operation power at AC-3, 230 V
- 0.37 kW
- Rated short-circuit breaking capacity Icu at 400 V, AC
- 100 kA
- Device construction
- Built-in device fixed built-in technique
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011209766679
- SAP 1000097877
- Code 8939884
Product Documentation
More from Siemens
Siemens
Siemens SIRIUS Contactor assembly for star-delta (wye-delta) start, I/O-Link AC-3, 15/18.5 kW/400 V, 24 V DC 3-Pole, size S0 Spring-type terminals electrical and mechanical interlock 3 NO + 3 NC integrated
3RA2425-8XE32-2BB4
Siemens
Siemens S3, Motor Protection Circuit Breaker FOR Motorprotection 3RV2041-4KA10
Siemens
Siemens SENTRON 3VA9267-0EK27 — Front-mounted rotary operating mechanism (door-interlock), 3VA20 / 3VA21 / 3VA22
Siemens
Siemens S3, Motor Protection Circuit Breaker FOR Motorprotection 3RV2142-4MA10
Siemens
Siemens SIRIUS Selector switch, illuminable, 30 mm, round, metal, matte, red, selector switch, short, front ring for flush installation, 3 switch positions I>O<II, momentary contact type, actuating angle 2X45°, 10:30H/12H/13:30H
3SU1062-2DM20-0AA0
Siemens
Siemens 3-Phase terminal, for 3-Phase busbars, for S0 and S00, tilkob
3RV1915-5A
Siemens
Siemens 3RT1966-6V Vacuum Interrupter Tube for 3RT Contactor Size S10
Siemens
Siemens SENTRON 3VA9987-0UB10 — Connecting cable for the EFB300 expansion module
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 3RV2311-1BC20?
- 3RV2311-1BC20 can be ordered from cballast.com as a Siemens catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Siemens product?
- The manufacturer part number is 3RV2311-1BC20.
- What is the HS code for 3RV2311-1BC20?
- The customs tariff (HS) code for 3RV2311-1BC20 is 8536.90.
- Who manufactures 3RV2311-1BC20?
- 3RV2311-1BC20 is a Siemens product in the Electrical Components range.
- Is a datasheet available for 3RV2311-1BC20?
- Yes — the 3RV2311-1BC20 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 3RV2311-1BC20?
- The minimum order quantity is 1.
- Is 3RV2311-1BC20 available?
- Yes — 3RV2311-1BC20 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
