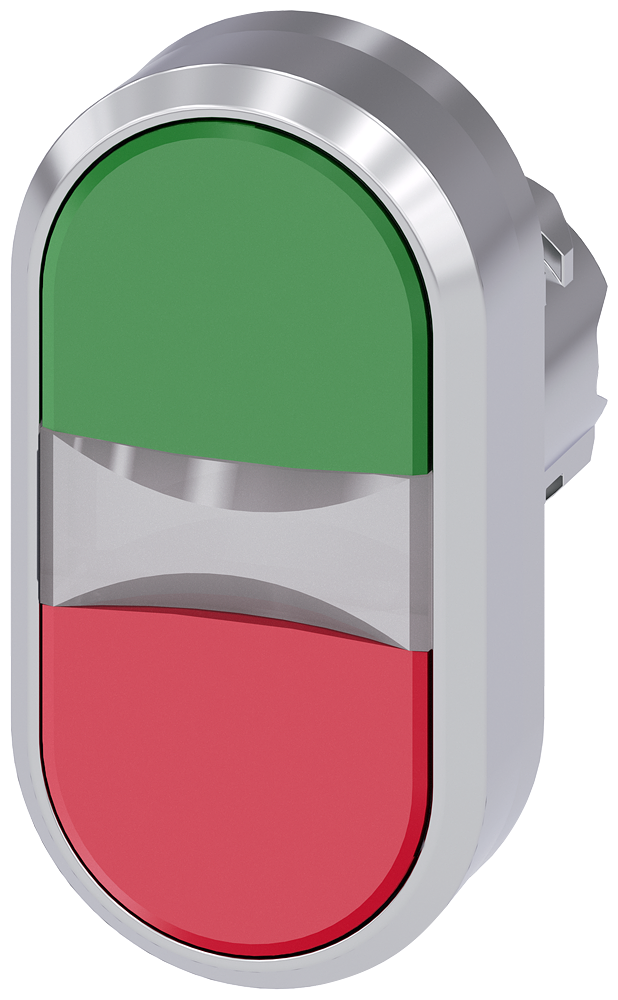

Siemens SIRIUS Twin pushbutton, 22 mm, round, metal, shiny, green, red, pushbuttons, flat
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3SU1050-3AB42-0AA0 — SIRIUS ACT 22 mm command and signalling device. Panel-mount pushbutton, indicator lamp or emergency-stop actuator in the 22 mm cutout family. SIRIUS ACT Control and signalling devices, 22mm blank metal design Twin push-button head, red,green.
Technical Specifications
- Manufacturer part number (MPN)
- 3SU1050-3AB42-0AA0
- EAN / GTIN
- 4011209962828
- Sales unit
- pcs
- Product brand name
- SIRIUS ACT
- Product designation
- Twin pushbuttons
- Design of the product
- Actuating/signaling element
- Product type designation
- 3SU1
- Product line
- Metal, shiny, 22 mm
- Number of command points
- 1
- Design of the actuating element
- Flat buttons
- Principle of operation of the actuating element
- momentary contact type
- Product extension optional — light source
- No
- Product extension optional — contact module
- Yes
- Color of the actuating element
- green / red
- Material of the actuating element
- plastic
- Shape of the actuating element
- oval
- Product component front ring
- Yes
- Design of the front ring
- Standard
- Material of the front ring
- Metal, high gloss
- Color of the front ring
- silver
- Protection class IP
- IP66, IP67, IP69(IP69K)
- Degree of protection NEMA rating
- 1, 2, 3, 3R, 4, 4X, 12, 13
- Shock resistance — according to IEC 60068-2-27
- sinusoidal half-wave 15 g / 11 ms
- Vibration resistance — according to IEC 60068-2-6
- 10 ... 500 Hz: 5 g
- Operating frequency maximum
- 3 600 1/h
- Mechanical service life (operating cycles) typical
- 2 000 000
- Reference code according to IEC 81346-2
- S
- General technical data — Net Weight
- 0.066 kg
- Ambient temperature — during operation
- -25 ... +70 °C
- Ambient temperature — during storage
- -40 ... +80 °C
- Installation/ mounting/ dimensions — height
- 57.9 mm
- Installation/ mounting/ dimensions — width
- 29.9 mm
- Shape of the installation opening
- round
- Mounting diameter
- 22.3 mm
- Positive tolerance of installation diameter
- 0.4 mm
- Mounting height
- 14.4 mm
- Installation width
- 29.9 mm
- Installation depth
- 25.7 mm
- Hole diameter
- 22.3 mm
- Colour button
- Red/green
- Number of command positions
- 1
- Labelled
- No
- Width opening
- 29.9 mm
- Height opening
- 14.4 mm
- With protective cover
- No
- Material front ring
- Metal
- Construction type lens
- Oval
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4011209962828
- SAP 1000706887
- Code 8199008
Product Documentation
More from Siemens
Siemens
Siemens MCCB_3VA21_4P_55KA_ETU550,LSI,IN=63A,IR=25A-63A,ISD=0,6-10XIN,II=1,5-12XIN,B
3VA2163-5JP42-0AA0
Siemens

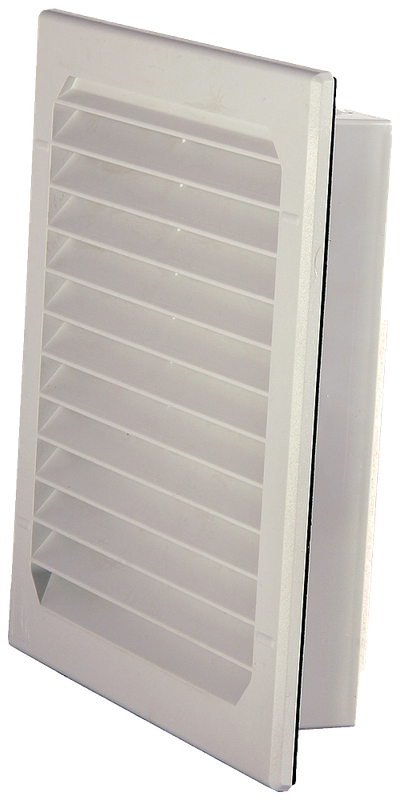

Siemens 8MR6400-5GV30 Exhaust Filter 177 mm ST4 IP54
Siemens

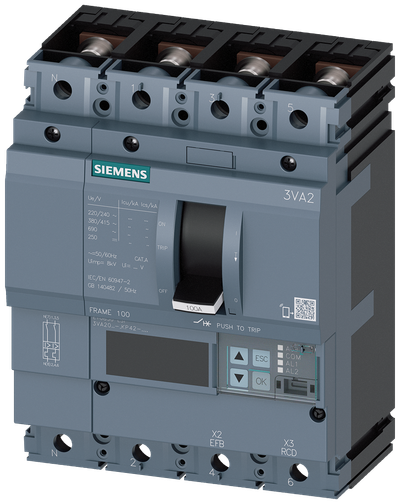

Siemens MCCB_3VA20_4P_55KA_ETU850,LSI,IN=25A,IR=10A-25A,ISD=0,6-10XIN,II=1,5-12XIN,B
3VA2025-5KP42-0AA0
Siemens

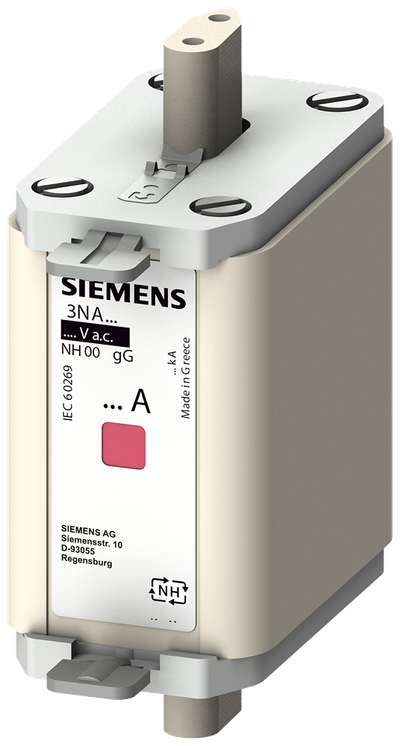

Siemens 3NA6817-6
Siemens

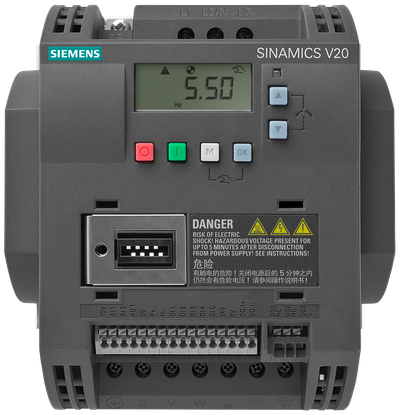

Siemens Sinamics V20 3AC380-480V 11kW Integrated EMC-filter C3 USS/ MODBUS IP20 FSD
6SL3210-5BE31-1CV0
Siemens

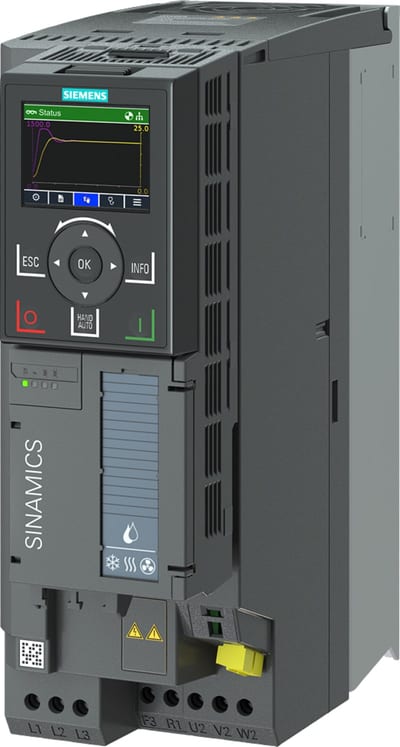

Siemens Variable-frequency drive for pump- and fan drive 6SL3220-3YE22-0AB0
Siemens

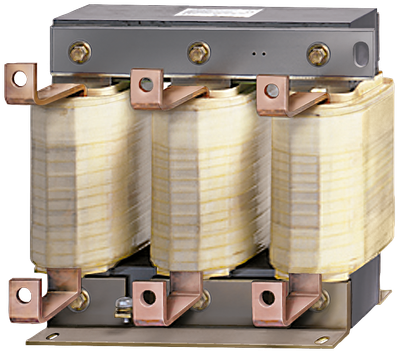

Siemens Sinamics/Micromaster PX Output choke for 3AC 380-480 V, 50/60 HZ, 260 A
6SL3000-2BE32-6AA0
Siemens

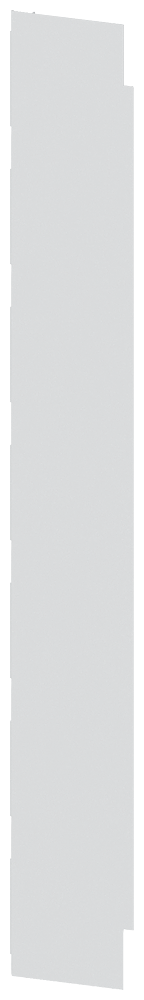

Siemens Alpha 400/630 Din, Partition Vertical,H1050
