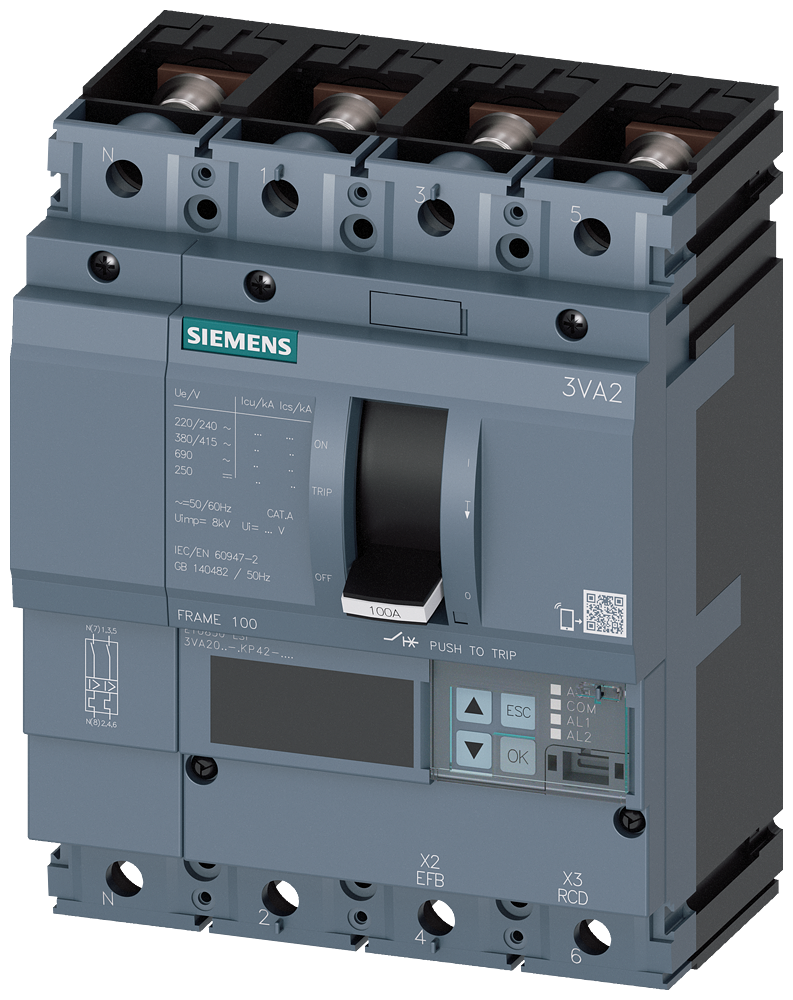

Siemens MCCB_3VA20_4P_55KA_ETU850,LSI,IN=25A,IR=10A-25A,ISD=0,6-10XIN,II=1,5-12XIN,B
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3VA2025-5KP42-0AA0 MCCB_3VA20_4P_55KA_ETU850,LSI,IN=25A,IR=10A-25A,ISD=0,6-10xIN,II=1,5-12xIN,B.
Technical Specifications
- Manufacturer part number (MPN)
- 3VA2025-5KP42-0AA0
- EAN / GTIN
- 4042948802953
- HS code
- 8536.90
- Sales unit
- pcs
- Rated current
- 25 A
- Rated permanent current Iu
- 25 A
- With integrated under voltage release
- No
- Number of poles
- 4
- Overload release current setting
- 10–25 A
- Rated voltage
- 690 V
- Power loss
- 0.84 W
- Degree of protection (IP)
- IP40
- Position of connection for main current circuit
- Front side
- Motor drive integrated
- No
- Type of electrical connection of main circuit
- Screw connection
- Type of control element
- Rocker lever
- With switched-off indicator
- No
- Rated short-circuit breaking capacity Icu at 400 V, 50 Hz
- 55 kA
- Adjustment range short-term delayed short-circuit release
- 15–250 A
- Adjustment range undelayed short-circuit release
- 38–300 A
- Suitable for DIN rail (top hat rail) mounting
- Yes
- Integrated earth fault protection
- No
- Motor drive optional
- Yes
- Device construction
- Built-in device slide-in technique (withdrawable)
- DIN rail (top hat rail) mounting optional
- Yes
- Complete device with protection unit
- Yes
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4042948802953
- SAP 1000706043
- Code 8196550
Product Documentation
More from Siemens
Siemens
Siemens 3NA6817-6
Siemens
Siemens Sinamics V20 3AC380-480V 11kW Integrated EMC-filter C3 USS/ MODBUS IP20 FSD
6SL3210-5BE31-1CV0
Siemens
Siemens Variable-frequency drive for pump- and fan drive 6SL3220-3YE22-0AB0
Siemens
Siemens Sinamics/Micromaster PX Output choke for 3AC 380-480 V, 50/60 HZ, 260 A
6SL3000-2BE32-6AA0
Siemens
Siemens Alpha 400/630 Din, Partition Vertical,H1050
8GK9101-7KK01
Siemens
Siemens SENTRON 3VA9257-0PK55 — Side-wall rotary operating mechanism with coupling plate, 3VA12
Siemens
Siemens 3RV1913-1CA00 Enclosure with Diaphragms, Size S00 Surface Mounting
Siemens
Siemens SIRIUS ACT 3SU1900-0AE16-0DN0 Labelling Plate 27x27 mm Black Forward
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 3VA2025-5KP42-0AA0?
- 3VA2025-5KP42-0AA0 can be ordered from cballast.com as a Siemens catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Siemens product?
- The manufacturer part number is 3VA2025-5KP42-0AA0.
- What is the HS code for 3VA2025-5KP42-0AA0?
- The customs tariff (HS) code for 3VA2025-5KP42-0AA0 is 8536.90.
- Who manufactures 3VA2025-5KP42-0AA0?
- 3VA2025-5KP42-0AA0 is a Siemens product in the Electrical Components range.
- Is a datasheet available for 3VA2025-5KP42-0AA0?
- Yes — the 3VA2025-5KP42-0AA0 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 3VA2025-5KP42-0AA0?
- The minimum order quantity is 1.
- Is 3VA2025-5KP42-0AA0 available?
- Yes — 3VA2025-5KP42-0AA0 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
