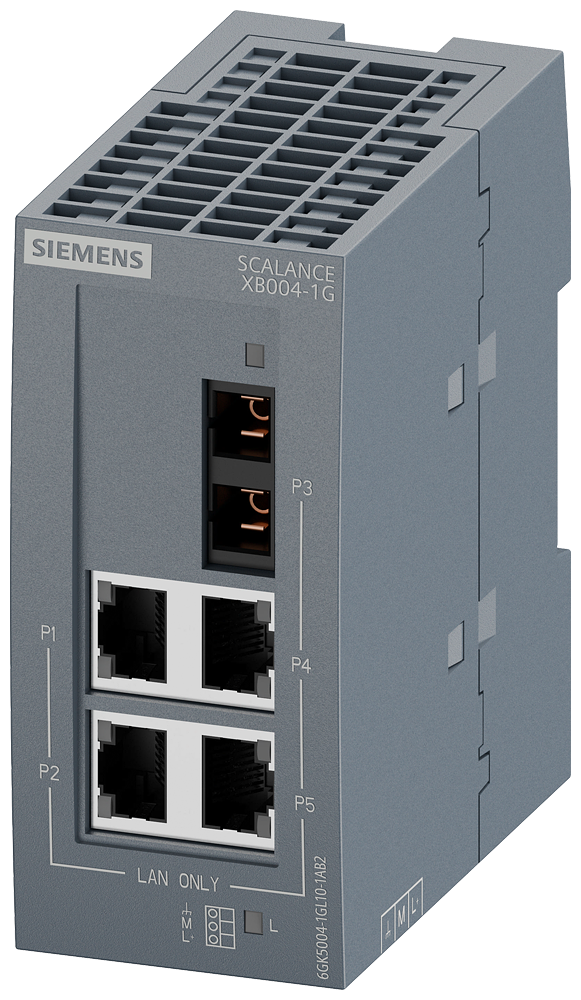

Siemens SCALANCE XB004-1G; 4 x 10/100/1000 Mbit/s RJ45 porter + 1 x 1000 Mbit/s SC-port multimode

Siemens 6GK5004-1GL10-1AB2 SCALANCE XB004-1G; 4 x 10/100/1000 Mbit/s RJ45 porter + 1 x 1000 Mbit/s SC-port multimode.

Manufacturer part number (MPN)

6GK5004-1GL10-1AB2

EAN / GTIN

4047622501054

Sales unit

pcs

Product brand name

SCALANCE

Product type designation

XB004-1G

Transfer rate

10, 100, 1000 Mbit/s

Number of electrical connections — for network components or terminal equipment

4; RJ45

Number of 100 Mbit/s SC ports — for multimode

0

Number of 1000 Mbit/s SC ports — for multimode

1

Transmission method / of the optical interface

1000BaseFX

Number of electrical connections — for power supply

1

Type of electrical connection — for power supply

3-pole terminal block

Type of voltage / 1 / of the supply voltage

DC

Type of voltage / 1 / of the supply voltage — supply voltage / 1 / rated value

24 V

Type of voltage / 1 / of the supply voltage — power loss [W] / 1 / rated value

12.5 W

Type of voltage / 1 / of the supply voltage — supply voltage / 1 / voltage range

19.2 ... 28.8

Type of voltage / 1 / of the supply voltage — consumed current / 1 / maximum

0.52 A

Type of voltage / 1 / of the supply voltage — type of electrical connection / 1 / for power supply

3-pole terminal block

Type of voltage / 1 / of the supply voltage — product component / 1 / fusing at power supply input

Yes

Type of voltage / 1 / of the supply voltage — fuse protection type / 1 / at input for supply voltage

0,6 A / 60 V

Ambient temperature — during operation

-10 ... +60 °C

Ambient temperature — during storage

-40 ... +80 °C

Ambient temperature — during transport

-40 ... +80 °C

Relative humidity — at 25 °C / without condensation / during operation / maximum

95 %

Protection class IP

IP20

Design

Box

Design, dimensions and weights — width

45 mm

Design, dimensions and weights — height

100 mm

Design, dimensions and weights — depth

87 mm

Design, dimensions and weights — net weight

0.21 kg

Fastening method — 35 mm DIN-rail mounting

Yes

Fastening method — wall mounting

Yes

Fastening method — S7-1500 rail mounting

No

Product function — multiport mirroring

No

Product function — CoS

Yes

Product function — switch-managed

No

PROFINET conformity class

A

Product function — Parallel Redundancy Protocol (PRP)/operation in the PRP-network

Yes

Product function — Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA)

No

MTBF

124 a

Warranty period

5 a

Mounting method

DIN rail (top hat rail)

Width

45 mm

Height

100 mm

Depth

87 mm

Number of ports 10/100 Mbps RJ45

4

Number of combination-ports RJ45/Mini GBIC

4

Layer 2

Yes

Layer 3

No

Degree of protection (IP)

IP20

Country of origin

Germany

HS Code

8517.69
