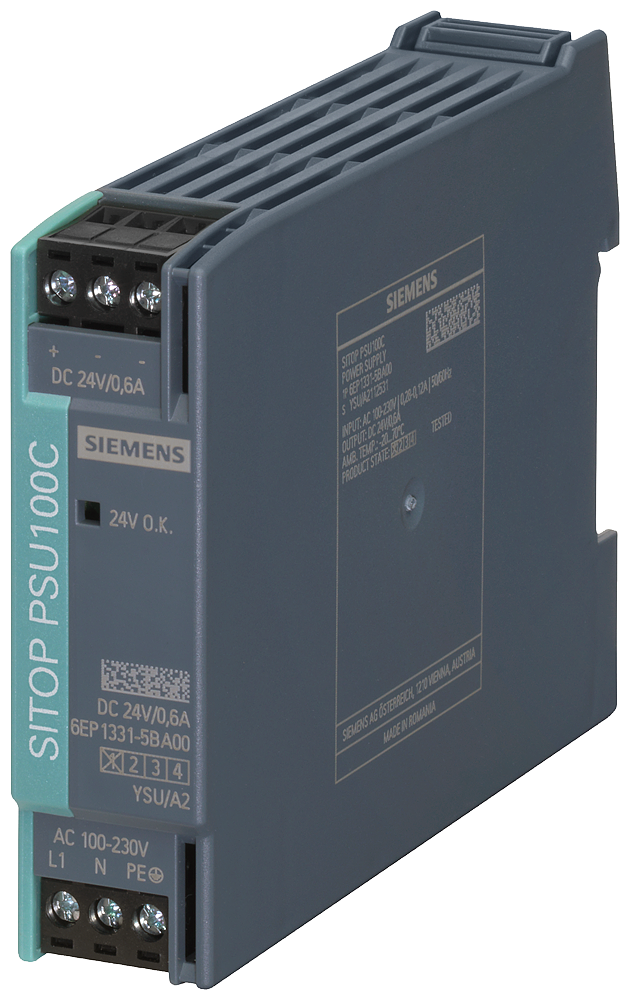

Siemens SITOP DC Power Supply 6EP1331-5BA00

Siemens 6EP1331-5BA00 SITOP DC power supply. DIN-rail primary-switched regulated 24 VDC power supply for automation panels. SITOP PSU100C 24 V/0.6 A, stabilised power supply. Input: AC 100-230VAC, Output: DC 24 V/0.6 A.

Manufacturer part number (MPN)

6EP1331-5BA00 EAN / GTIN: 4025515152590 Sales unit: pcs Type of the power supply network: 1-phase AC or DC Supply voltage at AC - minimum rated value: 100 V Supply voltage at AC - maximum rated value: 230 V Supply voltage at AC - initial value: 85 V Supply voltage at AC - full-scale value: 264 V Input voltage at DC: 110 ... 300 V Overvoltage overload capability: 2.3 x Vin rated, 1.3 ms Buffering time for rated value of the output current in the event of power failure minimum: 20 ms Operating condition of the mains buffering: at Vin = 230 V Line frequency: 50/60 Hz Input current - at rated input voltage 100 V: 0.28 A Input current - at rated input voltage 230 V: 0.18 A Current limitation of inrush current at 25 degrees C maximum: 28 A I2t value maximum: 0.7 A2s Fuse protection type: internal Fuse protection type in the feeder: Recommended miniature circuit breaker: from 16 A characteristic B or from 10 A characteristic C Voltage curve at output: Controlled, iso

HS Code

8504.40

• EAN 4025515152590
• SAP 1000105443
• Code 81022670
