Siemens SIRIUS 3SK1 safety relay 3SK2112-1AA10
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3SK2112-1AA10 SIRIUS 3SK1 safety relay. Compact safety relay for emergency-stop, safety-gate and light-curtain monitoring per EN ISO 13849. SIRIUS 3SK2 safety relay with 10 F-DI, 2 F-DO and screw terminal connections, 24 V DC supply, made in Germany.
Technical Specifications
- Manufacturer part number (MPN)
- 3SK2112-1AA10
- EAN / GTIN
- 4047621004914
- HS code
- 8536.90
- Sales unit
- pcs
- Supply voltage DC
- 24 V
- Control voltage 1
- 24 V
- Control voltage 2
- 24 V
- Voltage type (operating voltage)
- DC
- Type of control voltage 1
- DC
- Type of control voltage 2
- DC
- Type of electric connection
- Screw connection
- Rated control supply voltage DC
- 24 V
- Voltage type for actuating
- DC
- With start input
- No
- Number of outputs, safety related, undelayed, semiconductors
- 2
- Stop category according to IEC 60204
- 0 + 1
- Performance level according to EN ISO 13849-1
- Level e
- SIL according to IEC 61508
- 3
- With approval for BG BIA
- No
- Width
- 22.5 mm
- Height
- 100 mm
- Depth
- 124.5 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4047621004914
- SAP 1000768956
- Code 81387595
Product Documentation
More from Siemens
Siemens
Siemens SIMATIC S7-1500 AQ 8XU/I HS
6ES7532-5HF00-0AB0
Siemens

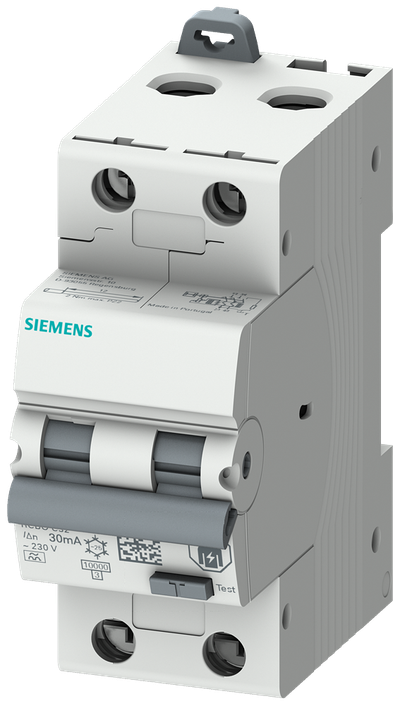

Siemens Residual current circuit breaker with overcurrent, 2P, 16A, TypeA, 30MA, B-Curve, Zinc-plated K,2MW, Icn=10KA, conductor cross-section 35 mm²,torque 2Nm
5SU1324-6FR16
Siemens

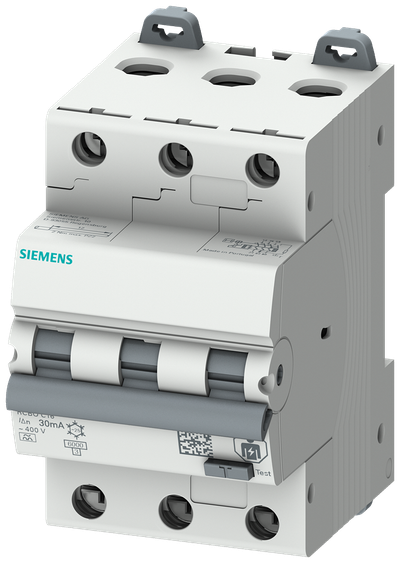

Siemens Residual current circuit breaker with overcurrent, 3P, 25A, Type A 30MA, B-Curve, 6 kA, Un: 400V only, conductor cross-section 35 mm², torque 2Nm
5SU1336-6FP25
Siemens
Siemens SIMATIC S7 automation module 6ES7952-1KT00-0AA0
Siemens
Siemens SIMATIC NET N-connect/SMA Male/Male Flexible Connecting Cable, 0.3 m
6XV1875-5LE30
Siemens

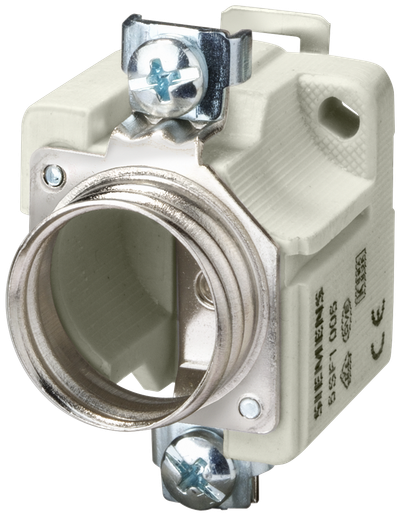

Siemens Fuse Element without Cover Dii 25A Ac Dc 500V Skruhode/Terminal Type Terminal, Quick-Release Mount
5SF1005
Siemens

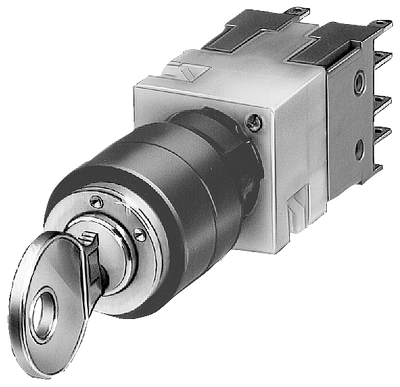

Siemens Key switch 0-1 1S 3SB2202-4LB01
Siemens

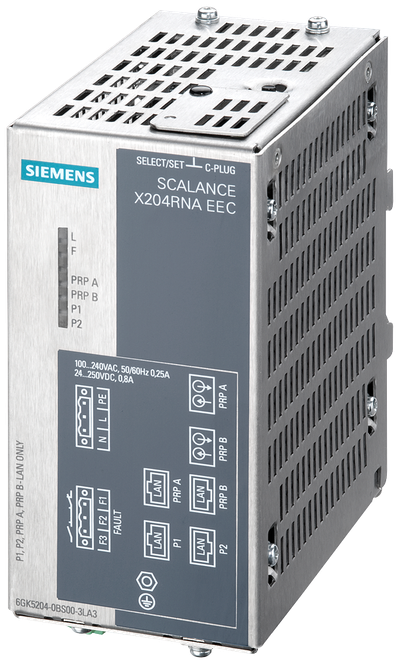

Siemens Scalance X204RNA EEC; PRP network; 2 x 100MBIT/s RJ45; 2 x 100MBIT/s
