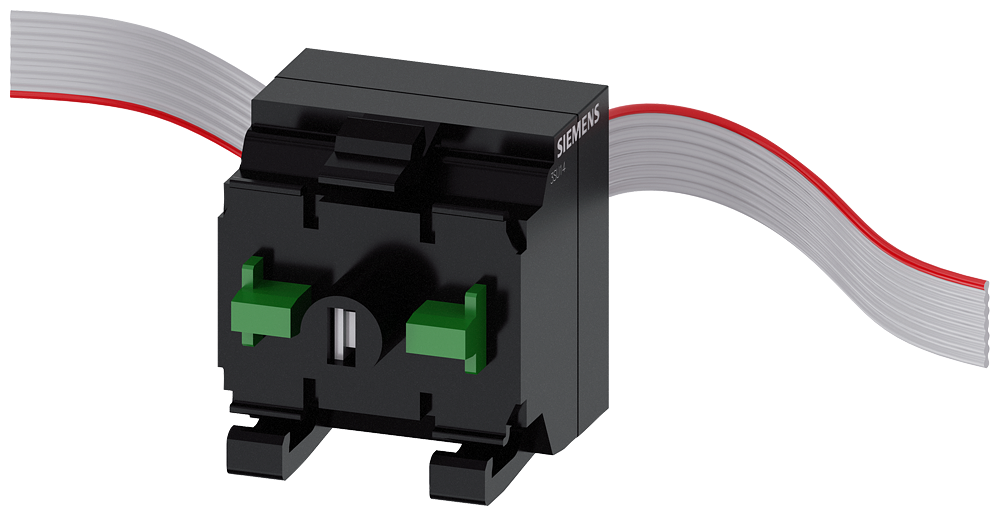

Siemens SIRIUS ACT Terminal module (command and LED module), integrated LED red, for front plate mounting

Siemens 3SU1401-1MC20-1CA1 — SIRIUS ACT 22 mm command and signalling device. Panel-mount pushbutton, indicator lamp or emergency-stop actuator in the 22 mm cutout family. Sirius Act: Terminal Module (kommandomodul and LED module) with integrated Led Red for front mounting.

Manufacturer part number (MPN)

3SU1401-1MC20-1CA1

EAN / GTIN

4011209965805

Sales unit

pcs

Product brand name

SIRIUS ACT

Product designation

Terminal module

Design of the product

with 2 contacts and integrated LED

Product type designation

3SU1

Display version — for diagnostic function

Supply voltage monitoring power LED: Yes

Display version — status Tx/Rx link

No

Product function — reverse polarity protection

Yes; Ribbon cable can be rotated 180°.

Product function — diagnostics function

Yes

Firmware version

1.0.0

Hardware version

1

Software version with STEP 7 in the TIA Portal required

V13 SP1 (V13 SP1 and V14 with HSP0132)

Power loss [W] typical

0.115 W

Degree of pollution

3

Type of voltage — of the operating voltage

DC

Type of voltage — of the input voltage

DC

Surge voltage resistance rated value

0.8 kV

Consumed current — maximum

27 mA

Consumed current — rated value

23 mA

Protection class IP

IP20

Shock resistance — according to IEC 60068-2-27

sinusoidal half-wave 15 g / 11 ms

Shock resistance — for railway applications according to EN 61373

Category 1, Class B

Vibration resistance — according to IEC 60068-2-6

10 ... 500 Hz: 5 g

Vibration resistance — for railway applications according to EN 61373

Category 1, Class B

Reference code according to IEC 81346-2

K

Protocol is supported — PROFIsafe protocol

No

Type of electrical connection

Insulation displacement connection

Type of connectable conductor cross-sections

Ribbon cable 7-pole, 7 x 0.08 mm2

Connectable conductor cross-section for auxiliary contacts — solid or stranded

0.08 mm²

Connectable conductor cross-section for auxiliary contacts — finely stranded with core end processing maximum

0.08 mm²

Connectable conductor cross-section — solid

0.08 mm²

Connectable conductor cross-section — solid with core end processing

0.08 mm²

Connectable conductor cross-section — finely stranded with core end processing

0.08 mm²

Connectable conductor cross-section — finely stranded without core end processing

0.08 mm²

AWG number as coded connectable conductor cross section

28

Color of the light source

red

Product function suitable for safety function

No

Service life maximum

20 a

Ambient temperature — during operation

-25 ... +60 °C

Ambient temperature — during storage

-40 ... +80 °C

Explosion protection marking for intrinsic safety of related equipment EEx ia

No

Explosion protection marking for intrinsic safety of related equipment EEx ib

No

Fastening method of modules and accessories

Front plate mounting

Installation/ mounting/ dimensions — height

32.6 mm

Installation/ mounting/ dimensions — width

30 mm

Installation/ mounting/ dimensions — depth

31.5 mm

Country of origin

Germany

HS Code

8531.80
