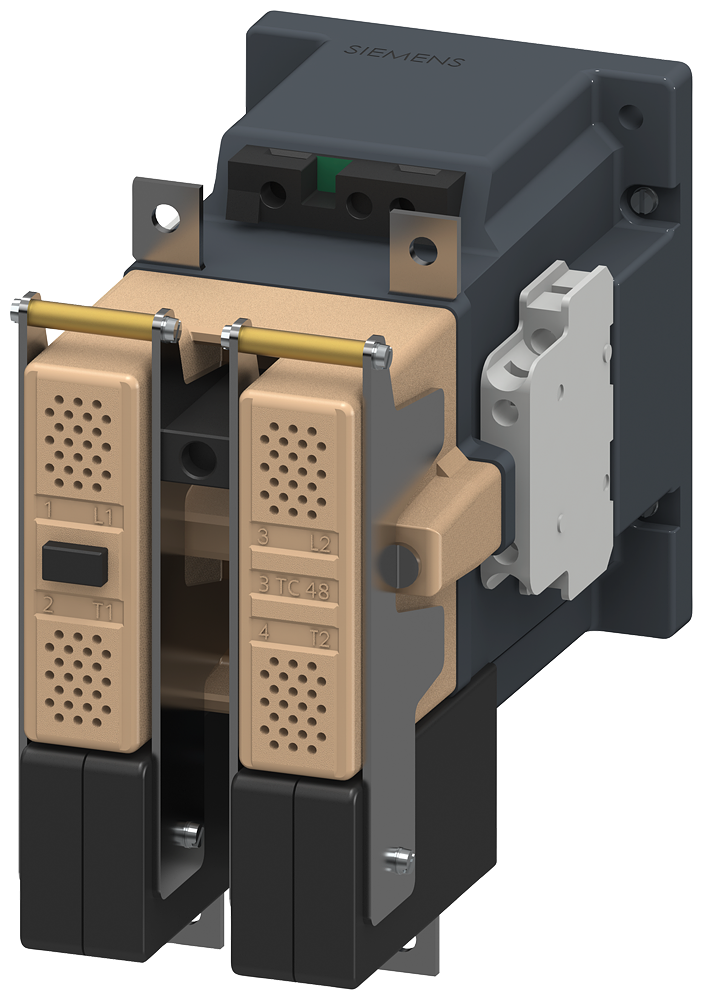

Siemens 3TC48170AM4
Pricing
Request a quote
We reply within 24 hours
Overview
Siemens 3TC48170AM4 is listed in the cBallast industrial catalogue. HS code: 8536.90; Sales unit: pcs; Width: 100 mm; Depth: 184 mm; Height: 177.5 mm; Voltage type for actuating: DC.
Technical Specifications
- Manufacturer part number (MPN)
- 3TC48170AM4
- EAN / GTIN
- 4011209034679
- HS code
- 8536.90
- Sales unit
- pcs
- Width
- 100 mm
- Depth
- 184 mm
- Height
- 177.5 mm
- Voltage type for actuating
- DC
- Rated operation power at DC-3 / DC-5 at 440 V
- 27 kW
- Rated operation current Ie at DC-3 / DC-5 at 440 V
- 75 A
- Number of auxiliary contacts as normally open contact
- 2
- Number of auxiliary contacts as normally closed contact
- 2
- Type of electrical connection of main circuit
- Screw connection
- Number of normally open contacts as main contact
- 2
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011209034679
- SAP 1000086689
- Code 8578773
Product Documentation
More from Siemens
Siemens
Siemens SIMATIC S7 automation module 6ES7517-3AP00-0AB0
Siemens
Siemens 3NA6807-6
Siemens
Siemens SIRIUS Motor protection circuit breaker 32 3RV2031-4UA10
Siemens
Siemens Industrial Ethernet Fast Connect flexible universal cable (2X2)
6XV1870-2B
Siemens
Siemens Alpha 400/630 Din, Set for Terminal blockr with Terminal Support, Felt Cover without Cut-Out 8GK4402-4KK22
Siemens
Siemens Residual current circuit breaker, 4-Pole, type A, In: 80 A, 100 mA, Un AC: 400 V
5SV34476
Siemens
Siemens Wall Bracket for Signal Tower 8WD46
8WD46180CA
Siemens
Siemens ALPHA 630 DIN Lock System with Recessed Swing Handle, Tall Cabinet Doors
8GK9561-0KK01
Technical guides
Catalogue entry last verified: 2026-08-13. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 3TC48170AM4?
- 3TC48170AM4 can be ordered from cballast.com as a Siemens catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Siemens product?
- The manufacturer part number is 3TC48170AM4.
- What is the HS code for 3TC48170AM4?
- The customs tariff (HS) code for 3TC48170AM4 is 8536.90.
- Who manufactures 3TC48170AM4?
- 3TC48170AM4 is a Siemens product in the SC002552 range.
- Is a datasheet available for 3TC48170AM4?
- Yes — the 3TC48170AM4 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 3TC48170AM4?
- The minimum order quantity is 1.
- Is 3TC48170AM4 available?
- Yes — 3TC48170AM4 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
