Siemens S10 Vacuum contactor, 110KW/400 3RT1264-6NF36
Pricing
Request a quote
We reply within 24 hours
Product Description

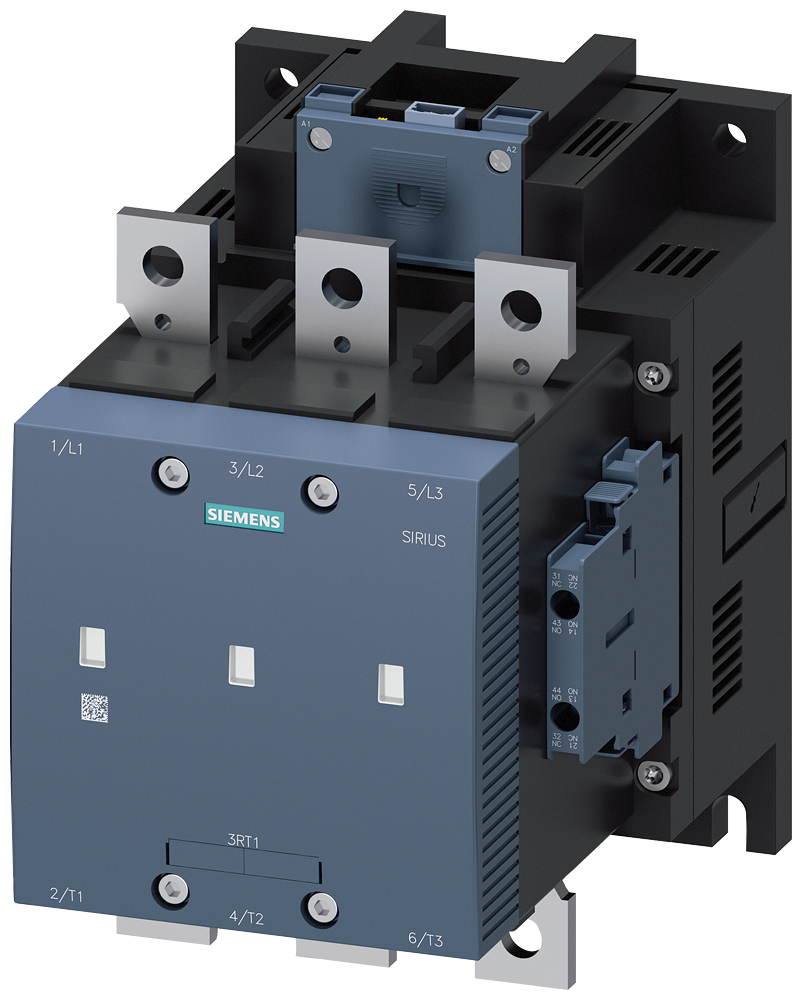

Siemens 3RT1264-6NF36 S10 Vacuum Contactor, 110KW/400.
Technical Specifications
- Manufacturer part number (MPN)
- 3RT1264-6NF36
- EAN / GTIN
- 4011209508811
- Sales unit
- pcs
- Power
- 110 kW
- Width
- 145 mm
- Height
- 210 mm
- Depth
- 206 mm
- Rated operation power at AC-3, 400 V
- 110 kW
- Number of normally open contacts as main contact
- 3
- Number of auxiliary contacts as normally open contact
- 2
- Number of auxiliary contacts as normally closed contact
- 2
- Rated operation current Ie at AC-3, 400 V
- 225 A
- Rated operation current Ie at AC-1, 400 V
- 330 A
- Type of electrical connection of main circuit
- Screw connection
- Operating voltage AC 50 Hz
- 1000 V
- Operating voltage AC 60 Hz
- 1000 V
- Voltage type for actuating
- AC/DC
- Rated operation current Ie at AC-4, 400 V
- 195 A
- Rated operation power at AC-4, 400 V
- 110 kW
- Rated operation power NEMA
- 150 kW
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.49
Cross References
- EAN 4011209508811
- SAP 1200326525
- Code 82308189
Product Documentation
