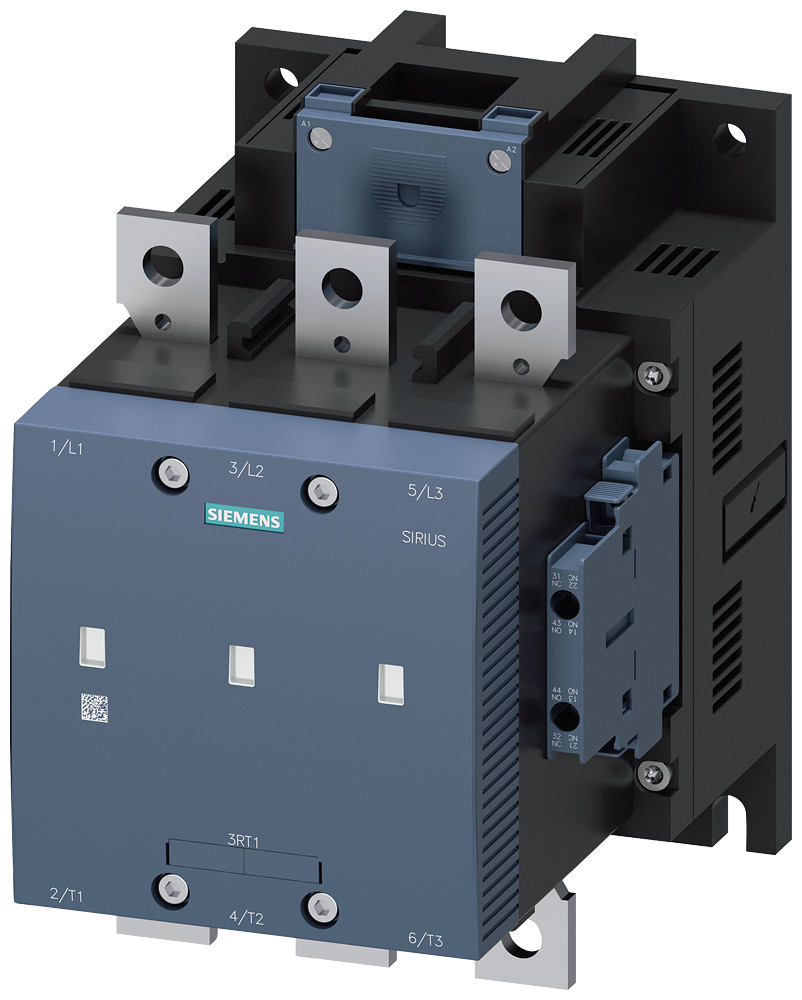

Siemens S10 Vacuum contactor, 110KW/400 3RT1264-6AB36
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RT1264-6AB36 S10 Vacuum Contactor, 110KW/400.
Technical Specifications
- Manufacturer part number (MPN)
- 3RT1264-6AB36
- EAN / GTIN
- 4011209508699
- Sales unit
- pcs
- Power
- 110 kW
- Width
- 145 mm
- Height
- 210 mm
- Depth
- 206 mm
- Rated operation power at AC-3, 400 V
- 110 kW
- Number of normally open contacts as main contact
- 3
- Number of auxiliary contacts as normally open contact
- 2
- Number of auxiliary contacts as normally closed contact
- 2
- Rated operation current Ie at AC-3, 400 V
- 225 A
- Rated operation current Ie at AC-1, 400 V
- 330 A
- Type of electrical connection of main circuit
- Screw connection
- Operating voltage AC 50 Hz
- 1000 V
- Operating voltage AC 60 Hz
- 1000 V
- Voltage type for actuating
- AC/DC
- Rated operation current Ie at AC-4, 400 V
- 195 A
- Rated operation power at AC-4, 400 V
- 110 kW
- Rated operation power NEMA
- 150 kW
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.49
Cross References
- EAN 4011209508699
- SAP 1200326515
- Code 82308168
Product Documentation
More from Siemens
Siemens
Siemens Spare part for doorconnection, connectionsstykke handle for switch 8MM/8MM
8UC6022
Siemens

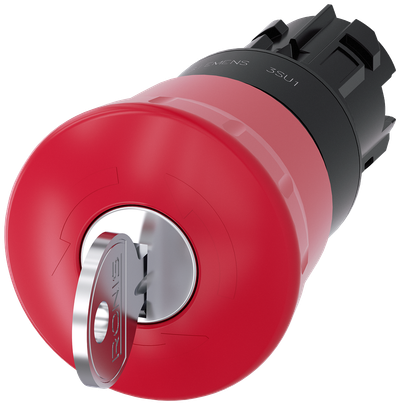

Siemens SIRIUS ACT EMERGENCY STOP mushroom pushbutton, 22 mm, round, plastic, red, 40 mm, with RONIS lock, lock number SB30, positive latching, acc. to EN ISO 13850, key-operated release
3SU1000-1HF20-0AA0
Siemens

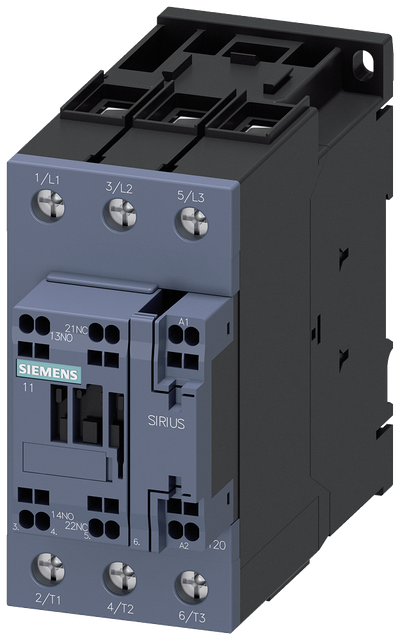

Siemens SIRIUS Contactor, S2, 65A 1NO+1NC, 24V AC/DC, 3-Pole 3RT2037-3NB30
Siemens

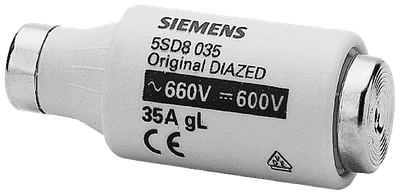

Siemens Screw Fuse- 690V for Cable and Line protection Utilisation Category Gg Size Diii, E33, 35A
5SD8035
Siemens
Siemens Memory card SD 512MB
6AV6671-8XB10-0AX1
Siemens

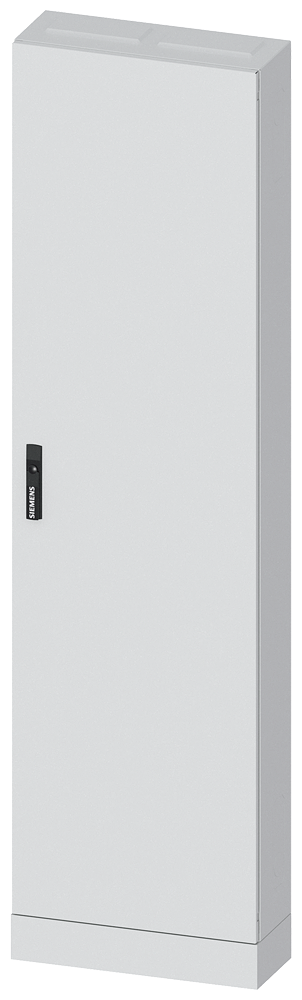

Siemens ALPHA 630, floor-standing cabinet, IP43, safety class 2, H: 1950 mm, W: 550 mm, D: 210 mm, RAL 7035
8GK1332-8KA22
Siemens

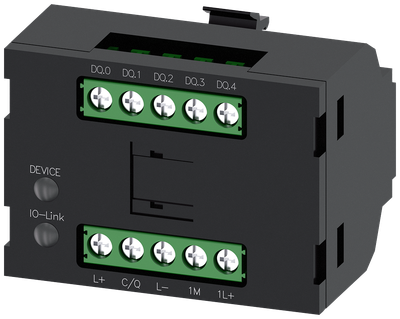

Siemens SIRIUS ACT Electronics module IO-Link for ID key-operated switch, with 5 pre-programmed electronic switches, controller and RFID authentication of the switching function, black, operating voltage 24 V DC, screw terminal, for front plate mounting, for industrial application in control cabinets and machines
3SU1400-1GD10-1AA0
Siemens

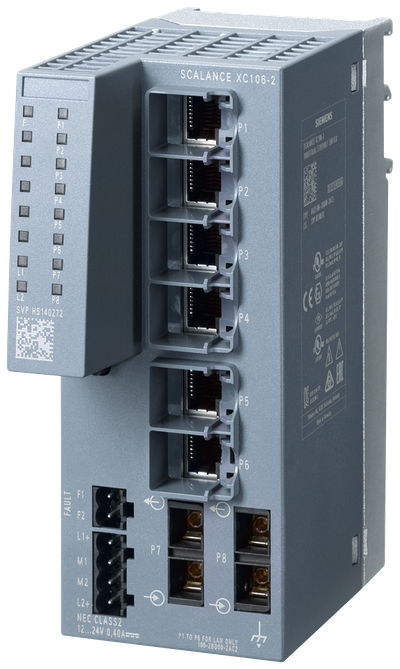

Siemens SCALANCE XC106-2; 6 x 10/100 Mbit/s RJ45 porter + 2 x 100 Mbit/s SC-port multimode
