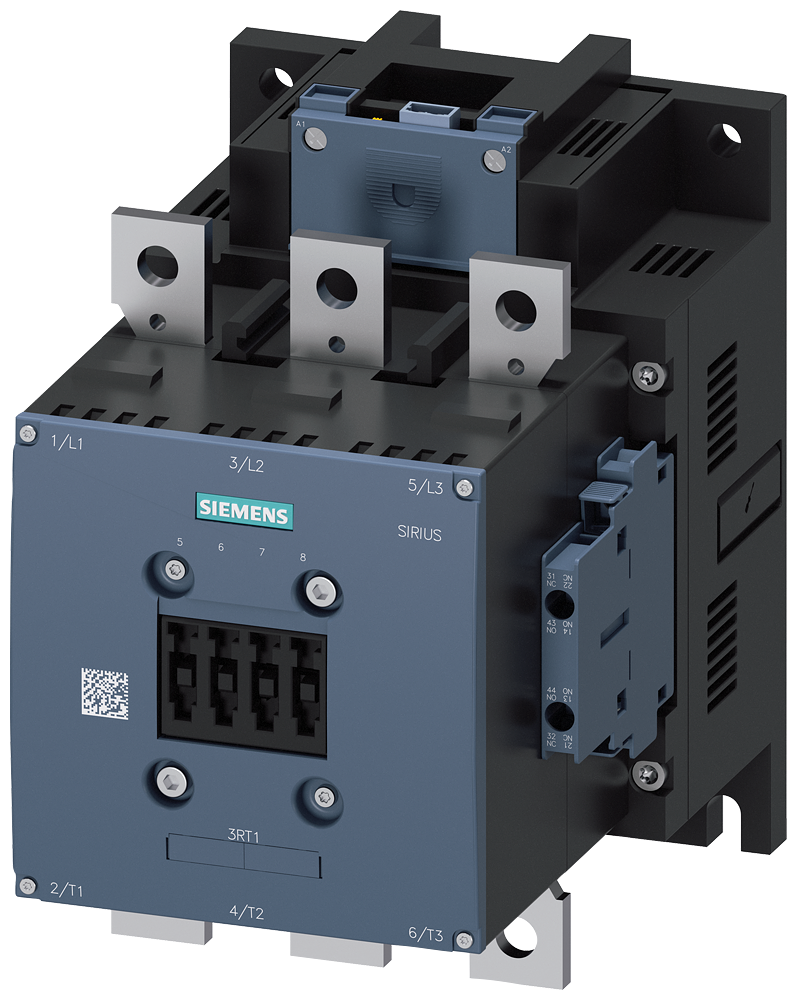

Siemens S10 contactor, 110KW/400V/AC-3 3RT1064-6NB36
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RT1064-6NB36 S10 contactor, 110KW/400V/AC-3.
Technical Specifications
- Manufacturer part number (MPN)
- 3RT1064-6NB36
- EAN / GTIN
- 4011209507807
- HS code
- 8536.90
- Sales unit
- pcs
- Power
- 110 kW
- Utilization category
- AC-3
- Width
- 145 mm
- Height
- 210 mm
- Depth
- 202 mm
- Rated operation power at AC-3, 400 V
- 110 kW
- Number of normally open contacts as main contact
- 3
- Number of auxiliary contacts as normally open contact
- 2
- Number of auxiliary contacts as normally closed contact
- 2
- Rated operation current Ie at AC-3, 400 V
- 225 A
- Rated operation current Ie at AC-1, 400 V
- 275 A
- Type of electrical connection of main circuit
- Screw connection
- Operating voltage AC 50 Hz
- 1000 V
- Operating voltage AC 60 Hz
- 1000 V
- Voltage type for actuating
- AC/DC
- Rated operation current Ie at AC-4, 400 V
- 195 A
- Rated operation power at AC-4, 400 V
- 110 kW
- Rated operation power NEMA
- 150 kW
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011209507807
- SAP 1200326365
- Code 82307210
Product Documentation
More from Siemens
Siemens
Siemens 3SU1150-1HA20-1CG0 SIRIUS ACT Emergency Stop 22 mm Metal 40 mm Red
Siemens
Siemens Signal column 70 mm base with tube 100M
8WD4308-0DA
Siemens
Siemens Contactor, 250kW, 230VAC/DC, 2 NO + 2NC
3RT1076-6AP36
Siemens

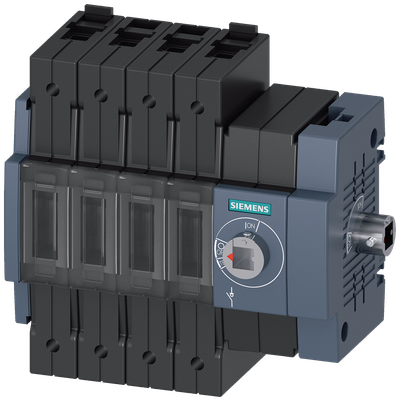

Siemens Load-break switch 63A,size 1, frame terminal for Cu cable,4-Pole,operation side right-hand
3KD26442ME400
Siemens

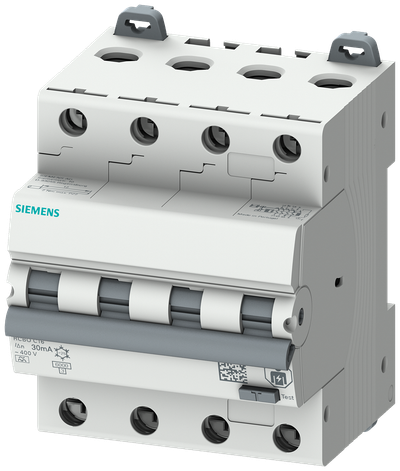

Siemens Residual current circuit breaker with overcurrent, 4P, 10A, Type A 30MA, B-Curve, 6 kA, Un: 230/400V, conductor cross-section 35 mm², torque 2Nm
5SU1346-6FP10
Siemens

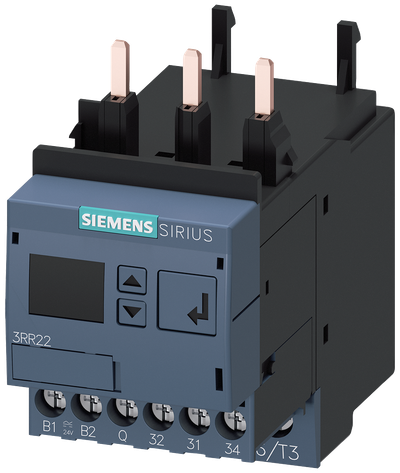

Siemens Current monitoring relay 4-40A 3-Phase
3RR2242-1FA30
Siemens

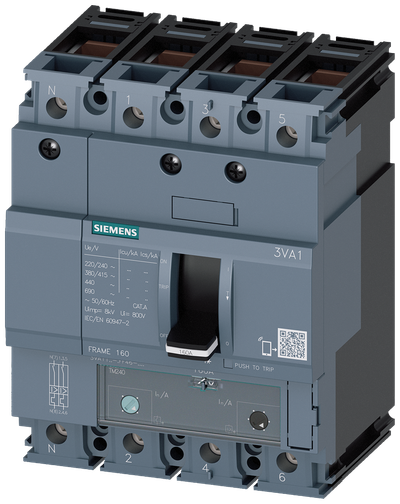

Siemens 3VA11, 25KA, 4-Pole, TM240, IN=16A,IR=11,2A 3VA1196-3GF46-0AA0
Siemens

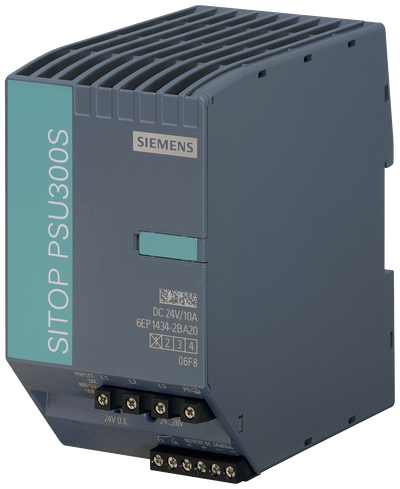

Siemens SITOP DC power supply 6EP1434-2BA20
