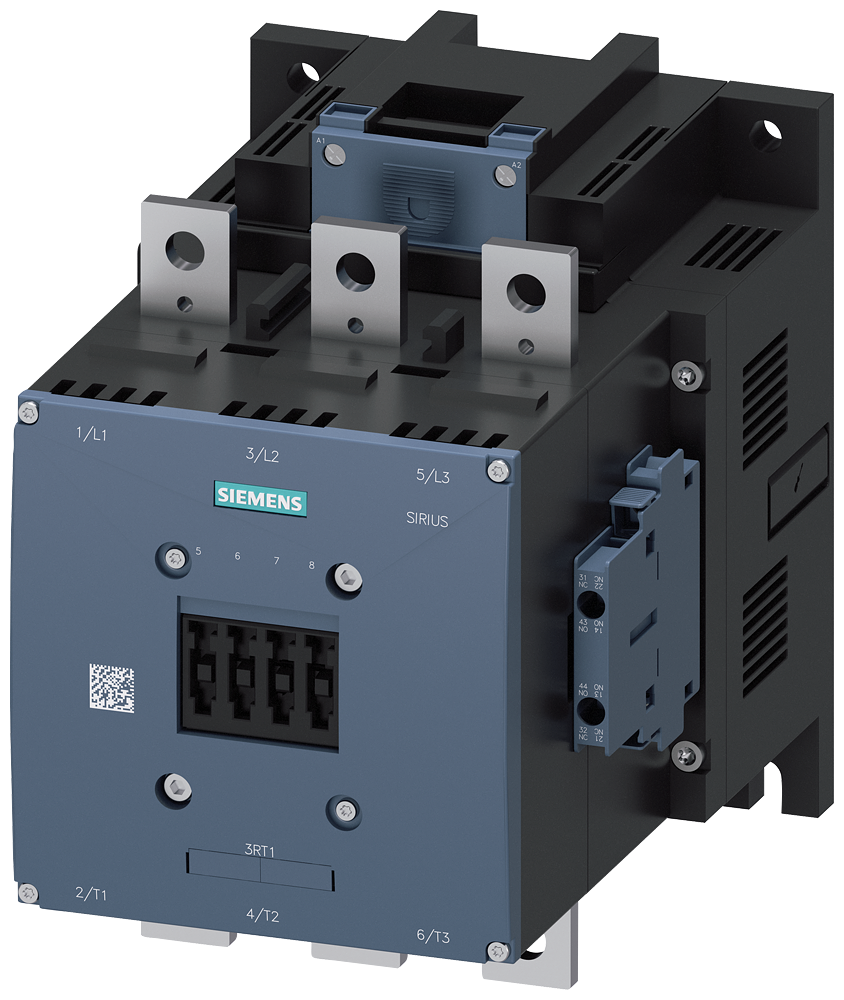

Siemens Contactor, 250kW, 230VAC/DC, 2 NO + 2NC
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RT1076-6AP36 Contactor, 250kW, 230VAC/DC, 2 NO + 2NC.
Technical Specifications
- Manufacturer part number (MPN)
- 3RT1076-6AP36
- EAN / GTIN
- 4011209508538
- HS code
- 8536.90
- Sales unit
- pcs
- Voltage
- 230 V AC
- Power
- 250 kW
- Contact configuration
- 2 NO + 2 NC
- Width
- 160 mm
- Height
- 214 mm
- Depth
- 225 mm
- Suitable for distribution board
- Yes
- Rated operation power at AC-3, 400 V
- 250 kW
- Number of normally open contacts as main contact
- 3
- Number of auxiliary contacts as normally open contact
- 2
- Number of auxiliary contacts as normally closed contact
- 2
- Rated operation current Ie at AC-3, 400 V
- 500 A
- Rated operation current Ie at AC-1, 400 V
- 610 A
- Rated control supply voltage AC 50 Hz
- 220–240 V
- Rated control supply voltage AC 60 Hz
- 220–240 V
- Rated control supply voltage DC
- 220–240 V
- Type of electrical connection of main circuit
- Screw connection
- Operating voltage AC 50 Hz
- 1000 V
- Operating voltage AC 60 Hz
- 1000 V
- Voltage type for actuating
- AC/DC
- Rated operation current Ie at AC-4, 400 V
- 430 A
- Rated operation power at AC-4, 400 V
- 250 kW
- Rated operation power NEMA
- 400 kW
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011209508538
- SAP 1000022610
- Code 8181111
Product Documentation
