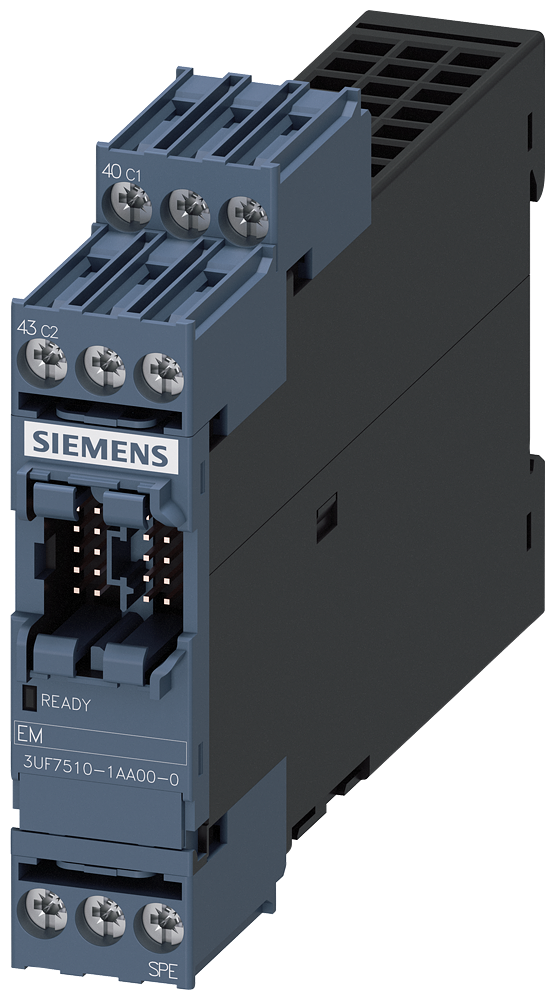

Siemens 3UF7510-1AA00-0 SIMOCODE pro V Ground-Fault Module — Analogue Residual Current Detection, for 3UL23 Summation Current Transformer

The Siemens 3UF7510-1AA00-0 is the ground-fault module for the SIMOCODE pro V motor management system. It expands a SIMOCODE pro V basic unit with analogue residual current measurement, taken through an external 3UL23 summation current transformer rather than estimated from the phase currents. That lets the system read the actual earth-fault current as a measured value, so a developing insulation fault can be trended and alarmed before it becomes a trip, and the trip threshold and delay can be set in software instead of by hardware selection. One ground-fault module can be fitted per basic unit. It connects to the basic unit over the SIMOCODE system interface and needs no separate supply. Supplied by cBallast on quote-to-invoice terms; lead time and freight are quoted per RFQ against the destination Incoterm.

Manufacturer part number (MPN)

3UF7510-1AA00-0

EAN / GTIN

4011209912496

Sales unit

pcs

Model

Earth fault module

Number of analogue inputs

1

Input for thermistor connection

No

Input for earth fault detection

Yes

Input for analogue temperature sensor

No

Degree of protection (IP)

IP20

Country of origin

Germany

Product family

SIMOCODE pro V (SIRIUS 3UF7 motor management)

Function

Ground-fault module, analogue residual current detection

Requires

External 3UL23 summation current transformer

Maximum per basic unit

1 ground-fault module

For use with

SIMOCODE pro V basic unit

HS Code

8538.90

• EAN 4011209912496
• SAP 1000634281
• Code 8388876
• MPN 3UF7510-1AA00-0
• Requires 3UL23 summation current transformer
