Siemens Solid State 5,2A 110-230V AC Spring terminals
Pricing
Request a quote
We reply within 24 hours
Product Description

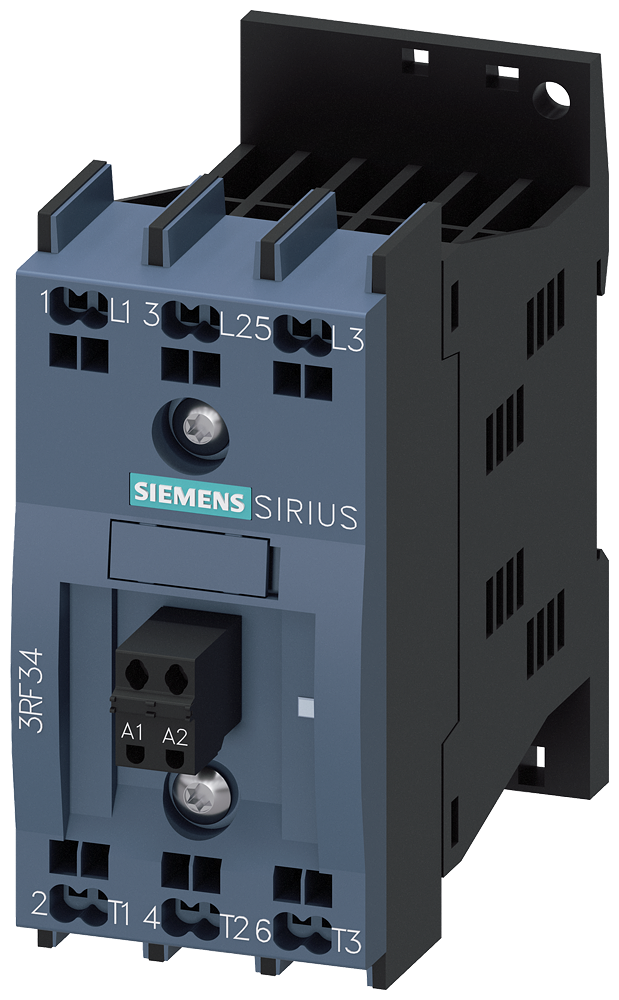

Siemens 3RF3405-2BB24 Solid State 5,2A 110-230V AC Spring terminals.
Technical Specifications
- Manufacturer part number (MPN)
- 3RF3405-2BB24
- EAN / GTIN
- 4011209863361
- Sales unit
- pcs
- Voltage
- 110-230 V
- Degree of protection (IP)
- IP20
- Width
- 45 mm
- Operating voltage AC 50 Hz
- 48–480 V
- Operating voltage AC 60 Hz
- 48–480 V
- Depth
- 100.8 mm
- Height
- 95 mm
- With detachable clamps
- Yes
- With LED indication
- Yes
- Type of switch function
- Normally open contact (NO)
- Voltage type (operating voltage)
- AC
- Type of electric connection
- Spring clamp connection
- Rated control supply voltage AC 50 Hz
- 110–230 V
- Rated control supply voltage AC 60 Hz
- 110–230 V
- Voltage type for actuating
- AC
- Operating voltage
- 48 V
- Rated operation current Ie at AC-3
- 5.2 A
- Rated operation current Ie at AC-53a
- 5.2 A
- Number of phases
- 3
- Suitable for distribution board
- Yes
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.49
Cross References
- EAN 4011209863361
- SAP 1000097856
- Code 8939871
Product Documentation
