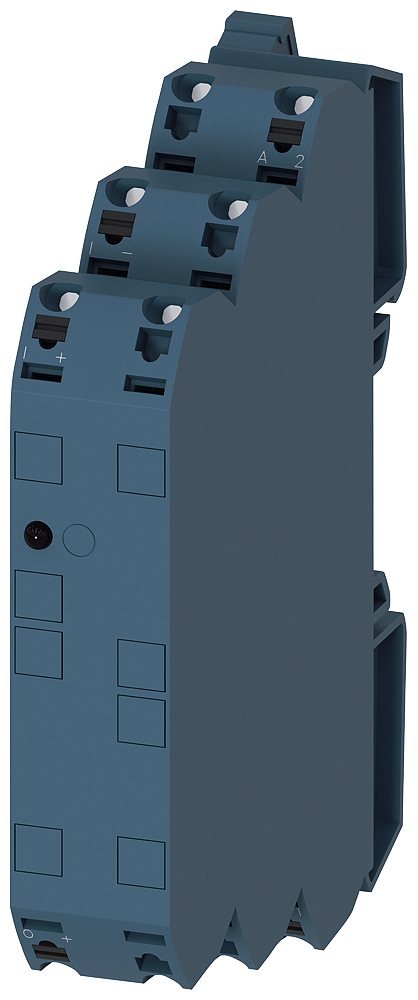

Siemens 3RS7005-2KW00 Signal Converter 24-240 V UC 3-Way Isolation V/mA in Frequency Out
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RS7005-2KW00 is a signal converter with 24-240 V AC/DC (UC) supply and three-way isolation, accepting 0-10 V or 0/4-20 mA inputs and delivering a 0-50/100 Hz or 1/10 kHz frequency output. Spring-clamp connection, DIN-rail mounted, IP20, one channel.
Technical Specifications
- Manufacturer part number (MPN)
- 3RS7005-2KW00
- EAN / GTIN
- 4047621001296
- Sales unit
- pcs
- Voltage
- 24-240 V
- Number of input ranges 0 V ... 10 V
- 1
- Number of input ranges 0 mA ... 20 mA
- 1
- Number of input ranges 4 mA ... 20 mA
- 1
- Number of channels
- 1
- SIL according to IEC 61508
- None
- Height
- 93 mm
- Width
- 17.5 mm
- Depth
- 72.5 mm
- Power consumption
- 0.34 W
- Load influence
- 0 %
- Temperature drift
- 0.015 %/K
- Construction type of device
- Built-in device
- Type of electric connection
- Spring clamp connection
- Mounting method
- Snap mounting support rail
- Degree of protection (IP)
- IP20
- Device construction
- Built-in device
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4047621001296
- SAP 1000790539
- Code 81402362
Product Documentation
More from Siemens
Siemens
Siemens Micromaster 4 AC Choke 200V-240V 1AC 10A Footprint Fsa - 3
6SE6400-3CC01-0AB3
Siemens
Siemens SENTRON 3VA9264-0JC22 — Cu/Al box terminal, 4-Pole, 2×25–150 mm², 3VA20 / 3VA21 / 3VA22
Siemens

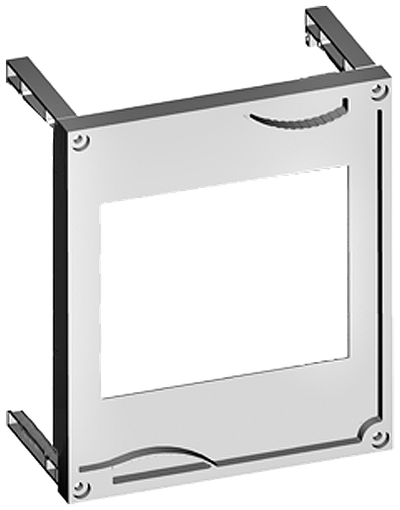

Siemens Alpha 400/630 Din, Set for Sikringskilleswitch 3NP4070 1XNH00 for mounting on Busbar 40/60mm
8GK4653-3KK12
Siemens

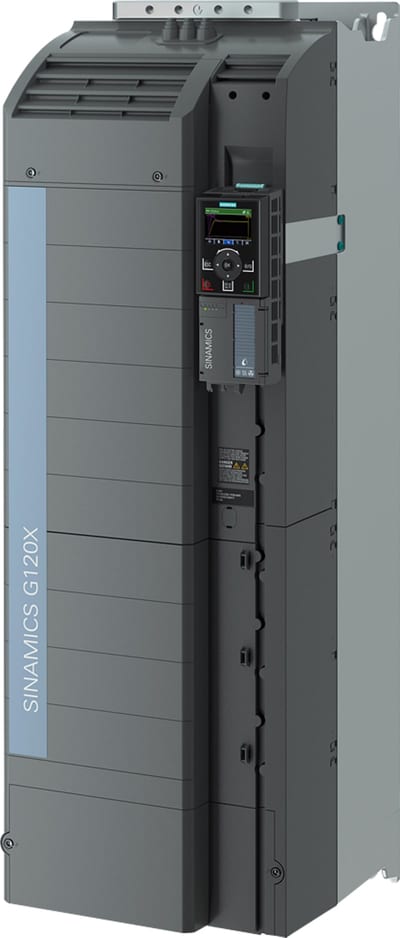

Siemens Variable-frequency drive for pump- and fan drive 6SL3220-3YE50-0CB0
Siemens

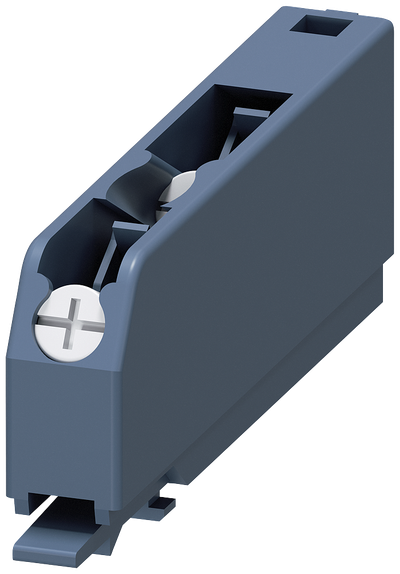

Siemens SIRIUS Plug-In Terminal Module, 2-Pole, Screw Terminals
3ZY1121-1BA00
Siemens

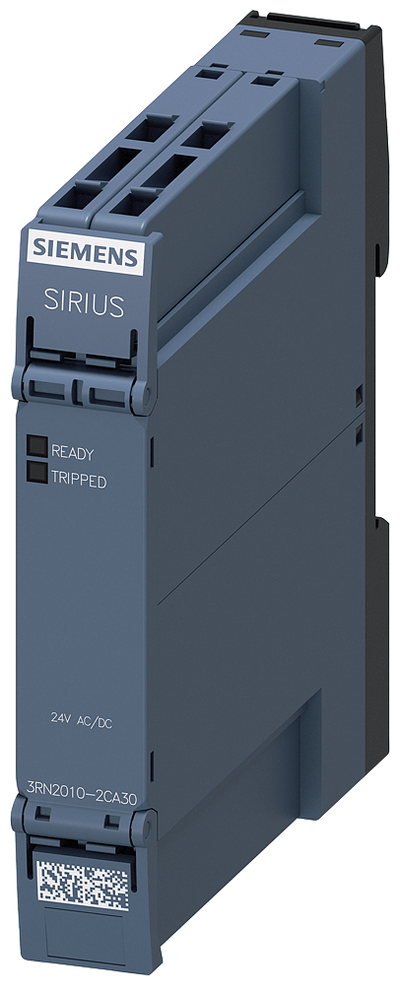

Siemens Termistor motorprotectionsrelay 17,5mm, Spring terminal 1NO/NC connector US = 24 V AC/DC Auto RESET
3RN2010-2CA30
Siemens

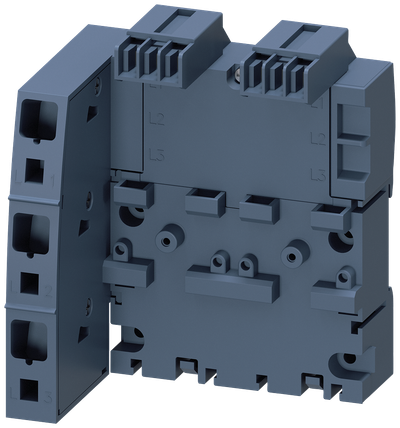

Siemens 3-Phase Busbar with Infeed Left, for 2 Circuit-Breakers, Size S00 Und S0
3RV2917-1A
Siemens

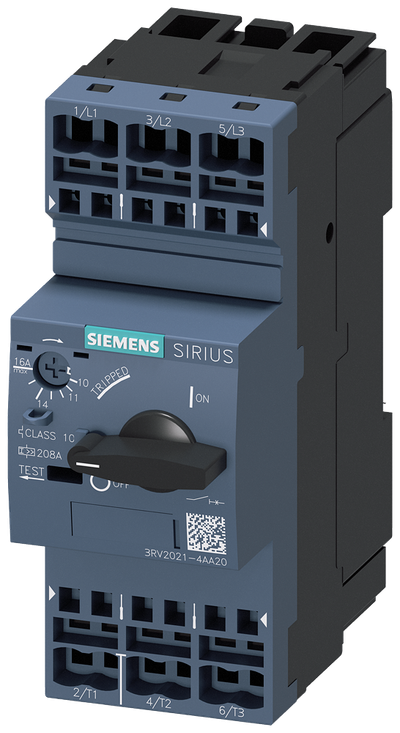

Siemens SIRIUS 3RV20 motor protection circuit breaker, frame size S0 3RV2021-4AA20
