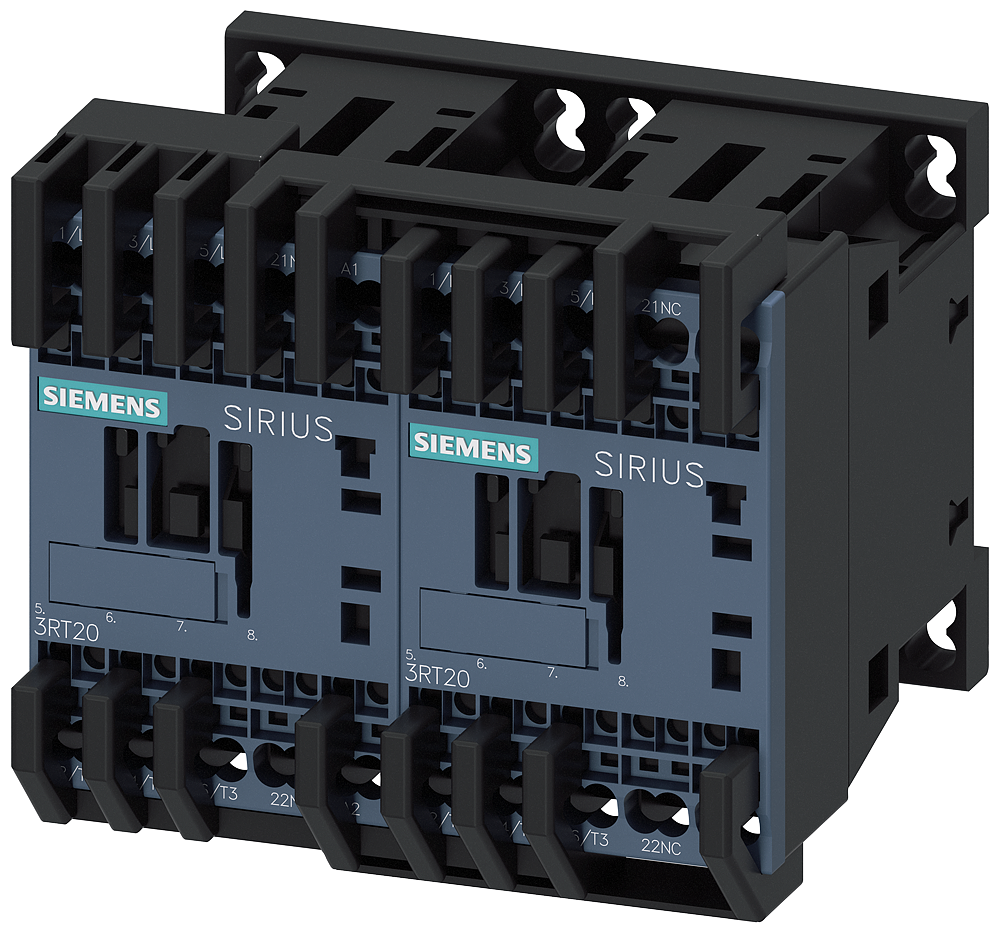

Siemens SIRIUS Reversing contactor assembly, AC-3E/AC-3, 16 A, 7.5 kW / 400 V, 3-Pole, 230 V AC, 50/60 Hz, spring-loaded terminal, electrical and mechanical interlock

Siemens 3RA2318-8XB30-2AP0 Reversing switch 7.5KW 230V AC50/60Hz S00 Spring terminals.

Manufacturer part number (MPN)

3RA2318-8XB30-2AP0

EAN / GTIN

4011209836037

Sales unit

pcs

Product type designation

3RA23

Manufacturer's article number — 1 of the supplied contactor

3RT2018-2AP02

Manufacturer's article number — 2 of the supplied contactor

3RT2018-2AP02

Size of contactor

S00

Shock resistance at rectangular impulse — at AC

7,3 g / 5 ms, 4,7 g / 10 ms

Shock resistance at rectangular impulse — at DC

7.3 g / 5 ms, 4.7 g / 10 ms

Shock resistance with its pulse — at AC

11,4 g / 5 ms, 7,3 g / 10 ms

Shock resistance with its pulse — at DC

11,4 g / 5 ms, 7,3g / 10 ms

Mechanical service life (operating cycles) — of contactor typical

10 000 000

Mechanical service life (operating cycles) — of the contactor with added auxiliary switch block typical

10 000 000

General technical data — Net Weight

0.591 kg

Installation altitude at height above sea level maximum

2 000 m

Ambient temperature — during operation

-25 ... +60 °C

Ambient temperature — during storage

-55 ... +80 °C

Number of poles for main current circuit

3

Number of NO contacts for main contacts

3

Number of NC contacts for main contacts

0

Operating voltage — at AC-3 rated value maximum

690 V

Operating voltage — at AC-3e rated value maximum

690 V

At AC-3 — at 400 V rated value

16 A

At AC-3 — at 500 V rated value

12.4 A

At AC-3 — at 690 V rated value

8.9 A

At AC-3e — at 400 V rated value

16 A

At AC-3e — at 500 V rated value

12.4 A

At AC-3e — at 690 V rated value

8.9 A

At AC-3e — at AC-4 at 400 V rated value

5.5 kW

Operating frequency — at AC-3 maximum

750 1/h

Operating frequency — at AC-3e maximum

750 1/h

Control supply voltage 1 at AC — at 50 Hz rated value

230 V

Control supply voltage 1 at AC — at 60 Hz rated value

230 V

Operating range factor control supply voltage rated value of magnet coil at AC — at 50 Hz

0.8 ... 1.1

Operating range factor control supply voltage rated value of magnet coil at AC — at 60 Hz

0.85 ... 1.1

Apparent pick-up power of magnet coil at AC — at 50 Hz

37 VA

Inductive power factor with closing power of the coil — at 50 Hz

0.8

Apparent holding power of magnet coil at AC — at 50 Hz

5.7 VA

Inductive power factor with the holding power of the coil — at 50 Hz

0.28

Contact reliability of auxiliary contacts

< 1 error per 100 million operating cycles

Full-load current (FLA) for 3-phase AC motor — at 480 V rated value

14 A

Full-load current (FLA) for 3-phase AC motor — at 600 V rated value

11 A

Yielded mechanical performance [hp] for 3-phase AC motor — at 200/208 V rated value

3 hp

Yielded mechanical performance [hp] for 3-phase AC motor — at 220/230 V rated value

5 hp

Yielded mechanical performance [hp] for 3-phase AC motor — at 460/480 V rated value

10 hp

Yielded mechanical performance [hp] for 3-phase AC motor — at 575/600 V rated value

10 hp

Contact rating of auxiliary contacts according to UL

A600 / Q600

For short-circuit protection of the main circuit — with type of coordination 1 required

gG NH 3NA, DIAZED 5SB, NEOZED 5SE: 50 A

For short-circuit protection of the main circuit — with type of coordination 2 required

gG NH 3NA, DIAZED 5SB, NEOZED 5SE: 25 A

For short-circuit protection of the main circuit — for short-circuit protection of the auxiliary switch required

fuse gG: 10 A

Mounting position

+/-180° rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5° on vertical mounting surface

Fastening method

screw and snap-on mounting onto 35 mm DIN rail

Installation/ mounting/ dimensions — height

84 mm

Installation/ mounting/ dimensions — width

90 mm

Installation/ mounting/ dimensions — depth

83 mm

With side-by-side mounting — forwards

6 mm

With side-by-side mounting — upwards

6 mm

With side-by-side mounting — downwards

6 mm

With side-by-side mounting — at the side

6 mm

For grounded parts — forwards

6 mm

For grounded parts — upwards

6 mm

For grounded parts — at the side

6 mm

For grounded parts — downwards

6 mm

For live parts — forwards

6 mm

For live parts — upwards

6 mm

Type of connectable conductor cross-sections for main contacts — solid

2x (0.5 ... 4 mm²)

Type of connectable conductor cross-sections for main contacts — solid or stranded

2x (0,5 ... 4 mm²)

Type of connectable conductor cross-sections for main contacts — finely stranded with core end processing

2x (0.5 ... 2.5 mm²)

Type of connectable conductor cross-sections for main contacts — finely stranded without core end processing

2x (0.5 ... 2.5 mm²)

For auxiliary contacts — solid or stranded

2x (0.5 ... 2.5 mm²)

For auxiliary contacts — finely stranded with core end processing

2x (0.5 ... 1.5 mm²)

For auxiliary contacts — finely stranded without core end processing

2x (0.5 ... 1.5 mm²)

Width

90 mm

Function

Reversing contactor

Height

84 mm

Depth

83 mm

Rated operation power at AC-3, 400 V

7.5 kW

Number of normally open contacts as main contact

3

Rated operation current Ie at AC-3, 400 V

16 A

Degree of protection (IP)

IP20

Type of electrical connection of main circuit

Spring clamp connection

Voltage type for actuating

AC

Rated operation power NEMA

10 kW

Country of origin

Germany

HS Code

8536.49
