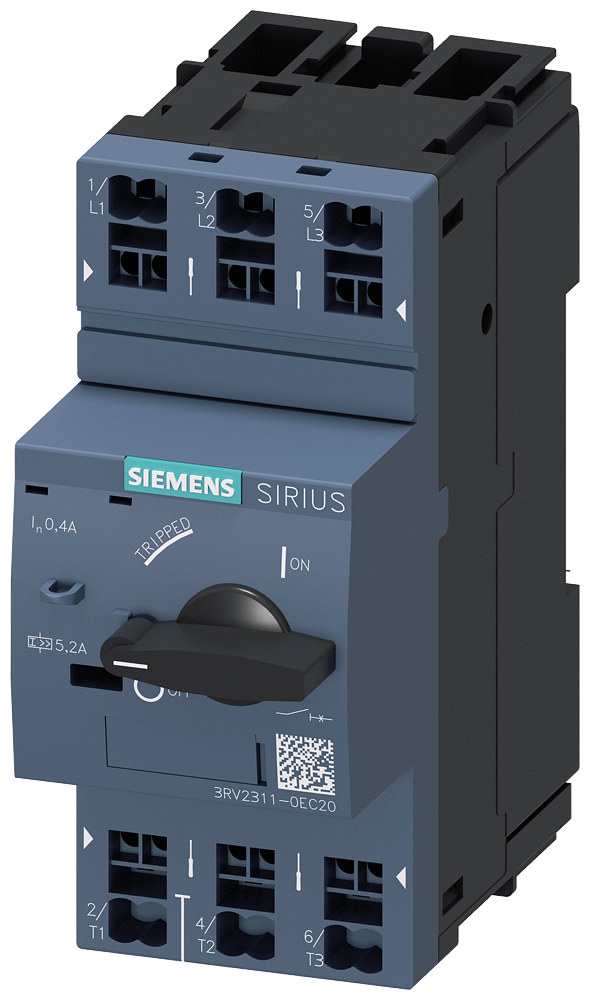

Siemens Circuit breaker 0 3RV2311-0EC20
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RV2311-0EC20 Circuit breaker 0.4A Spring terminals.
Technical Specifications
- Manufacturer part number (MPN)
- 3RV2311-0EC20
- EAN / GTIN
- 4011209766600
- HS code
- 8536.90
- Sales unit
- pcs
- Width
- 45 mm
- Height
- 106 mm
- Depth
- 97 mm
- Rated operation power at AC-3, 400 V
- 0.09 kW
- Rated permanent current Iu
- 0.4 A
- Number of poles
- 3
- Power loss
- 5.5 W
- Degree of protection (IP)
- IP20
- With thermal overload protection
- No
- Type of electrical connection of main circuit
- Spring clamp connection
- Switch off technique
- Magnetic
- Rated operation power at AC-3, 230 V
- 0.06 kW
- Rated short-circuit breaking capacity Icu at 400 V, AC
- 100 kA
- Device construction
- Built-in device fixed built-in technique
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011209766600
- SAP 1000097870
- Code 8895622
Product Documentation
More from Siemens
Siemens
Siemens ALPHA 400, wall-mount cabinet, IP55, safety class 1, H: 950 mm, W: 1300 mm, D: 210 mm, RAL 9016
8GK1123-4KA52
Siemens
Siemens Base Plate for Star-Delta Starter size S10-S10-S10
3RA1962-2F
Siemens
Siemens ALPHA 400, wall-mount cabinet, IP55, safety class 1, H: 950 mm, W: 300 mm, D: 210 mm, RAL 9016
8GK1123-4KA12
Siemens
Siemens SENTRON 3VA94030QG00 — Copper connecting bar, angled, prepared for cable lug, 3VA23 / 3VA24
Siemens
Siemens Residual current circuit breaker F 63/2, torque 2,5-3,0 Nm, conductor cross-section 1-35 MM2 5SV33163
Siemens
Siemens Load-break switch 32A,size 1, frame terminal for cable,6-Pole,1200VDC
3KD2260-2ME20-0
Siemens
Siemens Variable-frequency drive for pump- and fan drive 6SL3220-3YE38-0AP0
Siemens

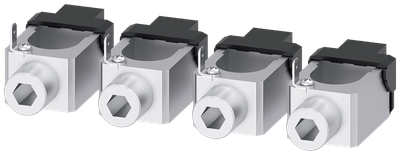

Siemens SENTRON 3VA9264-0JG12 — Cu/Al box terminal, 16–185 mm², 3VA20 / 3VA21 / 3VA22
