Siemens SIRIUS 3RT20 contactor, frame size S0 3RT2027-1AB04
Pricing
Request a quote
We reply within 24 hours
Product Description

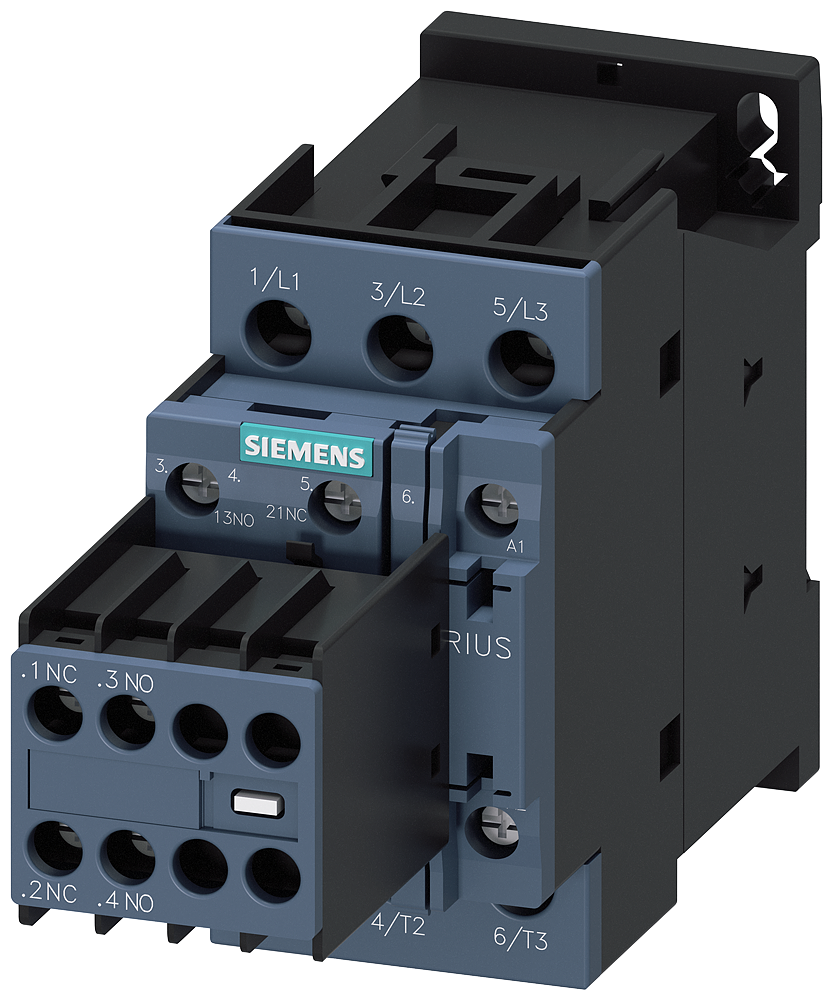

Siemens 3RT2027-1AB04 — SIRIUS 3RT20 contactor, frame size S0. AC-3 rated up to 38 A at 400 V, 3-pole. Contactor 32A, 24V AC 2NO+2NC.
Technical Specifications
- Manufacturer part number (MPN)
- 3RT2027-1AB04
- EAN / GTIN
- 4011209837621
- HS code
- 8536.90
- Sales unit
- pcs
- Frame size
- S0
- Width
- 45 mm
- Height
- 85 mm
- Depth
- 141 mm
- Rated operation power at AC-3, 400 V
- 15 kW
- Number of normally open contacts as main contact
- 3
- Number of auxiliary contacts as normally open contact
- 2
- Number of auxiliary contacts as normally closed contact
- 2
- Rated operation current Ie at AC-3, 400 V
- 32 A
- Rated operation current Ie at AC-1, 400 V
- 50 A
- Type of electrical connection of main circuit
- Screw connection
- Operating voltage AC 50 Hz
- 690 V
- Operating voltage AC 60 Hz
- 690 V
- Voltage type for actuating
- AC
- Rated operation current Ie at AC-4, 400 V
- 22 A
- Rated operation power at AC-4, 400 V
- 11 kW
- Rated operation power NEMA
- 20 kW
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011209837621
- SAP 1000097743
- Code 8591502
Product Documentation
More from Siemens
Siemens
Siemens SIRIUS 3RM1 Direct Online Starter (DOL), 0,1-0,5A, 0.12 kW / 400 V, 24V, Spring Terminals
3RM1001-2AA04
Siemens
Siemens SENTRON 3VA9257-0PK51 — Side-wall rotary operating mechanism with coupling plate, 3VA12
Siemens
Siemens SIRIUS 3RT20 contactor, frame size S0 3RT2025-1AF00
Siemens
Siemens Fuse switch-disconnector 3NP1153-1BC10
Siemens
Siemens SIRIUS Reversing Contactor Assembly, AC-3E/AC-3, 32 A, 15 kW / 400 V, 3-Pole, 24 V DC, Size S0, IO-Link, screw terminal, electrical and mechanical interlock, auxiliary contacts: 2
3RA2327-8XE30-1BB4
Siemens
Siemens Motor protection circuit breaker rated current 3
3RV2411-1FA10
Siemens
Siemens SIRIUS Twin pushbutton, 22 mm, round, metal, shiny, green, red, pushbuttons, flat and raised
3SU1050-3BB42-0AA0
Siemens
Siemens Cover IP40, H: 100 mm W: 600 mm
8PQ2010-6BA04
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 3RT2027-1AB04?
- 3RT2027-1AB04 can be ordered from cballast.com as a Siemens catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Siemens product?
- The manufacturer part number is 3RT2027-1AB04.
- What is the HS code for 3RT2027-1AB04?
- The customs tariff (HS) code for 3RT2027-1AB04 is 8536.90.
- Who manufactures 3RT2027-1AB04?
- 3RT2027-1AB04 is a Siemens product in the Electrical Components range.
- Is a datasheet available for 3RT2027-1AB04?
- Yes — the 3RT2027-1AB04 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 3RT2027-1AB04?
- The minimum order quantity is 1.
- Is 3RT2027-1AB04 available?
- Yes — 3RT2027-1AB04 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
