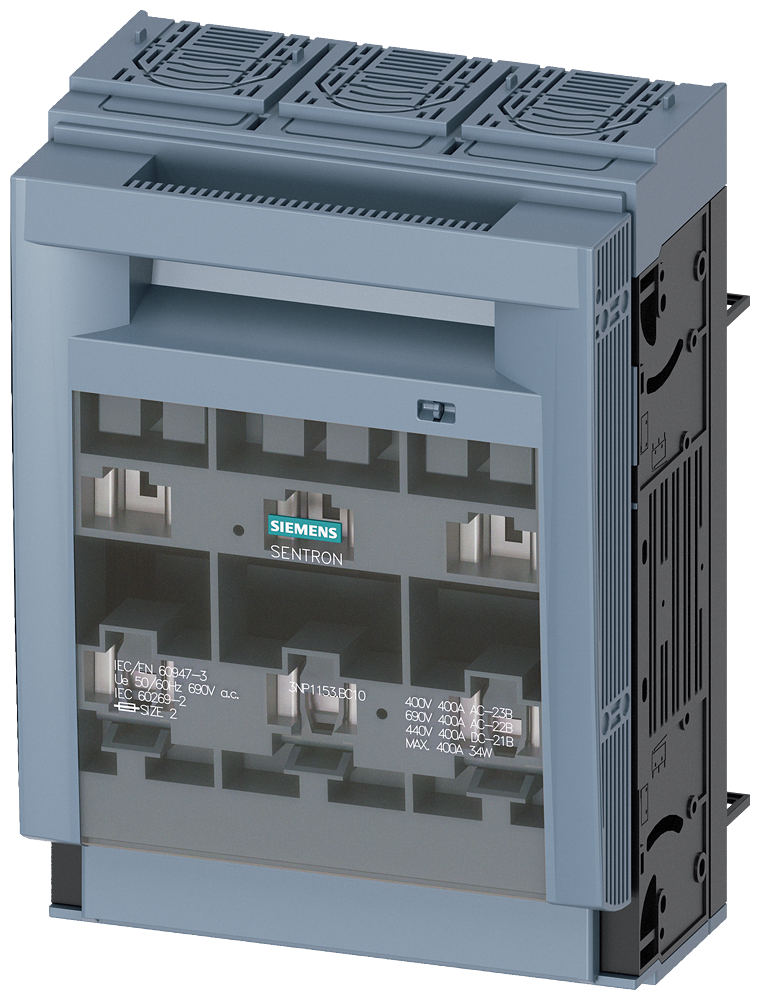

Siemens Fuse switch-disconnector 3NP1153-1BC10
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3NP1153-1BC10 Fuse switch-disconnector. 3-pole., NH2, 400A 60mm busbar system, mounting depth 32/70 mm, bolt connection.
Technical Specifications
- Manufacturer part number (MPN)
- 3NP1153-1BC10
- EAN / GTIN
- 4011209765603
- Sales unit
- pcs
- Rated permanent current Iu
- 400 A
- Number of poles
- 3
- Conditioned rated short-circuit current Iq
- 80 kA
- Degree of protection (IP), front side
- IP40
- Suitable for fuses
- NH1, NH2
- Motor drive integrated
- No
- Type of electrical connection of main circuit
- Rail connection
- Version as emergency stop installation
- No
- Type of control element
- Cover grip
- Version as main switch
- No
- Version as safety switch
- Yes
- Suitable for floor mounting
- No
- Suitable for front mounting
- No
- Suitable for busbar mounting
- Yes
- Max. rated operation voltage Ue AC
- 690 V
- With error protection
- No
- Motor drive optional
- No
- Position control element
- Front side
- Equipped with connectors
- No
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8536.20
Cross References
- EAN 4011209765603
- SAP 1000334079
- Code 8942619
Product Documentation
