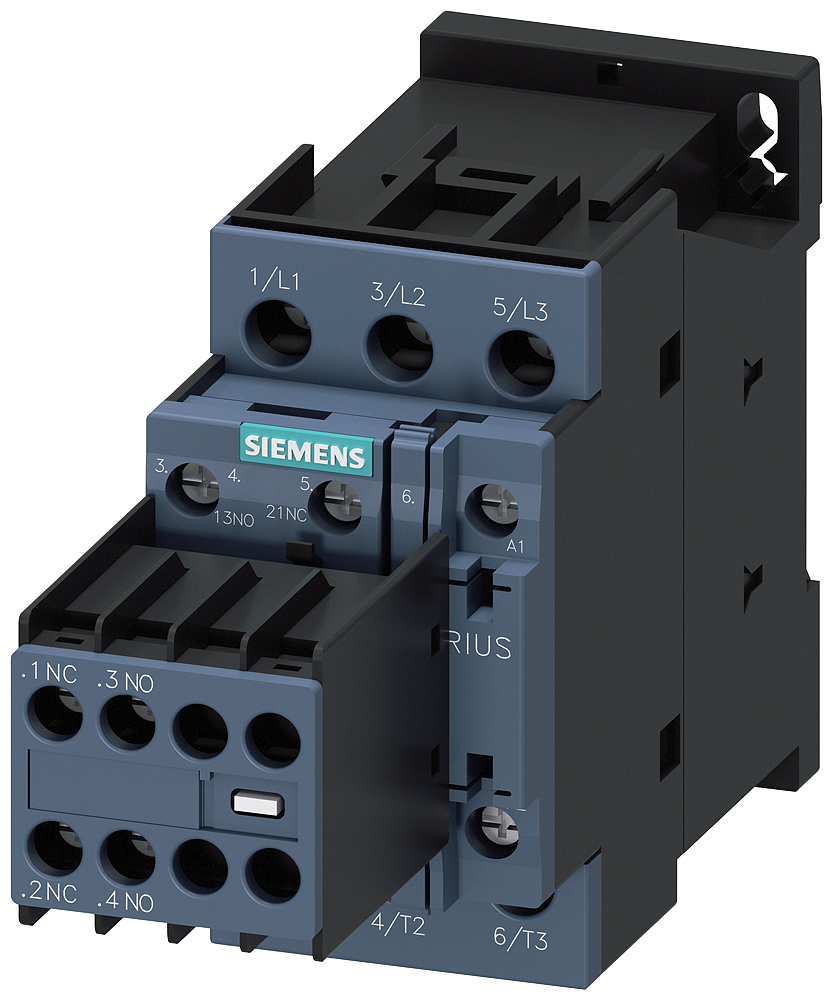

Siemens SIRIUS 3RT20 contactor, frame size S0 3RT2024-1AL24
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RT2024-1AL24 — SIRIUS 3RT20 contactor, frame size S0. AC-3 rated up to 38 A at 400 V, 3-pole. Contactor 12,5A,230V AC 2NO+2NC.
Technical Specifications
- Manufacturer part number (MPN)
- 3RT2024-1AL24
- EAN / GTIN
- 4011209837010
- HS code
- 8536.90
- Sales unit
- pcs
- Frame size
- S0
- Width
- 45 mm
- Height
- 85 mm
- Depth
- 141 mm
- Rated operation power at AC-3, 400 V
- 5.5 kW
- Number of normally open contacts as main contact
- 3
- Number of auxiliary contacts as normally open contact
- 2
- Number of auxiliary contacts as normally closed contact
- 2
- Rated operation current Ie at AC-3, 400 V
- 12 A
- Rated operation current Ie at AC-1, 400 V
- 40 A
- Type of electrical connection of main circuit
- Screw connection
- Operating voltage AC 50 Hz
- 690 V
- Operating voltage AC 60 Hz
- 690 V
- Voltage type for actuating
- AC
- Rated operation current Ie at AC-4, 400 V
- 12.5 A
- Rated operation power at AC-4, 400 V
- 5.5 kW
- Rated operation power NEMA
- 8 kW
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011209837010
- SAP 1000097723
- Code 8939633
Product Documentation
More from Siemens
Siemens
Siemens 8PQ1204-6BA01
Siemens
Siemens SITRANS pressure transmitter 7MF1565-5BG00-1AA1
Siemens
Siemens SENTRON 3VA9467-0PK13 — Side-wall rotary operating mechanism, 3VA23 / 3VA24
Siemens
Siemens SENTRON 5SY8208-8 Miniature Circuit Breaker 2-Pole D8A 25KA
Siemens
Siemens MCCB 3VA11 25kA 4-Pole TM210 Fixed Thermal 40A Bolt-Connection
3VA1140-3GD42-0AA0
Siemens
Siemens ALPHA 400, wall-mount cabinet, IP43, safety class 2, H: 800 mm, W: 800 mm, D: 210 mm, RAL 9016
8GK1132-3KA32
Siemens
Siemens SIRIUS 3RV20 motor protection circuit breaker, frame size S00 3RV2111-0CA10
Siemens
Siemens SENTRON 3KD Switch-Disconnector 3KD3430-2NE20-0, 160 A, 3-Pole, Front Operated Centre, with Rotary Handle
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 3RT2024-1AL24?
- 3RT2024-1AL24 can be ordered from cballast.com as a Siemens catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Siemens product?
- The manufacturer part number is 3RT2024-1AL24.
- What is the HS code for 3RT2024-1AL24?
- The customs tariff (HS) code for 3RT2024-1AL24 is 8536.90.
- Who manufactures 3RT2024-1AL24?
- 3RT2024-1AL24 is a Siemens product in the Electrical Components range.
- Is a datasheet available for 3RT2024-1AL24?
- Yes — the 3RT2024-1AL24 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 3RT2024-1AL24?
- The minimum order quantity is 1.
- Is 3RT2024-1AL24 available?
- Yes — 3RT2024-1AL24 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
