Siemens SIRIUS 3RT20 contactor, frame size S00 3RT2018-2BB42
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RT2018-2BB42 — SIRIUS 3RT20 contactor, frame size S00. AC-3 rated up to 12 A at 400 V, 3-pole, screw or spring-cage terminals depending on -1A / -1B suffix. Contactor 16A, 24V DC 1NC Spring terminals.
Technical Specifications
- Manufacturer part number (MPN)
- 3RT2018-2BB42
- EAN / GTIN
- 4011209785595
- HS code
- 8536.90
- Sales unit
- pcs
- Width
- 45 mm
- Height
- 70 mm
- Depth
- 73 mm
- Rated operation power at AC-3, 400 V
- 7.5 kW
- Number of normally open contacts as main contact
- 3
- Number of auxiliary contacts as normally closed contact
- 1
- Rated operation current Ie at AC-3, 400 V
- 16 A
- Rated operation current Ie at AC-1, 400 V
- 22 A
- Type of electrical connection of main circuit
- Spring clamp connection
- Operating voltage AC 50 Hz
- 690 V
- Operating voltage AC 60 Hz
- 690 V
- Voltage type for actuating
- DC
- Rated operation current Ie at AC-4, 400 V
- 11.5 A
- Rated operation power at AC-4, 400 V
- 5.5 kW
- Rated operation power NEMA
- 10 kW
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011209785595
- SAP 1000097713
- Code 8591449
Product Documentation
More from Siemens
Siemens
Siemens Motor protection circuit breaker S00, for CLASS10, automatic release 3RV1011-0GA10
Siemens
Siemens Contactor with 2 NO kont 5TT50320
Siemens
Siemens 8WD4200-1AD
Siemens
Siemens Variable-frequency drive for pump- and fan drive 6SL3220-3YE38-0AB0
Siemens
Siemens SIRIUS Load feeder fuseless, Reversing duty 400 V AC, Size S00 4.50...6.30 A 230 V AC Spring-type terminal for installation on standard mounting rail Type of coordination 1, Iq = 150 kA 1 NC (contactor)
3RA2210-1GE15-2AP0
Siemens
Siemens Alpha 1600 Din Adapter Set for Row Cabinet H=2000 B=850 D=600
8GK9400-0KK37
Siemens
Siemens 3RB3123-4RE0 SIRIUS 3RB3 Solid-State Overload Relay with Ground-Fault Detection — 0.1 – 0.4 A, Size S0, Spring-Loaded Terminals
Siemens

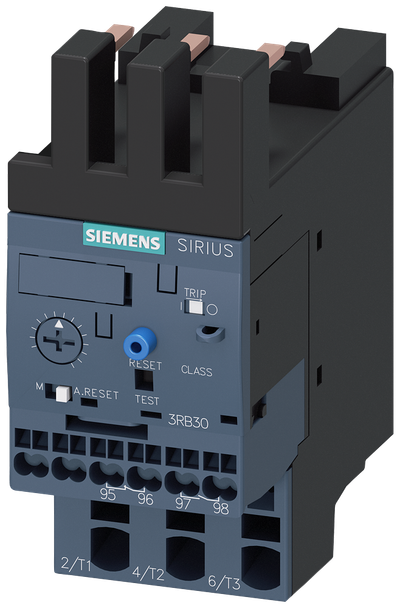

Siemens SIRIUS 3RB3 Electronic Overload Relay 0.32...1.25 A, Size S0, Class 10E, Main Spring-type, Aux Spring-type
