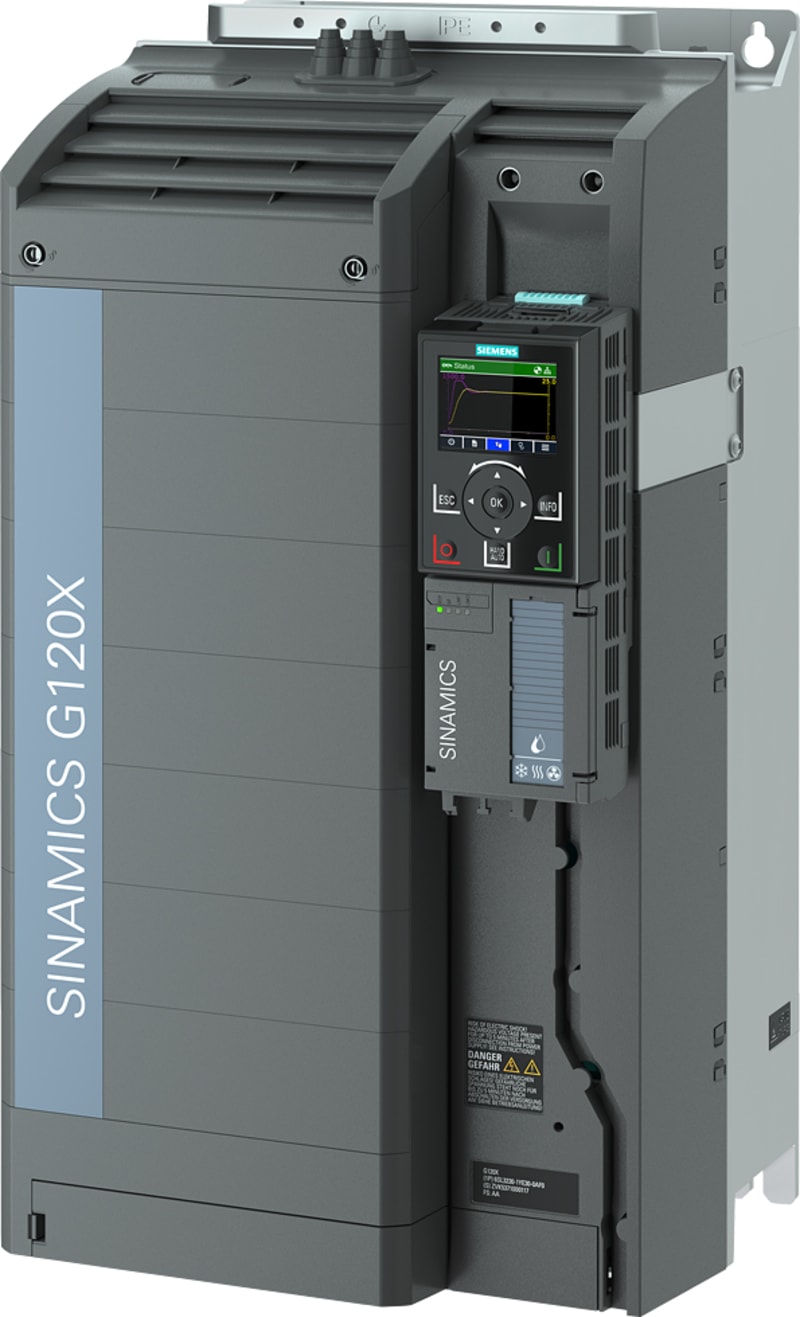

Siemens Variable-frequency drive for pump- and fan drive 6SL3220-3YE38-0AB0
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 6SL3220-3YE38-0AB0 Variable-frequency drive for pump- and fan drive.
Technical Specifications
- Manufacturer part number (MPN)
- 6SL3220-3YE38-0AB0
- EAN / GTIN
- 4042948688045
- HS code
- 8504.40
- Sales unit
- pcs
- Width
- 275 mm
- Height
- 551 mm
- Depth
- 239 mm
- Number of digital inputs
- 6
- Number of analogue inputs
- 2
- Number of analogue outputs
- 1
- Supporting protocol for LON
- No
- Number of HW-interfaces RS-232
- 1
- Number of HW-interfaces RS-485
- 1
- Number of HW-interfaces serial TTY
- 5
- Number of HW-interfaces other
- 6
- With optical interface
- No
- Supporting protocol for TCP/IP
- No
- Supporting protocol for ASI
- No
- Supporting protocol for PROFIBUS
- No
- Supporting protocol for CAN
- No
- Supporting protocol for INTERBUS
- No
- Supporting protocol for KNX
- No
- Supporting protocol for Modbus
- Yes
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- No
- Supporting protocol for SUCONET
- No
- Supporting protocol for other bus systems
- Yes
- Degree of protection (IP)
- IP20
- With PC connection
- No
- Supporting protocol for SERCOS
- No
- Supporting protocol for INTERBUS-Safety
- No
- Mains voltage
- 380–480 V
- Mains frequency
- 50/60 Hz
- 4-quadrant operation possible
- No
- Type of converter
- U converter
- Number of phases output
- 3
- Number of phases input
- 3
- Integrated breaking resistance
- No
- Application in industrial area permitted
- Yes
- Application in domestic- and commercial area permitted
- No
- Max. output frequency
- 550 Hz
- Max. output at linear load at rated output voltage
- 37 kW
- Max. output at quadratic load at rated output voltage
- 45 kW
- Relative symmetric net voltage tolerance
- -20 %
- Relative symmetric net frequency tolerance
- 5 %
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for EtherNet/IP
- No
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for PROFINET IO
- No
- Supporting protocol for PROFIsafe
- No
- Supporting protocol for SafetyBUS p
- No
- Nominal output current I2N
- 93 A
- Country of origin
- United Kingdom
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4042948688045
- SAP 1200459178
- Code 82520231
