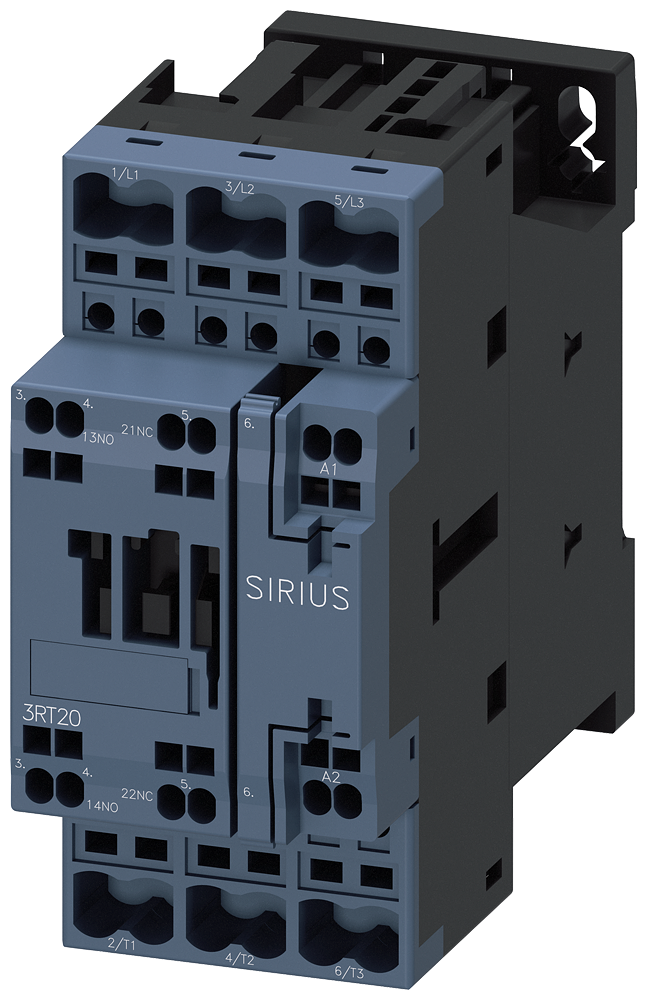

Siemens SIRIUS 3RT20 contactor, frame size S0 3RT2026-2AF00
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RT2026-2AF00 — SIRIUS 3RT20 contactor, frame size S0. AC-3 rated up to 38 A at 400 V, 3-pole. Contactor 11KW,1NO+1NC, AC110V S0 Spring terminals.
Technical Specifications
- Manufacturer part number (MPN)
- 3RT2026-2AF00
- EAN / GTIN
- 4011209832978
- HS code
- 8536.90
- Sales unit
- pcs
- Frame size
- S0
- Width
- 45 mm
- Height
- 102 mm
- Depth
- 97 mm
- Rated operation power at AC-3, 400 V
- 11 kW
- Number of normally open contacts as main contact
- 3
- Number of auxiliary contacts as normally open contact
- 1
- Number of auxiliary contacts as normally closed contact
- 1
- Rated operation current Ie at AC-3, 400 V
- 25 A
- Rated operation current Ie at AC-1, 400 V
- 40 A
- Type of electrical connection of main circuit
- Spring clamp connection
- Operating voltage AC 50 Hz
- 690 V
- Operating voltage AC 60 Hz
- 690 V
- Voltage type for actuating
- AC
- Rated operation current Ie at AC-4, 400 V
- 15.5 A
- Rated operation power at AC-4, 400 V
- 7.5 kW
- Rated operation power NEMA
- 15 kW
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011209832978
- SAP 1000270961
- Code 8762497
Product Documentation
