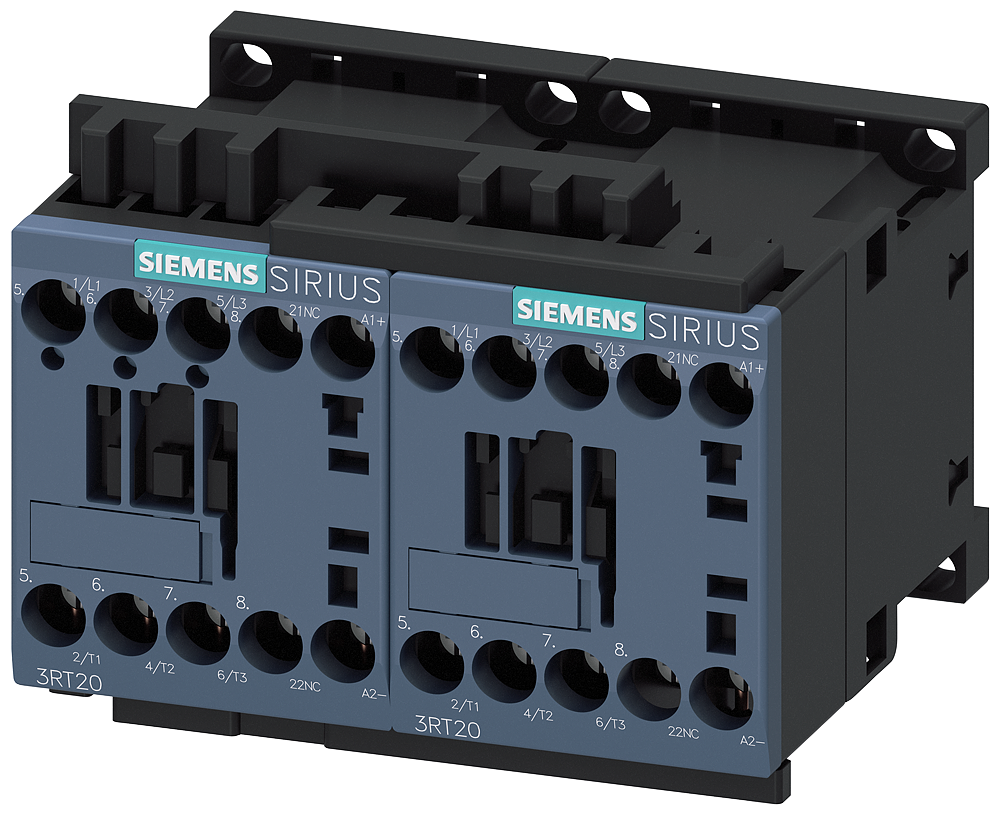

Siemens SIRIUS Reversing contactor assembly, AC-3E/AC-3, 16 A, 7.5 kW / 400 V, 3-Pole, 24 V DC, screw terminal, electrical and mechanical interlock, with voltage tap for 3RA27

Siemens 3RA2318-8XE30-1BB4 Reversing switch IO-Link 7.5KW,24V DC, S00.

Manufacturer part number (MPN)

3RA2318-8XE30-1BB4

EAN / GTIN

4011209836648

Sales unit

pcs

Product brand name

SIRIUS

Product designation

Reversing contactor assembly

Product type designation

3RA23

Manufacturer's article number — 1 of the supplied contactor

3RT2018-1BB42-0CC0

Manufacturer's article number — 2 of the supplied contactor

3RT2018-1BB42

Manufacturer's article number — of the supplied RH assembly kit

3RA2913-2AA1

Size of contactor

S00

Product extension auxiliary switch

Yes

Shock resistance at rectangular impulse — at AC

7,3 g / 5 ms, 4,7 g / 10 ms

Shock resistance at rectangular impulse — at DC

7.3 g / 5 ms, 4.7 g / 10 ms

Shock resistance with its pulse — at AC

11,4 g / 5 ms, 7,3 g / 10 ms

Shock resistance with its pulse — at DC

11,4 g / 5 ms, 7,3g / 10 ms

Mechanical service life (operating cycles) — of contactor typical

10 000 000

Mechanical service life (operating cycles) — of the contactor with added auxiliary switch block typical

10 000 000

Reference code according to IEC 81346-2

Q

Installation altitude at height above sea level maximum

2 000 m

Ambient temperature — during operation

-25 ... +60 °C

Ambient temperature — during storage

-55 ... +80 °C

Number of poles for main current circuit

3

Number of NO contacts for main contacts

3

Number of NC contacts for main contacts

0

Operating voltage — at AC-3 rated value maximum

690 V

Operating voltage — at AC-3e rated value maximum

690 V

At AC-3 — at 400 V rated value

16 A

At AC-3 — at 500 V rated value

12.4 A

At AC-3 — at 690 V rated value

8.9 A

At AC-3e — at 400 V rated value

16 A

At AC-3e — at 500 V rated value

12.4 A

At AC-3e — at 690 V rated value

8.9 A

At AC-3e — at AC-4 at 400 V rated value

5.5 kW

Operating frequency — at AC-3 maximum

750 1/h

Operating frequency — at AC-3e maximum

750 1/h

Type of voltage of the control supply voltage

DC

Control supply voltage 1 at DC rated value

24 V

Closing power of magnet coil at DC

4 W

Holding power of magnet coil at DC

4 W

Contact reliability of auxiliary contacts

< 1 error per 100 million operating cycles

Full-load current (FLA) for 3-phase AC motor — at 480 V rated value

14 A

Full-load current (FLA) for 3-phase AC motor — at 600 V rated value

11 A

Yielded mechanical performance [hp] for 3-phase AC motor — at 200/208 V rated value

3 hp

Yielded mechanical performance [hp] for 3-phase AC motor — at 220/230 V rated value

5 hp

Yielded mechanical performance [hp] for 3-phase AC motor — at 460/480 V rated value

10 hp

Yielded mechanical performance [hp] for 3-phase AC motor — at 575/600 V rated value

10 hp

Contact rating of auxiliary contacts according to UL

A600 / Q600

For short-circuit protection of the main circuit — with type of coordination 1 required

gG NH 3NA, DIAZED 5SB, NEOZED 5SE: 50 A

For short-circuit protection of the main circuit — with type of coordination 2 required

gG NH 3NA, DIAZED 5SB, NEOZED 5SE: 25 A

For short-circuit protection of the main circuit — for short-circuit protection of the auxiliary switch required

fuse gG: 10 A

Mounting position

+/-180° rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5° on vertical mounting surface

Fastening method

screw and snap-on mounting onto 35 mm DIN rail

Installation/ mounting/ dimensions — height

68 mm

Installation/ mounting/ dimensions — width

90 mm

Installation/ mounting/ dimensions — depth

73 mm

With side-by-side mounting — forwards

6 mm

With side-by-side mounting — backwards

0 mm

With side-by-side mounting — upwards

6 mm

With side-by-side mounting — downwards

6 mm

With side-by-side mounting — at the side

6 mm

For grounded parts — forwards

6 mm

For grounded parts — backwards

0 mm

For grounded parts — upwards

6 mm

For grounded parts — at the side

6 mm

For grounded parts — downwards

6 mm

For live parts — forwards

6 mm

For live parts — backwards

0 mm

For live parts — upwards

6 mm

For live parts — downwards

6 mm

For live parts — at the side

6 mm

Type of electrical connection — for main current circuit

screw-type terminals

Type of electrical connection — for auxiliary and control circuit

screw-type terminals

Type of electrical connection — at contactor for auxiliary contacts

Screw-type terminals

Type of electrical connection — of magnet coil

screw terminal

Type of connectable conductor cross-sections for main contacts — solid

2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), 2x 4 mm²

Type of connectable conductor cross-sections for main contacts — solid or stranded

2x (0,5 ... 1,5 mm²), 2x (0,75 ... 2,5 mm²), 2x (0,5 ... 4 mm²)

Type of connectable conductor cross-sections for main contacts — finely stranded with core end processing

2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)

For auxiliary contacts — solid or stranded

2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)

For auxiliary contacts — finely stranded with core end processing

2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)

For auxiliary contacts — for AWG cables for auxiliary contacts

2x (20 ... 16), 2x (18 ... 14)

Product function suitable for safety function

Yes

Protection class IP on the front according to IEC 60529

IP20

Touch protection on the front according to IEC 60529

finger-safe, for vertical contact from the front

Product function bus communication

Yes

Protocol is supported AS-Interface protocol

No

Product function control circuit interface with IO link

No

Width

90 mm

Function

Reversing contactor

Height

68 mm

Depth

73 mm

Rated operation power at AC-3, 400 V

7.5 kW

Number of normally open contacts as main contact

3

Rated operation current Ie at AC-3, 400 V

16 A

Degree of protection (IP)

IP20

Type of electrical connection of main circuit

Screw connection

Voltage type for actuating

DC

Rated operation power NEMA

7.3549875 kW

Country of origin

Germany

HS Code

8536.49
