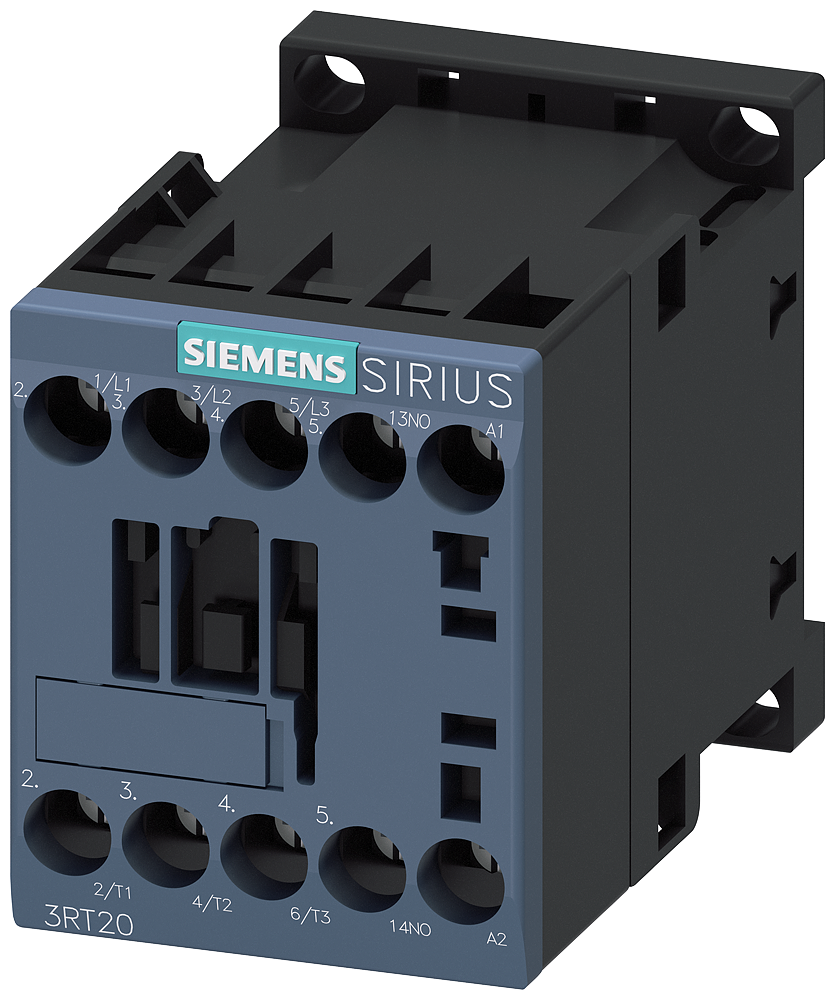

Siemens SIRIUS 3RT20 contactor, frame size S00 3RT2018-1AF01
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RT2018-1AF01 — SIRIUS 3RT20 contactor, frame size S00. AC-3 rated up to 12 A at 400 V, 3-pole, screw or spring-cage terminals depending on -1A / -1B suffix. Contactor 7.5KW,1NO, AC110V50/60 S00.
Technical Specifications
- Manufacturer part number (MPN)
- 3RT2018-1AF01
- EAN / GTIN
- 4011209827783
- HS code
- 8536.90
- Sales unit
- pcs
- Width
- 45 mm
- Height
- 58 mm
- Depth
- 73 mm
- Rated operation power at AC-3, 400 V
- 7.5 kW
- Number of normally open contacts as main contact
- 3
- Number of auxiliary contacts as normally open contact
- 1
- Rated operation current Ie at AC-3, 400 V
- 16 A
- Rated operation current Ie at AC-1, 400 V
- 22 A
- Type of electrical connection of main circuit
- Screw connection
- Operating voltage AC 50 Hz
- 690 V
- Operating voltage AC 60 Hz
- 690 V
- Voltage type for actuating
- AC
- Rated operation current Ie at AC-4, 400 V
- 11.5 A
- Rated operation power at AC-4, 400 V
- 5.5 kW
- Rated operation power NEMA
- 10 kW
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011209827783
- SAP 1000270672
- Code 81172550
Product Documentation
